Table 116: MX960 High-Capacity DC Power Supply LEDs
LEDsDIP
Switch
PositionConnected Inputs PS FAILDC OKINP-1 OKINP-0 OK
OffGreenOffGreen0 (1
input)
INP0 connected, INP1 disconnected
OffGreenGreenOffINP0 disconnected, INP1 connected
OffGreenGreenGreenINP0 connected, INP1 connected
RedOffOffGreen1 (2
inputs)
INP0 connected, INP1 disconnected
RedOffGreenOffINP0 disconnected, INP1 connected
OffGreenGreenGreenINP0 connected, INP1 connected
18. Repeat steps 1-17 for installing power supplies in slots 1, 2, and 3, where present.

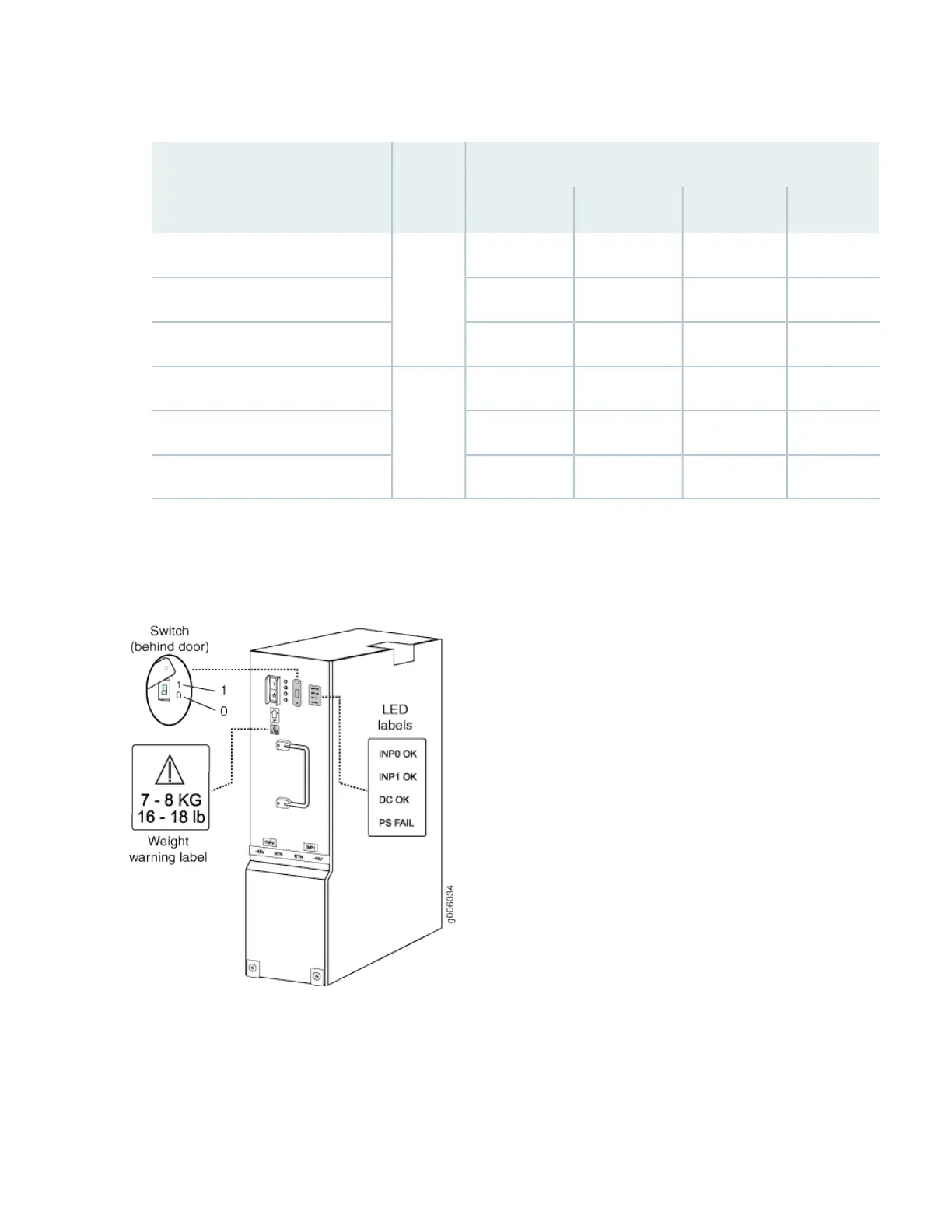

Figure 234: MX960 DC High-Capacity Power Supply Front View
19. Install a blank panel over the power distribution modules, if available.
