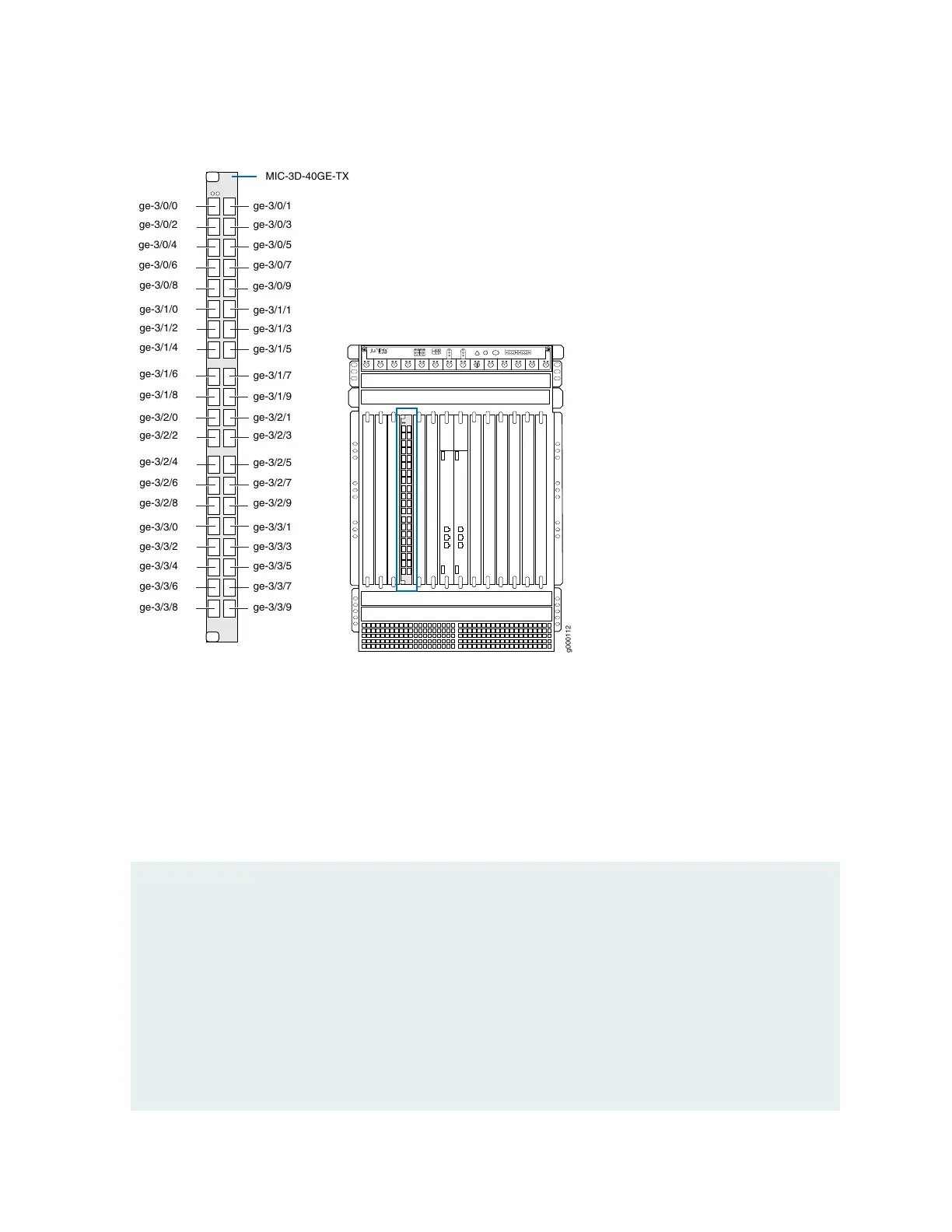

Figure 20: MX960 DPC Interface Port Mapping
0 1 2 3 4
0 1 2 3
5 0 1 2 6 7 8 9 10 11
g000112
MIC-3D-40GE-TX
ge-3/0/1ge-3/0/0
ge-3/0/7
ge-3/0/4
ge-3/0/8
ge-3/0/9
ge-3/1/0
ge-3/1/5
ge-3/1/4
ge-3/1/9
ge-3/1/8
ge-3/0/3
ge-3/0/2
ge-3/0/5
ge-3/0/6
ge-3/1/3
ge-3/1/1
ge-3/1/2
ge-3/1/7
ge-3/1/6
ge-3/3/1ge-3/3/0
ge-3/3/5
ge-3/3/4
ge-3/3/9ge-3/3/8
ge-3/3/3ge-3/3/2
ge-3/3/7ge-3/3/6
ge-3/2/1
ge-3/2/0
ge-3/2/5
ge-3/2/9
ge-3/2/4
ge-3/2/8
ge-3/2/3
ge-3/2/2
ge-3/2/7
ge-3/2/6
The DPC contains four logical PICs, numbered PIC 0 through PIC 3 in the CLI. Each logical PIC contains
10 ports numbered 0 through 9.
The show chassis hardware command output displays a 40-port Gigabit Ethernet DPC with SFP
(DPCE-R-40GE-SFP) installed in DPC slot 3. The DPC is shown as FPC 3 and the DPC’s four logical PICs
— 10x 1GE(LAN) — are shown as PIC 0 through PIC 3.
user@host> show chassis hardware
...
FPC 3 REV 07 750-018122 KB8222 DPCE 40x 1GE R
CPU REV 06 710-013713 KA9010 DPC PMB
PIC 0 BUILTIN BUILTIN 10x 1GE(LAN)
Xcvr 0 REV 01 740-011782 PCH2NU4 SFP-SX
Xcvr 1 REV 01 740-011782 PCH2P4R SFP-SX
Xcvr 2 REV 01 740-011782 PCH2NYL SFP-SX
Xcvr 3 REV 01 740-011782 PCH2UW6 SFP-SX
Xcvr 4 REV 01 740-011782 PCH2P4N SFP-SX
71
