9.4 How to build a program
TT0984GB
Multiple program lines are
entered by the user forming
the last part of the program.
8
Continued

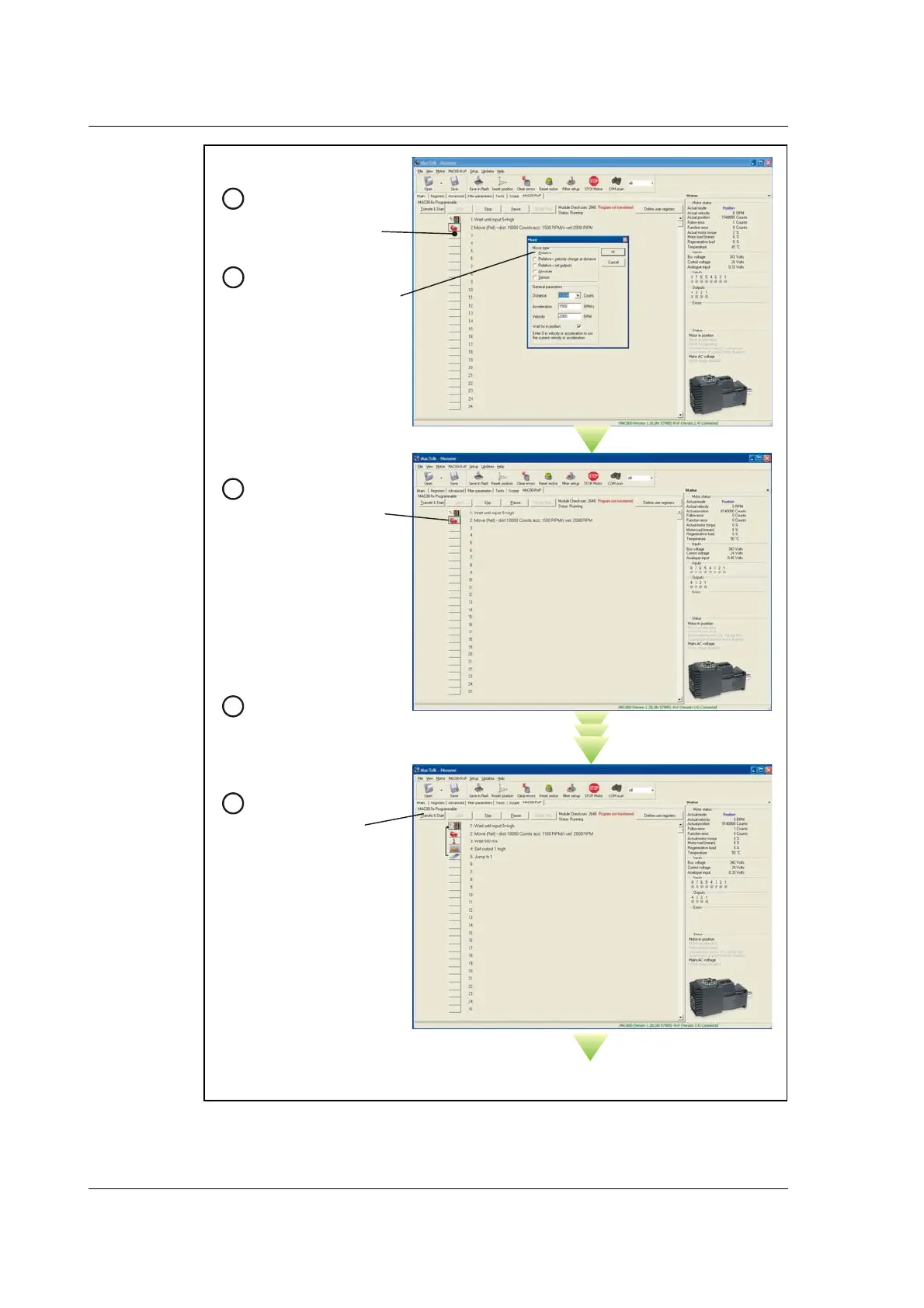

Press the second button to create
the second program line
Choose the movement type needed.
Relative: Move x counts forward with
reference to the actual position.
Absolute: Move to the x position with
reference to the zero search position.
5
6
The relative move command just
entered is converted into a program
line.
7
Now the program is finished.
Press the
button.
Now the program will be transfered
and stored permanently in the module.
The program will be executed
immidiately
“Transfer & Start”
9
