JVL Industri Elektronik A/S - User Manual - Integrated Stepper Motors MIS23x, 34x, 43x 41
2.11 How to connect MIS34x

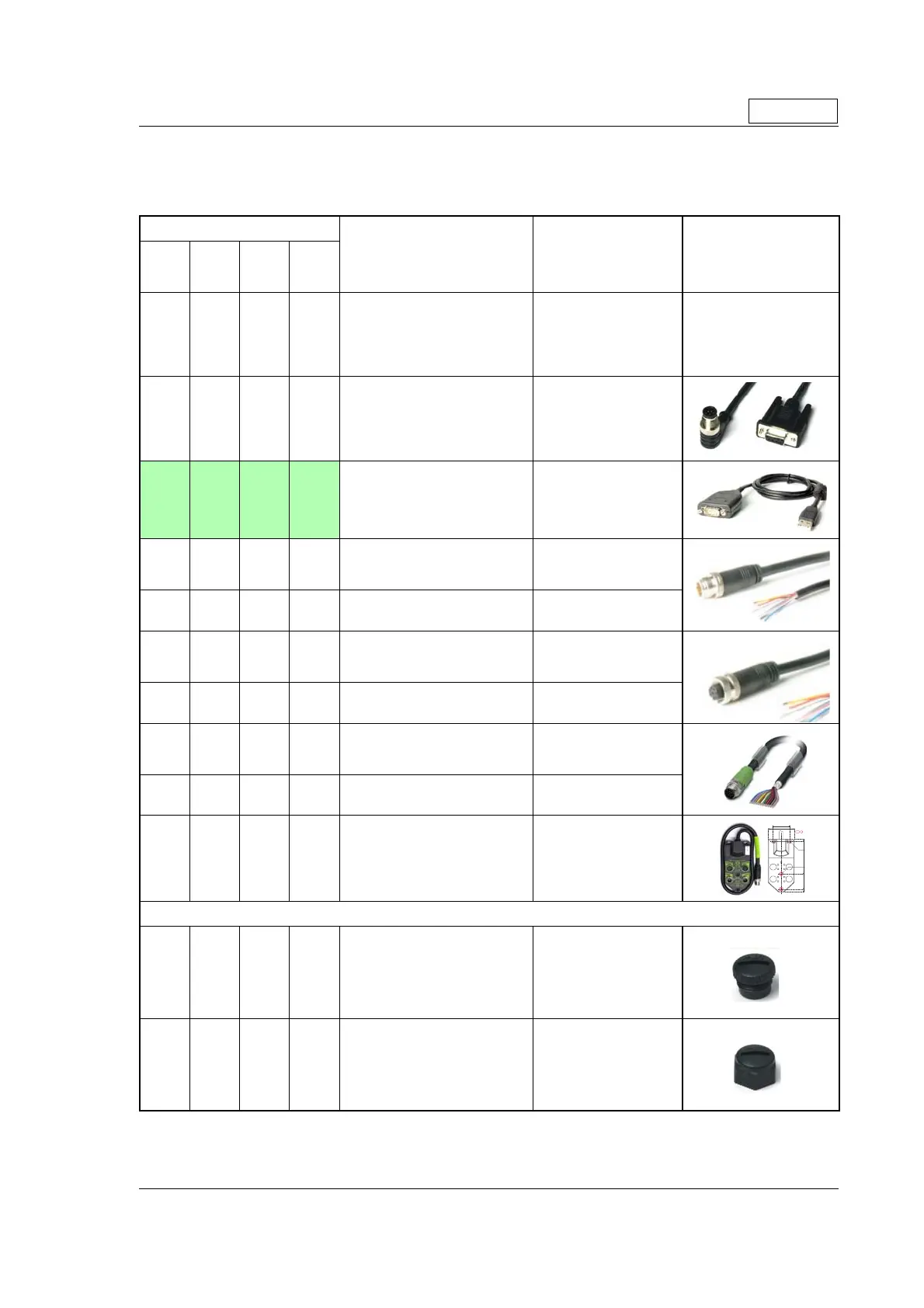

2.11.5 Cables for the MIS34xxxxQ9xxxx
The following cables equipped with M12 connector can be supplied by JVL.
MIS34x Connectors Description JVL Order no. Picture
“PWR”
5pin
Male
“CN2”
8pin
Female
“CN3”
8pin
Male
“CN4”
17pin
Female
X
Cable (Ø5.5mm) with M12 female
5-pin connector loose wire ends
0.35mm² (22AWG) and foil screen.
Length: 5m (197 inch)
WI1000-M12F5T05N
X
RS485 Interface cable. Connects
directly from the MIS motor to a
RS485 comport.
Length: 5m (197 inch)
RS485-M12-1-5-8
(x)
USB to RS485 Converter. To be
used if no RS485 COM port is avail
-
able. Use also RS485-M12-1-5-8
RS485-USB-ATC-820
X
Cable (Ø5.5mm) with M12 male
8-pin connector loose wire ends
0.35mm² (22AWG) and foil screen.
Length: 5m (197 inch)
WI1000-M12M8T05N
X
Same as above but 20m (787 inch)
WI1000-M12M8T20N
X
Cable with M12 female 8-pin
connector loose wire ends
0.22mm² (24AWG) and screen.
Length: 5m (197 inch)
WI1000-M12F8T05N
X
Same as above but 20m (787 inch)
WI1000-M12F8T20N
X
Cable with M12 male 17-pin
connector loose wire ends
0.22mm² (24AWG) and screen.
Length: 5m (197 inch)
WI1009-M12M17S05N
X
Same as above but 20m (787 inch)
WI1009-M12M17S20N
X
Junction box for splitting the 17 pin I/
O connector into 4 independant con-
nectors. Include also 9 LED’s for
monito-ring the I/O status and com
-
munication.
Cable length: 0,5m (20 inch)
PA0190
Protection caps. Optional if connector is not used to protect from dust / liquids.
X X
IP67 protection cap for M12
female connector.
WI1000-M12FCAP1
X X
IP67 protection cap for M12
male connector.
WI1000-M12MCAP1
Only MIS34x
TT2333-01GB
36.0mm [1.42 inch]
54.0mm [2.126 inch]
0
5.0mm
[0.197inch]
= Mounting holes
77.0mm
[3.031inch]
112. 0m m
[4.409inch]
2 x
Ø4/8mm
[Ø0.16/0.32inch]
2 x
Ø4x8mm
[Ø0.16x0.32inch]
118. 0m m
[4.646inch]
TT3088-01GB
