JVL Industri Elektronik A/S - User Manual - Integrated Stepper Motors MIS23x, 34x, 43x 47
2.11 How to connect MIS34x
2.11.9 Cables for the MIS34xxxxE6xxxx

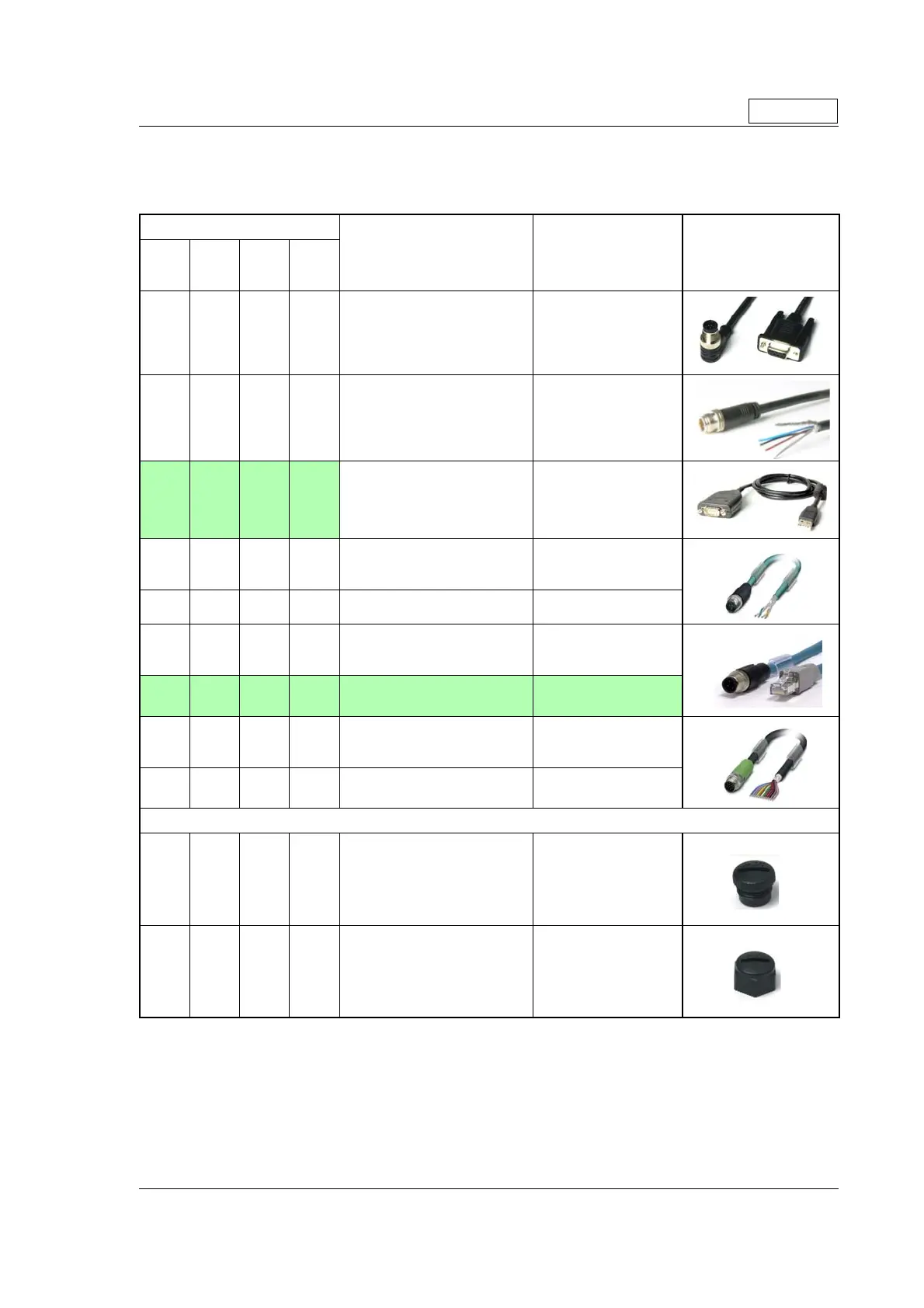

The following cables equipped with M12 connector can be supplied by JVL.
MIS34x Connectors Description JVL Order no. Picture
“PWR”
5pin
Male
“CN2”
5pin
Female
“CN3”
8pin
Female
“CN4”
17pin
Female
X
RS485 Interface cable. Connects
directly from The MIS motor to a
RS485 comport.
Length: 5m (197 inch)
RS485-M12-1-5-17S
X
Cable (Ø5.5mm) with M12 male
5-pin connector loose wire ends
0.35mm² (22AWG) and foil screen.
Length: 5m (197 inch)
WI1000-M12M5T05N
USB to RS485 Converter. To be
used if no RS485 COM port is avail
-
able.
RS485-USB-ATC-820
X X
Cable (Ø5.5mm) with M12 male D-
coded 4-pin connector loose wire
ends 0.35mm² (22AWG) and foil
screen. Length: 5m (197 inch)
WI1046-M12M4S05R
X X
Same as above but 15m (590 inch)
WI1046-M12M4S15R
X X
Cable (Ø5.5mm) with M12 male D-
coded 4-pin connector and RJ45
connector.
Length: 5m (197 inch)
WI1046-M12M4S05-
NRJ45
X
Cable with M12 male 17-pin
connector loose wire ends
0.22mm² (24AWG) and screen.
Length: 5m (197 inch)
WI1009-M12M17S05N
X
Same as above but 20m (787 inch)
WI1009-M12M17S20N
Protection caps. Optional if connector is not used to protect from dust / liquids.
X X X
IP67 protection cap for M12
female connector.
WI1000-M12FCAP1
X
IP67 protection cap for M12
male connector.
WI1000-M12MCAP1
Only MIS34x
TT2333-01GB
