ASSEMBLING THE WINDROWER
3. Activate the REEL UP switch (A) on the GSL to raise
the center-link until t he hook is above the attachmen t
pin on the header.
IMPORTAN T:
If the c enter-link is too low, it may conta ct th e
header as the windrower approaches the header
for hookup.

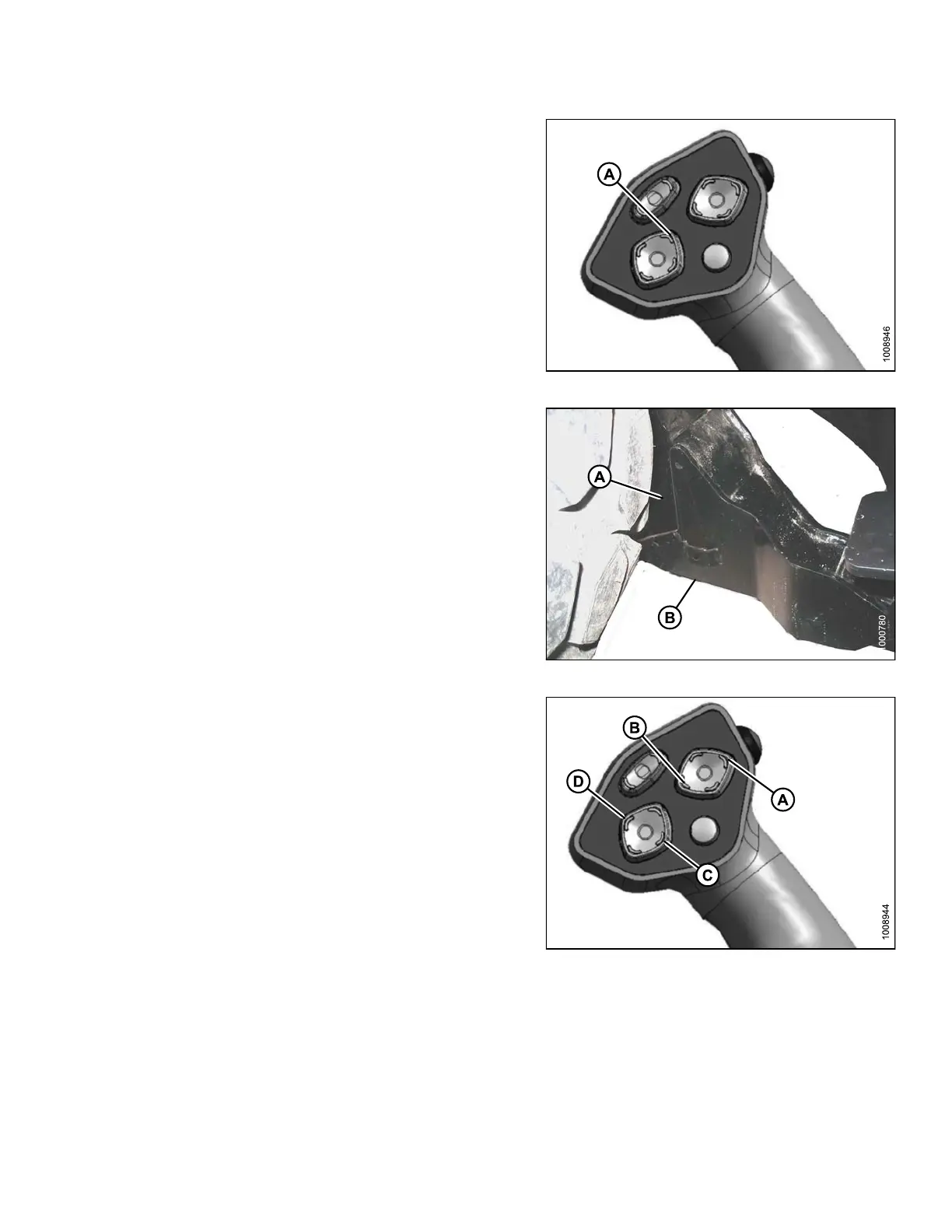

Figure 3.207: Ground Speed Lever
4. Drive the windrower slowly forward until the win drower
feet (A) enter the header boots (B). Continue driving
slowly forward until the feet engage the boots and the
header nudges forward.
Figure 3.208: Header Boot
5. Use the following GSL functions to position the
center-link hook above the header attachment pin:
• Reel u p (A) to raise the center-link
• Reel down (B) to lower the center-link
• Header tilt up (C) to retract the center-link
• Header tilt down (D) to extend the center-link
Figure 3.209: Ground Speed Lever
147962
11
7
Revision A
