ASSEMBLING THE W INDROWER

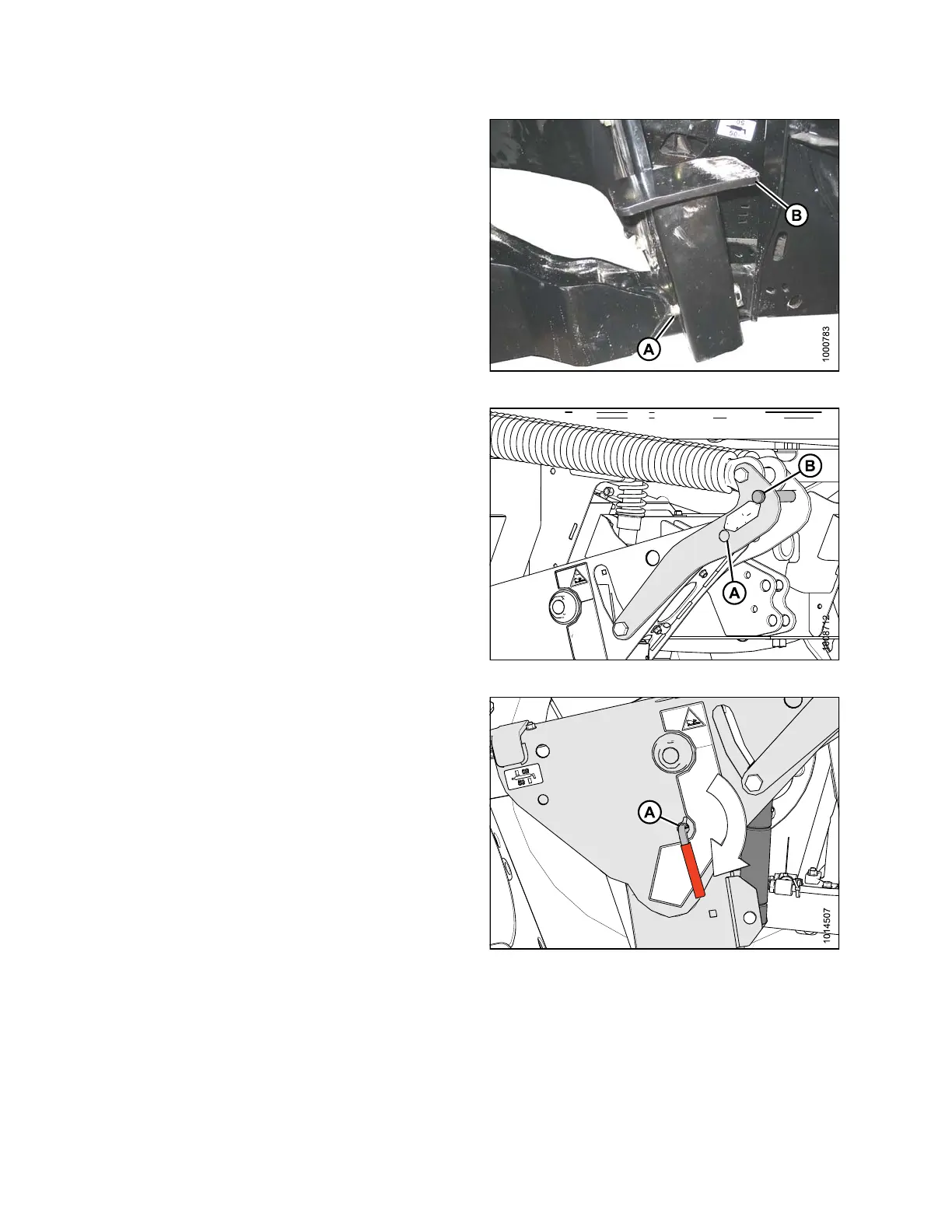

12. Remove lynch pin from clevis pin (A) in stand (B).
13. Hold stand (B) and remove pin (A).
14. Move s tand (B) to storage position by inverting and
relocating onto bracket as shown. Reinsert clevis
pin (A) and s ecure with lynch pin.
Figure 3.242: Header Stand
15. Remove cle vis pin from storage po sition (B) in link ag e
and insert into hole (A) to eng age float springs. Sec ure
with hairpin.
Figure 3.243: Header Float Linkage
16. Disengage safety prop by turning lever (A) downwards
to release and lower stop until lever locks into
vertical position.
17. Repeat for opposite safety prop.
Figure 3.244: Safety Prop
147962 130 Revision A
