ASSEMBLING THE W INDROWER
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight
box attached to the windrower, ensure the float
engagement pin is installed in storage position (B)
and NOT in engaged position (A).

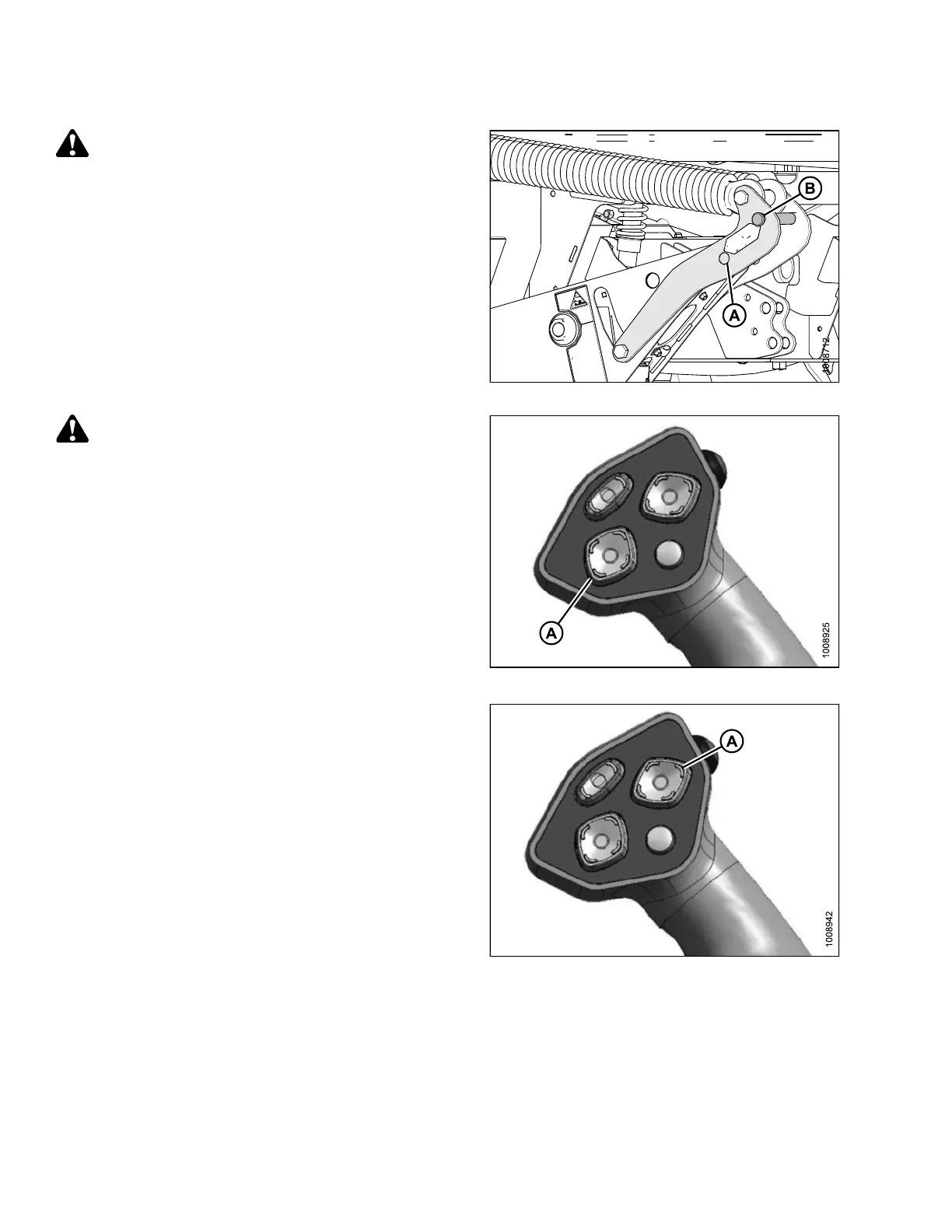

Figure 3.250: Header Float Linkage
CAUTION
Check to be sure a ll bystanders have cleared t he area.
2. Start the engine and activate the HEADER DOWN
button (A) on the ground speed lever (GSL) to fully
retract header lift cylinders.
IMPORTANT:
If the center-link is too low, it may con tact the header
as the windrower approaches the header for hookup.
Figu
re 3.251: Ground Speed Lever
3. Activate the REEL UP switch (A) on the GSL to raise
the center-link until the hook is above the attachment
pin on the header.
Fig
ure 3.252: Ground Speed Lever
147962 134 Revision A
