CAB DISPLAY MODULE (CDM)
CAUTION
Check to be sure all bystanders have cleared the area.
6. Press and hold the HEADER UP (C) button on the
ground speed lever (GSL).
• CALIBRATING HEIGHT is displayed o n t he
upper line.
• RAISE HEADER H OLD is displayed o n the
lower lin e.
NOTE:
ThewordHOLDwillflash during calibration.
RAISE HE A DER DON E will display on the lower
line once calibratio n is complete.
7. Release the HEADER UP (C) button.
• HEIGHT SENSOR CAL is displayed on the
upper line.
• PRESS LOWER HEADER is displayed on the
lower lin e.

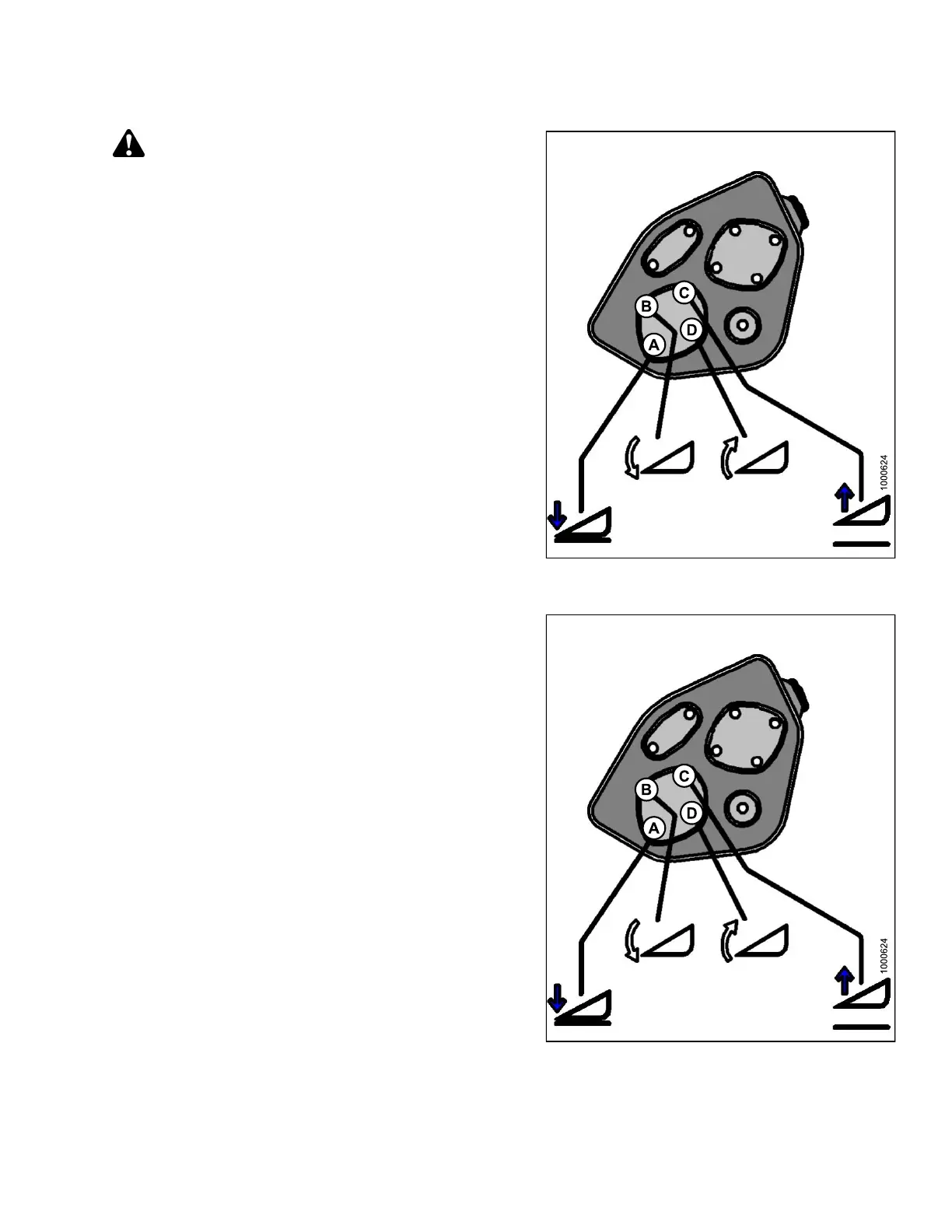

Figure 4.54: Header Height Controls on Ground
Speed Lever
8. Press and hold HEADER DOWN (A) button on GSL.
NOTE:
ThewordHOLDwillflash during calibration. HT
SENSOR COMPLETE will display on the lower
line once calibratio n is complete.
9. Releas e HEADER DO W N (A) button.
• TO CALIBR ATE SELECT is displayed on the
upper line.
• HEADER HEIGHT is displa ye d on the lower line.
10. Press right arrow to select next header sensor
calibration or STOP & EXIT. Press SELECT.
Refer to 4.3.2 Calibrating the Header Tilt Sensor, page
176 or 4.3.3 Calibrating the Header Float Sensors,
page 180.
11. Press PROGRAM to exit Programming Mode.
Fi
gure 4.55: Header Height Controls on Ground
Sp
eed Lever
147962 175 Revision A
