CAB DISPLAY MODULE (CDM)
1. Turn ignition key to RUN, or start the engine .
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
3. Press SELECT (C) until CALIBRATE SENSORS? is
displayed on the upper line.
• NO/YES is dis playe d on the lower lin e .

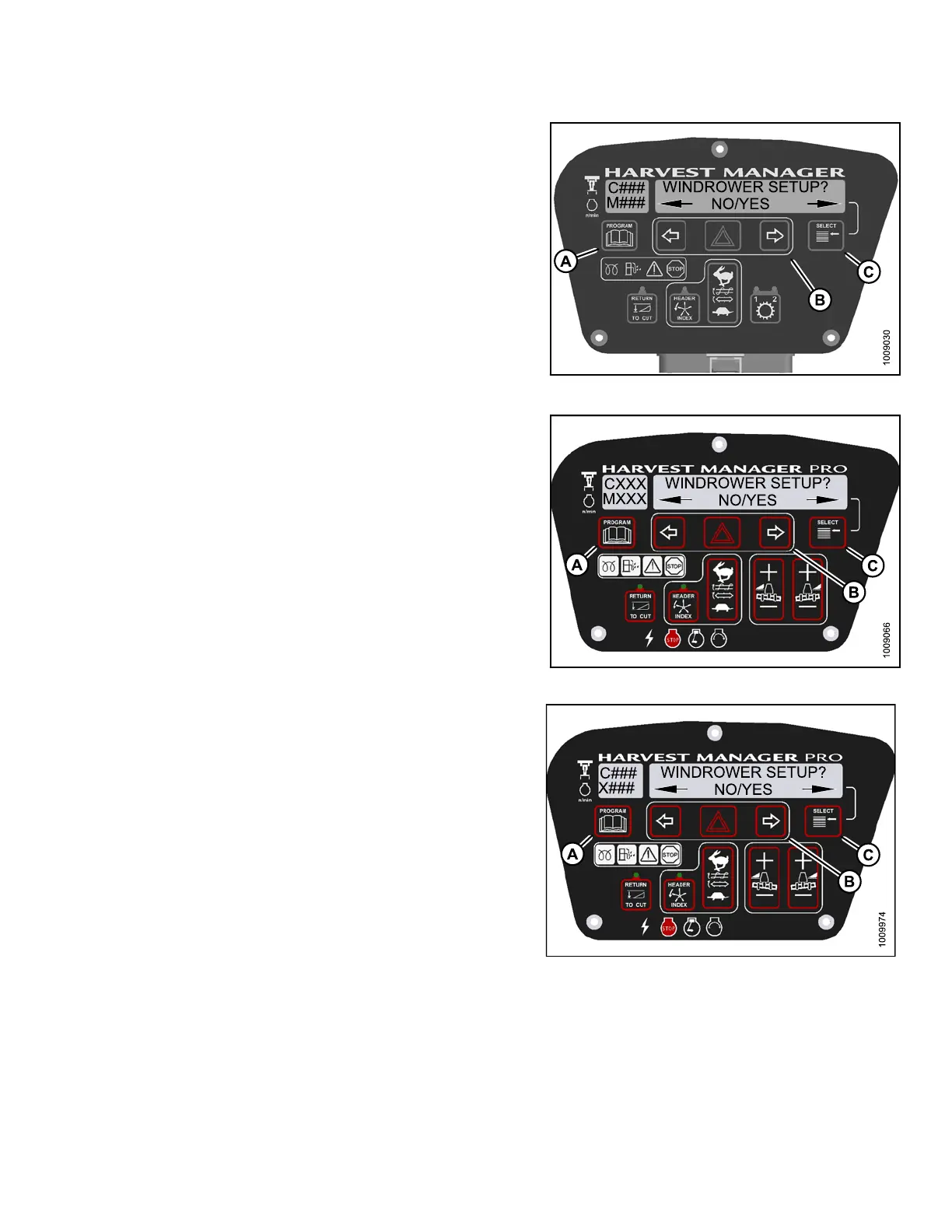

Figure 4.56: M105 CDM Programming Buttons
Figure 4.57: M155 CDM Programming Buttons
Figure 4.58: M205 CDM Programming Buttons
147962
17
7
Revision A
