CAB DISPLAY MODULE (CDM)
4. Press right (B)arrow to select YES. Press SELECT (C).
• TO CALIBRATE SELECT is displayed in upper line.
5. Press left (A) or right (B) arrow until HEADER FLOAT
is displayed on the lower line. Press SELECT (C).
• CALIBRATING FLOAT is displayed on the
upper line.
• PRESS FLOAT + TO START is displayed on the
lower lin e.
CAUTION
Check to be sure all bystanders have cleared the area.

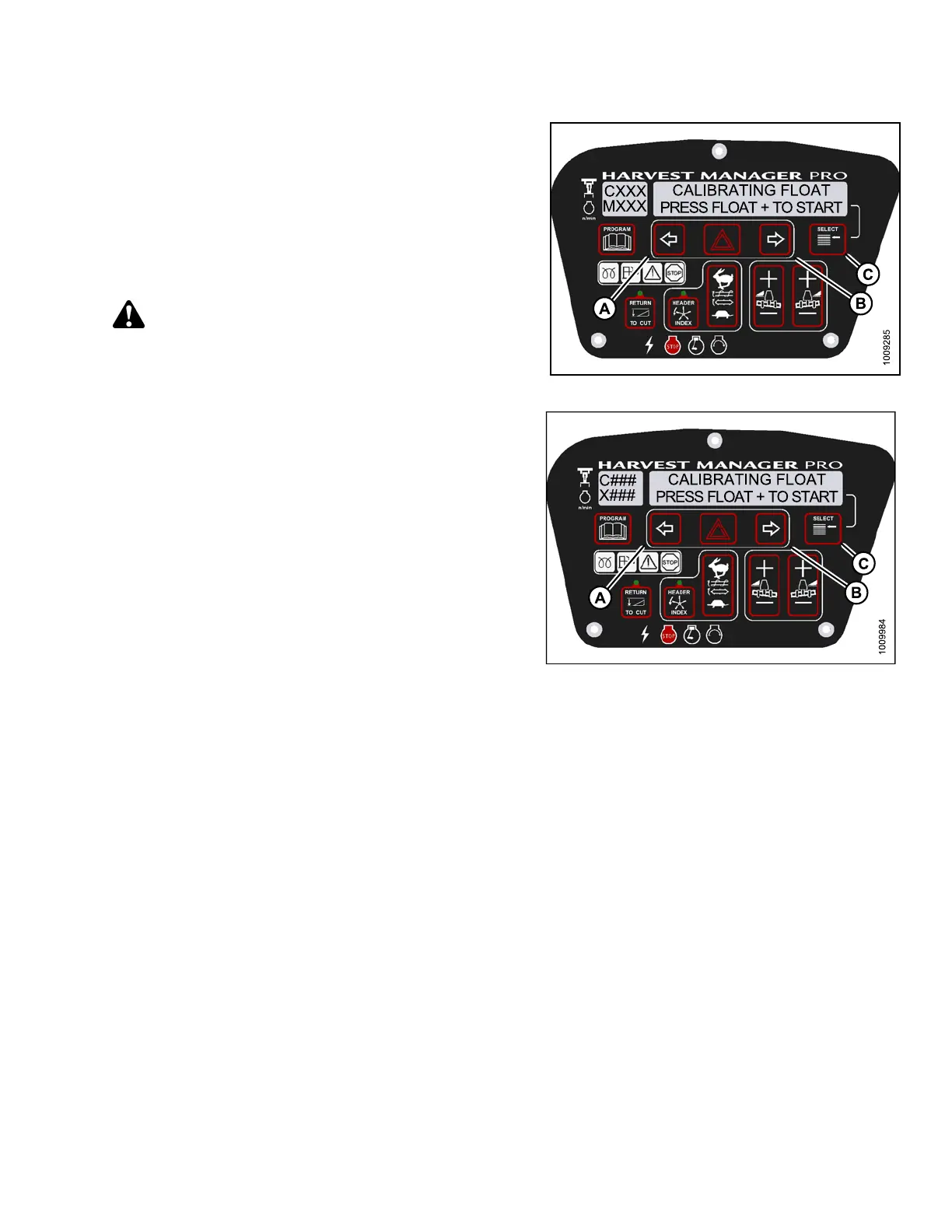

Figure 4.6
6: M155 Head er Float
Figure 4.67: M205 Header Float
147962 181 Revision A
