CAB DISPLAY MODULE (CDM)
4. Press SELECT (B) until SET CONTROL LOCKS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right(A) arrow to select YES. P ress SELECT (B).

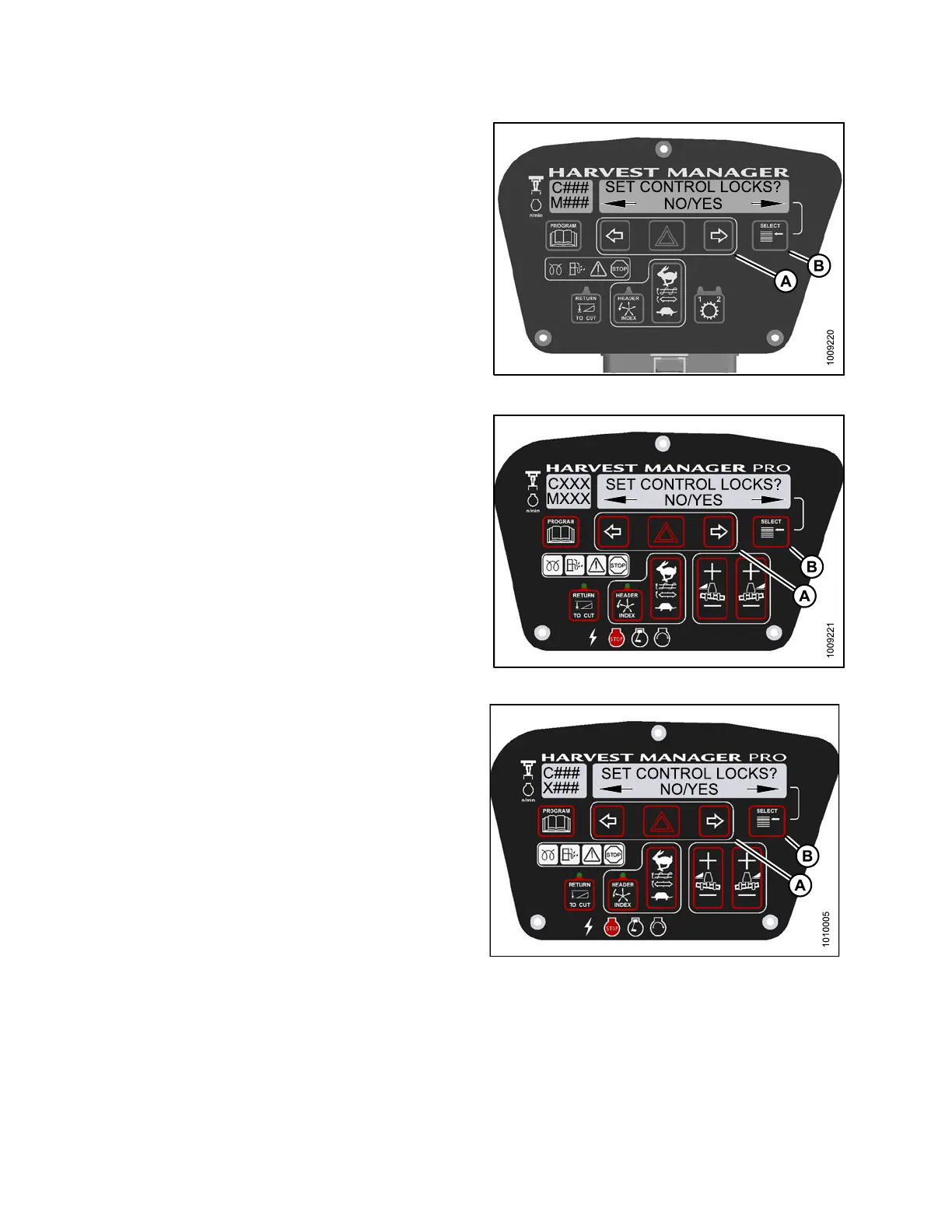

Figure 4.1
79: M105 Control Locks
Figure
4.180: M155 Control Locks
Figure 4.181: M205 Control Locks
147962 232 Revision A
