CAB DISPLAY MODULE (CDM)
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrowto select YE S. PressSELE CT (C).
• SET K NIFE SPEED? is displayed on the upper line.
• SELECT HEADER TYPE? is displayed on the
upper line.

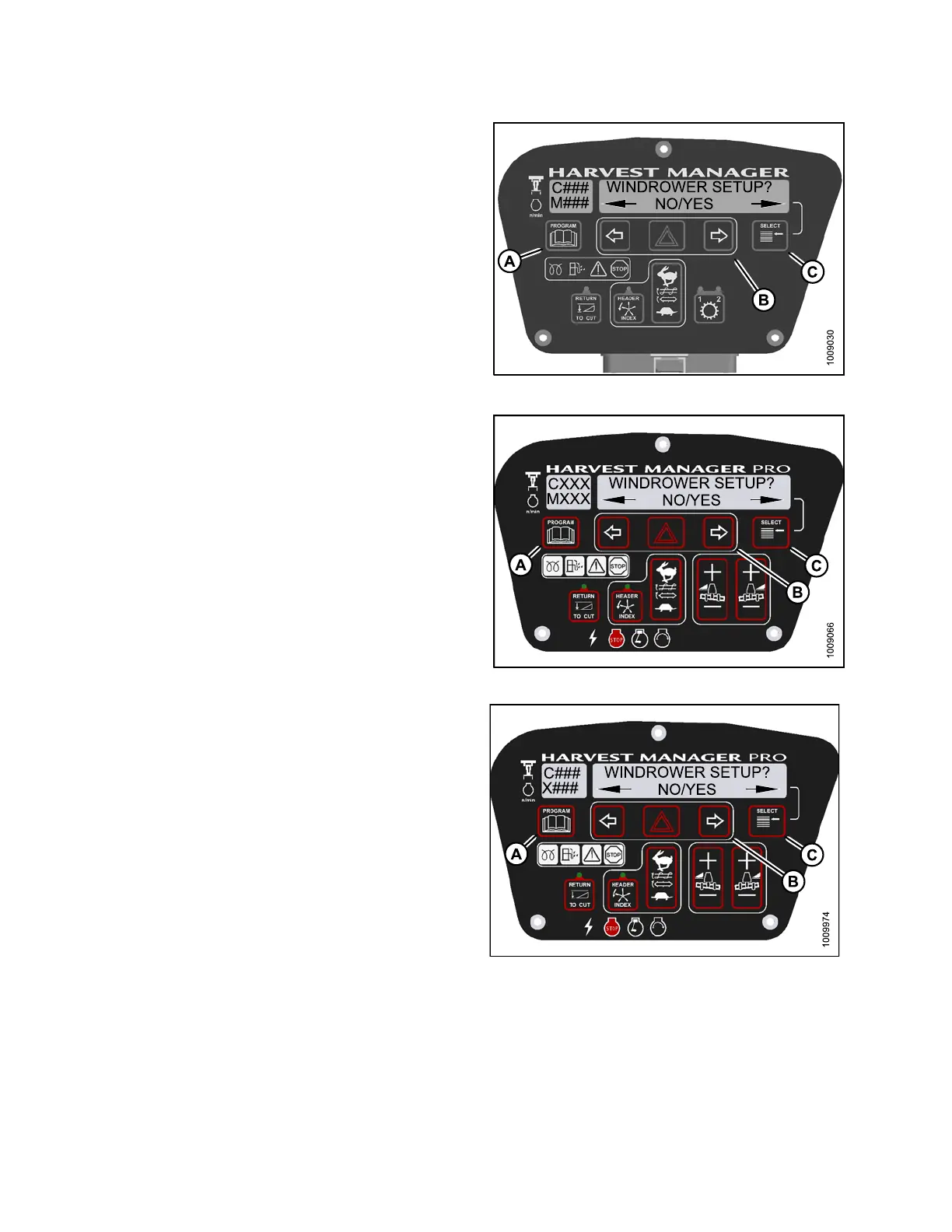

Figure 4.221: M105 CDM P rogramming Buttons
Figure 4.222: M155 CDM P rogramming Buttons
Figure 4.223: M205 CDM P rogramming Buttons
147962 250 Revision A
