CAB DISPLAY MODULE (CDM)
7. Press left (B) arrow to enable a sensor. Press right (C)
arrow to disable sensor. Press SELECT (D) to confirm
selection and move on to next sensor.
The followin g sensors are available :
• HEADER HT SE NSOR
• HEADER TILT SENSOR
• KNIFE SPEED SENSOR
• REEL SPE ED SENSOR
• HEADER FLOAT SENSOR
• OVERLOAD PRESSURE
10
• HYD OIL TEMP SENSOR
When sensors have been modified, press SELECT (D)
to display the EXIT SENSOR SETUP? selection.

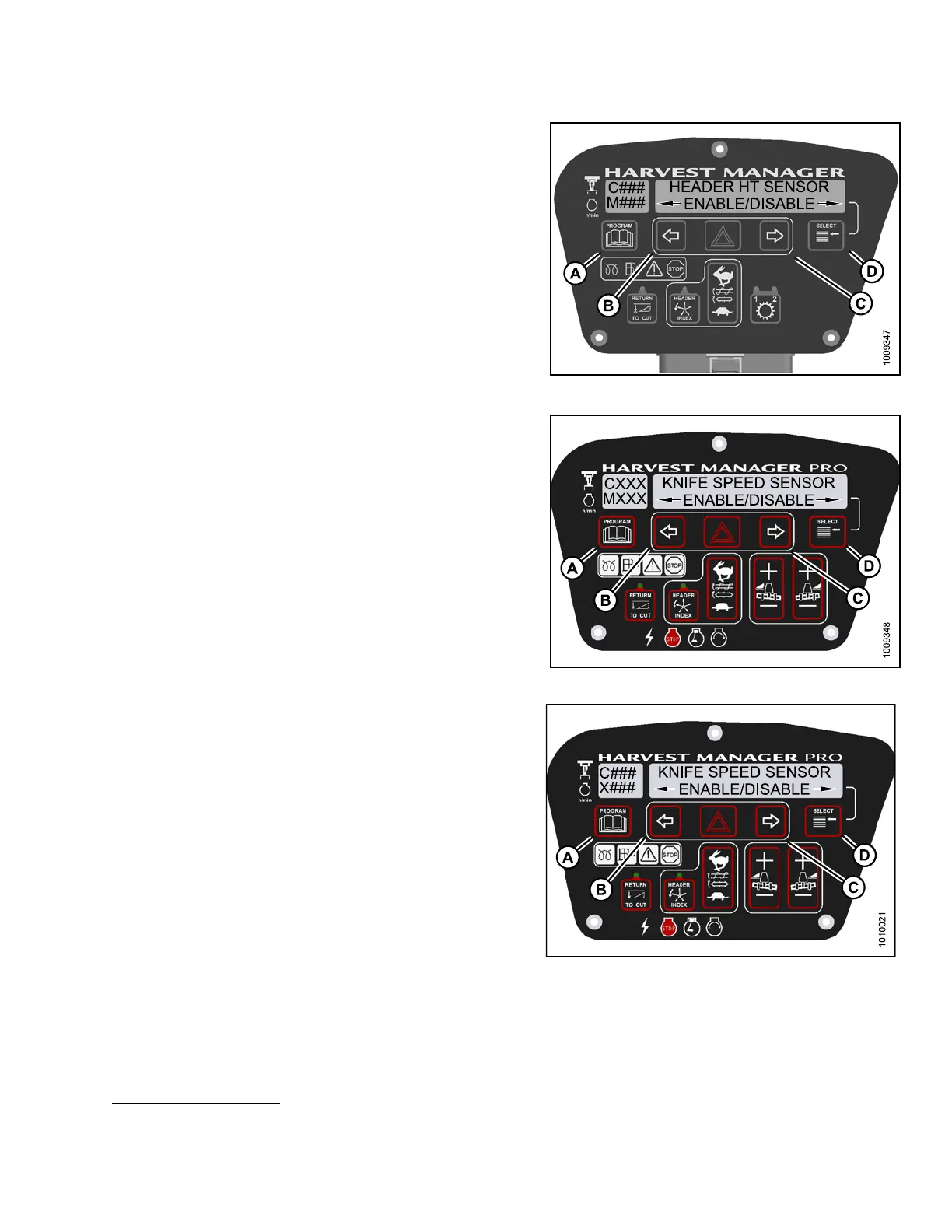

Figure 4.2
47: M105 Header Sensors
Figure
4.248: M155 Header Sensors
Figure 4.249: M205 Header Sensors
8. Press right arrow t o select YES. Press SELECT.
9. Press PROGRAM to exit Programming Mode or press
SELECT to proceed to next DIAGNOSTIC MODE.
10. Requires installation of optional pressure sensor (MD #B5574).
147962 259 Revision A
