CAB DISPLAY MODULE (CDM)
3. Press SELECT (B) until DIAGNOSTIC MOD E? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
4. Press right(A) arrow to select YES. P ress SELECT (B).
• VIEW ERROR CODES? is displayed on the
upper line.
5. Press SELECT (B) until READ SENSOR SETUP? is
displayed on the upper line.
• NO/YES is displayed on the lower line.

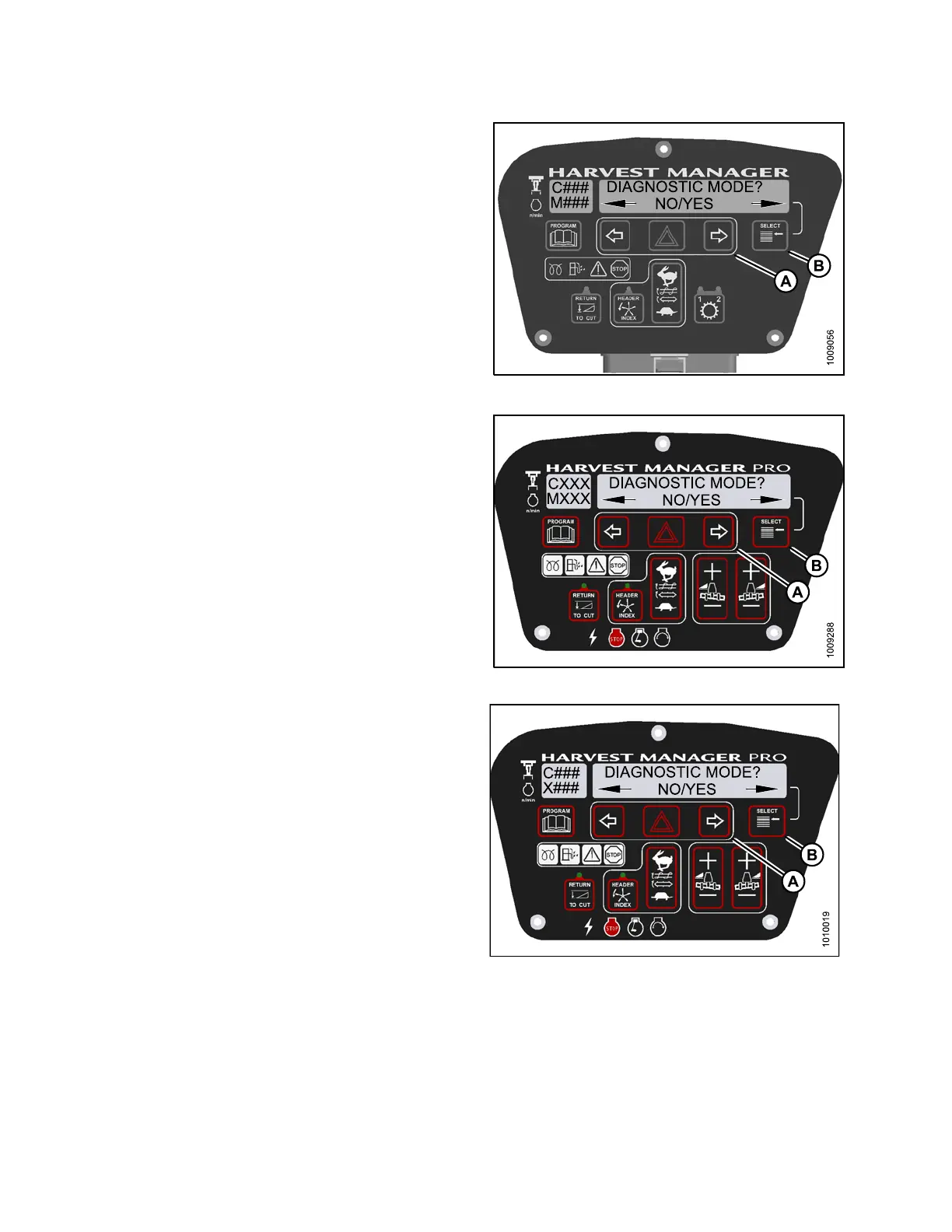

Figure 4.2
53: M105 Diagnostic Functions
Figure
4.254: M155 Diagnostic Functions
Figure 4.255: M205 Diagnostic Functions
147962 262 Revision A
