CAB DISPLAY MODULE (CDM)
CAUTION
Check to be sure all bystanders have cleared the area.
9. Press SELECT (D) until REEL DOWN/UP is displayed
on the lower line.
10. Press SELECT (D) until AC T IVAT E REEL HT is
displayed on the upper line.
• DOWN/U P is d isp la yed on the lower line.
11. P res s and hold left (B) arrow to lower reel. Press and
hold right (C) arrow to raise reel.
Verify reel is functioning properly.
12. Press PROGRAM (A) to exit Programming
Mode or press SELECT (D) to proceed to next
ACTIVATE F UNCTION.

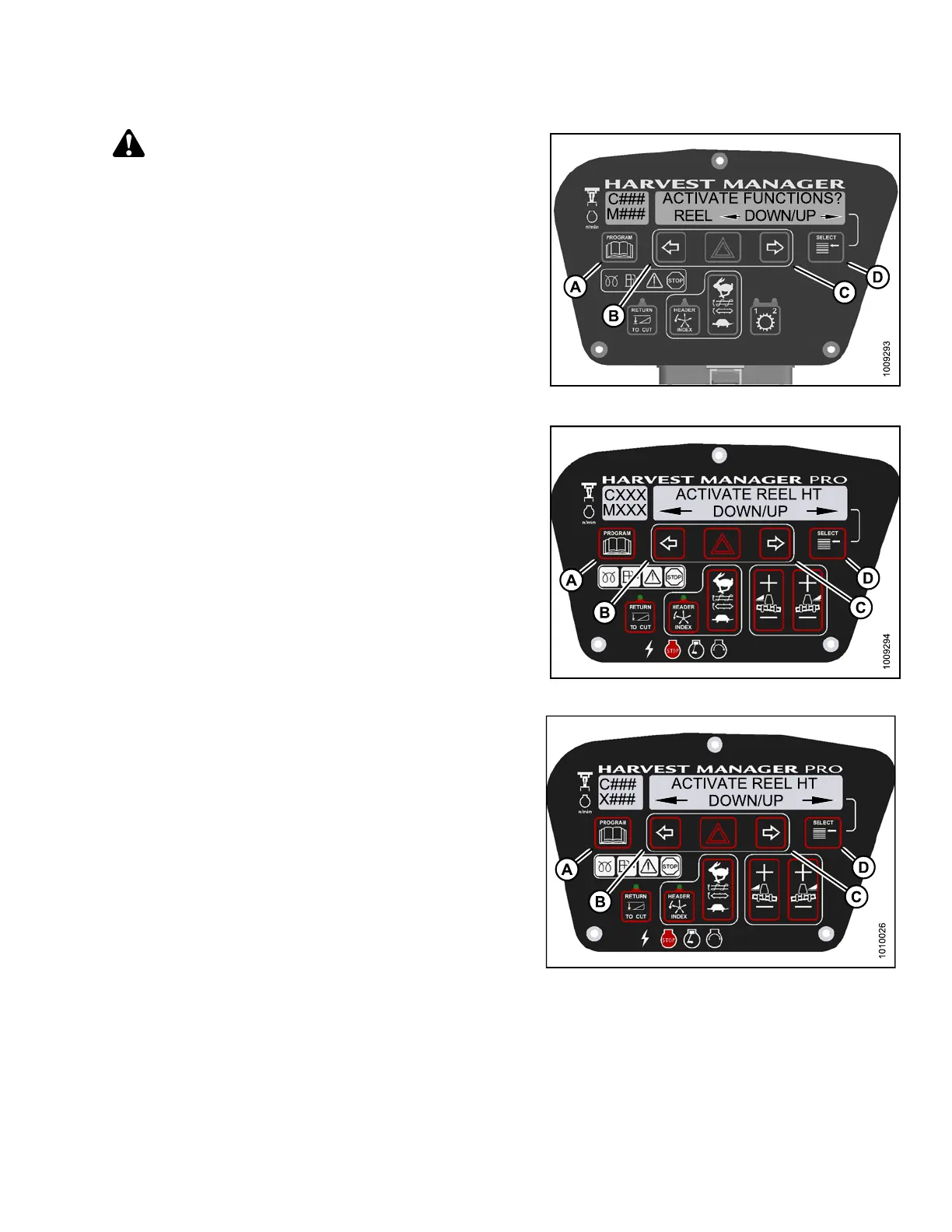

Figure 4.288: M10 5 Reel Height
Figure 4.289: M15 5 Reel Height
Figure 4.290: M20 5 Reel Height
