CAB DISPLAY MODULE (CDM)
5. Press S ELECT (B) until ACTIVATE FUNCTIONS? is
displayed on the upper line.
• NO/YES is dis playe d on the lower lin e .
6. Press right (A) arrow to select YES. Press SELECT ( B).
• HEADER DOWN/UP is displayed on the lower line.
• ACTIVATE HEADER HT is displayed on the
upper line.
• DOWN/U P is d isp la yed on the lower line.

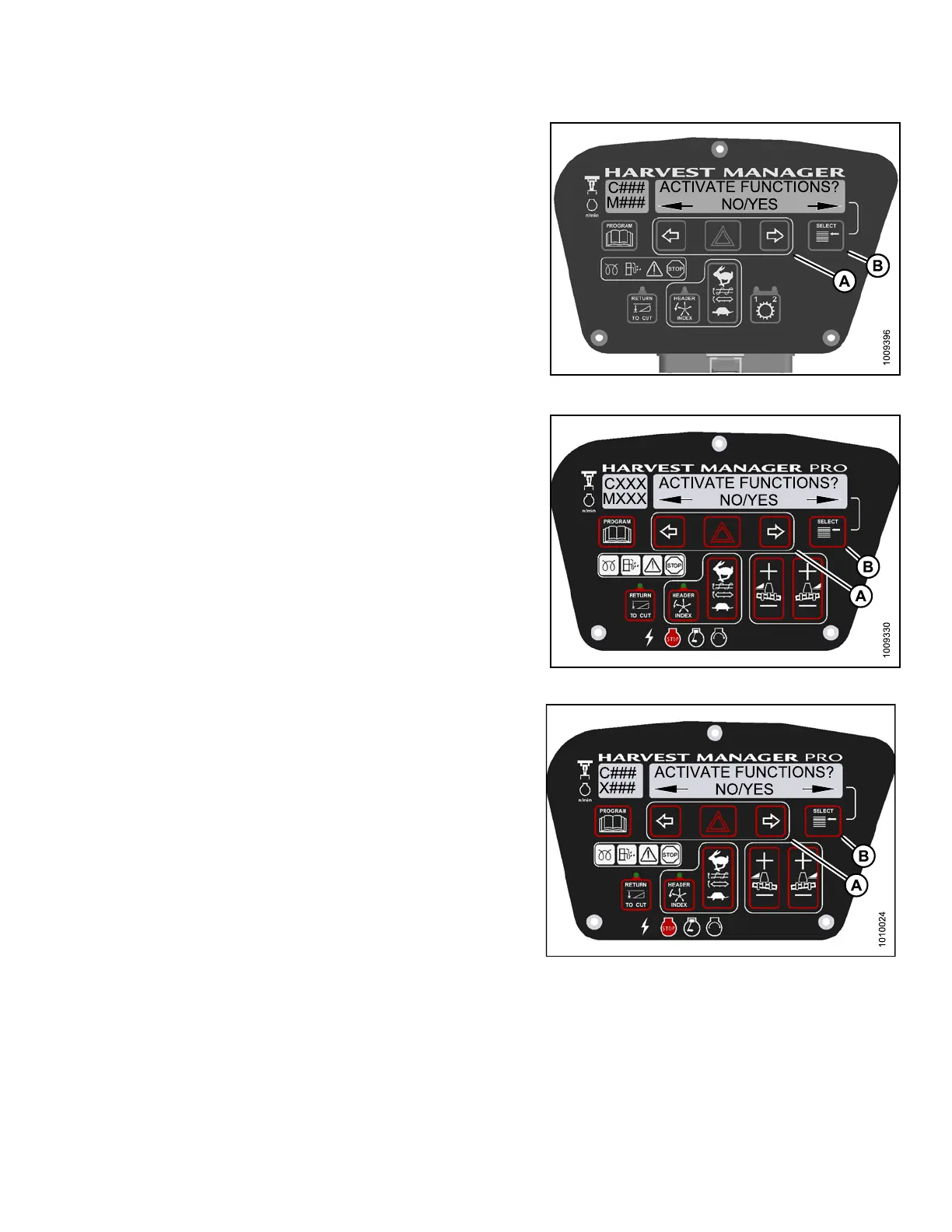

Figure 4.3
33: M105 Functions
Figure
4.334: M155 Functions
Figure 4.335: M205 Functions
147962 295 Revision A
