CAB DISPLAY MODULE (CDM)
7. Press S ELECT (B) until ACTIVATE HYD PURGE? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
8. Press right(A) arrow to select YES. P ress SELECT (B).
• TO ACTIVATE PURGE is displayed on the
upper line.
• PRESS AND HOLD is displayed on the lower line.
CAUTION
Check to be sure a ll bystanders have cleared t he area.

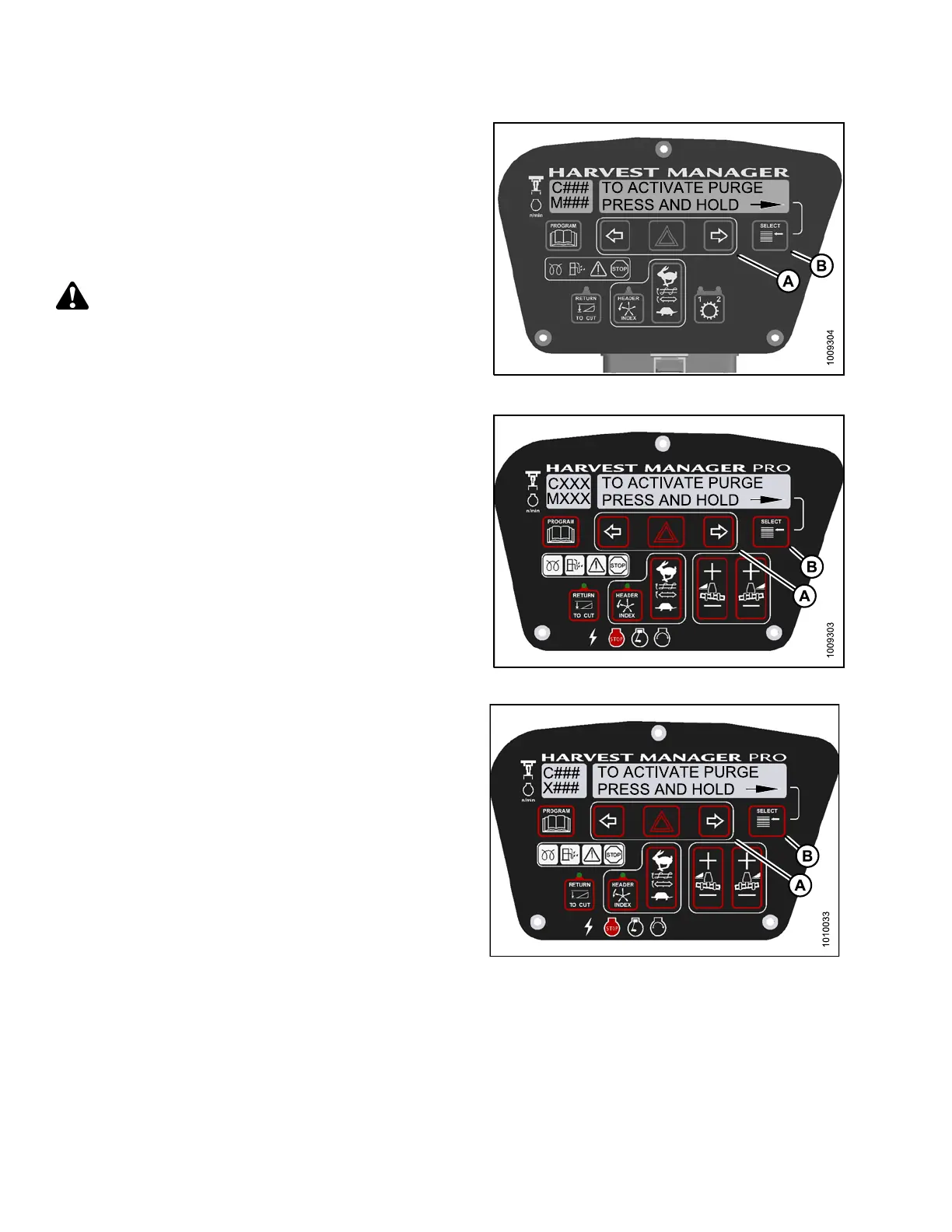

Figure 4.3
36: M105 Hydraulic Purge
Figure
4.337: M155 Hydraulic Purge
Figure 4.338: M205 Hydraulic Purge
147962 296 Revision A
