ASSEMBLING THE W INDROWER
6. Attach a chain to the right-hand caster and support
caster with lifting device.

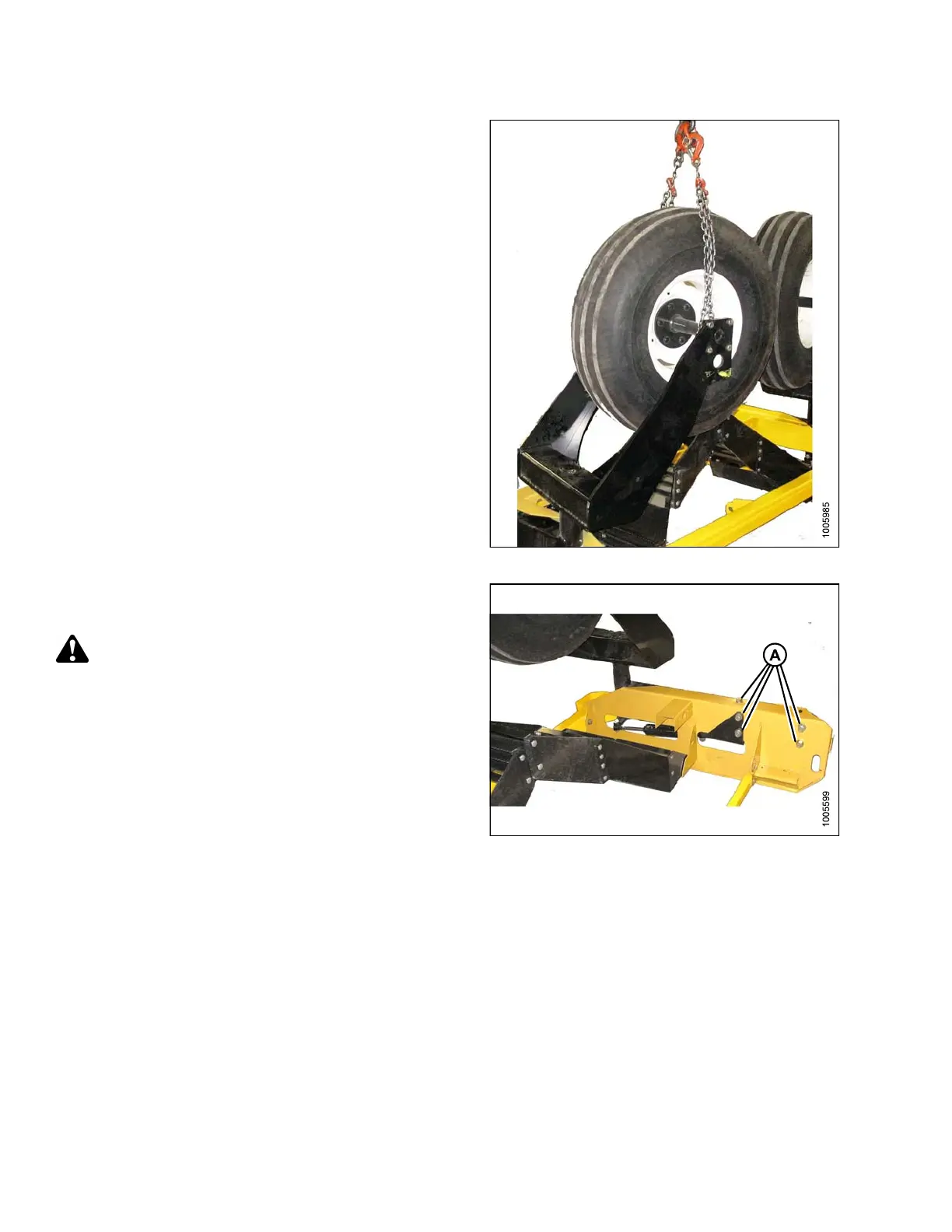

Figure 3.22: Lifting Device on Caster
7. Remo ve the five remaining bolts (A) securing the
caster to the shipping frame. Retain bolts for attaching
caster to walking beam.
CAUTIO
N
Stand clear when lifting, as caster may swing.
Figure 3.23: Shipping Frame on Caster
147962 38 Revision A
