ASSEMBLING THE W INDROWER
20. Retrieve the two motor case drain hoses (MD #111312)
at the front frame and the 7/8 in. tee fitting (B) on the
hose from the pump.
21. Remove the caps (A) from the hoses only.

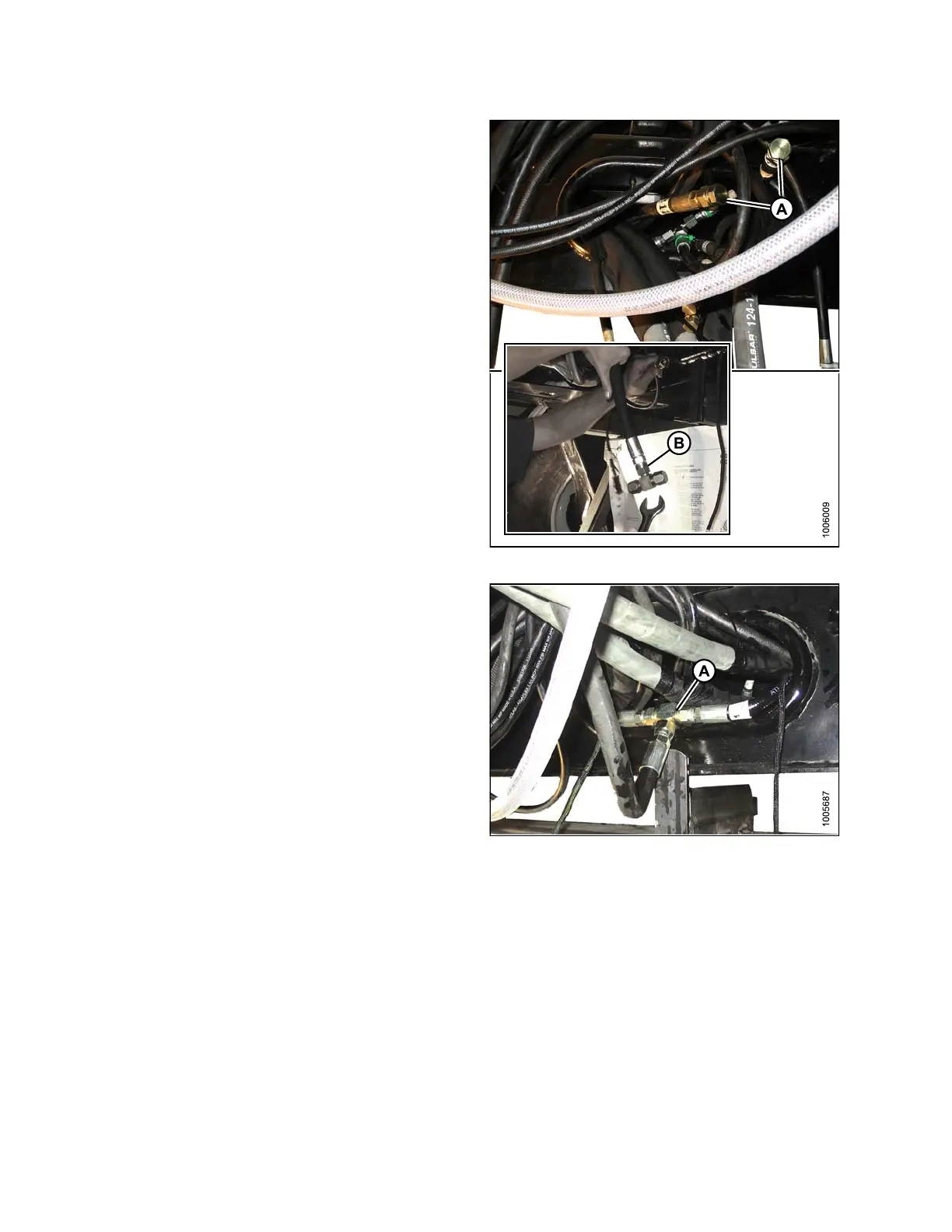

Figure 3.
69: Motor Case Drain Hoses
22. Remove one cap from tee fitting (A) and quickly attach
hose to m inimize oil spillage.
23. Remove s econd cap from tee fitting (A) and quickly
connect other hose.
24. Tighten fittings.
Figur
e3.70:TeeFitting
147962 56 Revision A
