ASSEMBLING THE W INDROWER

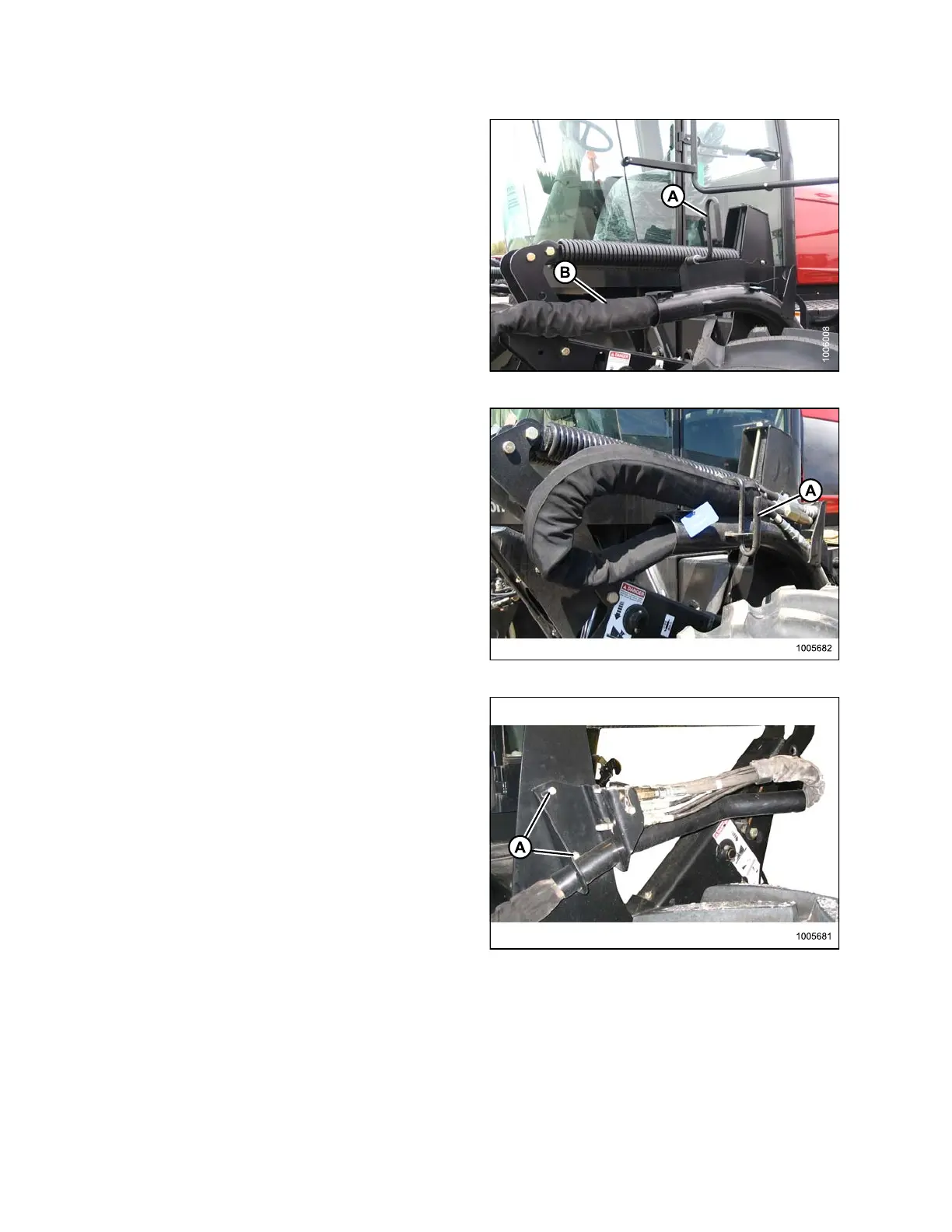

34. Disengage and rotate hook (A) to fully up position.
35. Position hos e bundle (B) ove r hose support and
under hook.
Figure 3.77: Hook Positioning
36. Lower hook (A) and engage in bracket in down position.
Figure 3.78: Hook Positioning
37. Attach the reel hose support tube to the right-hand reel
leg with two 3/8 in. x 1.0 in. carriage bolts (A) and nuts.
Figure 3.79: Reel Hose Support
147962 60 Revision A
