ASSEMBLING THE WINDROWER

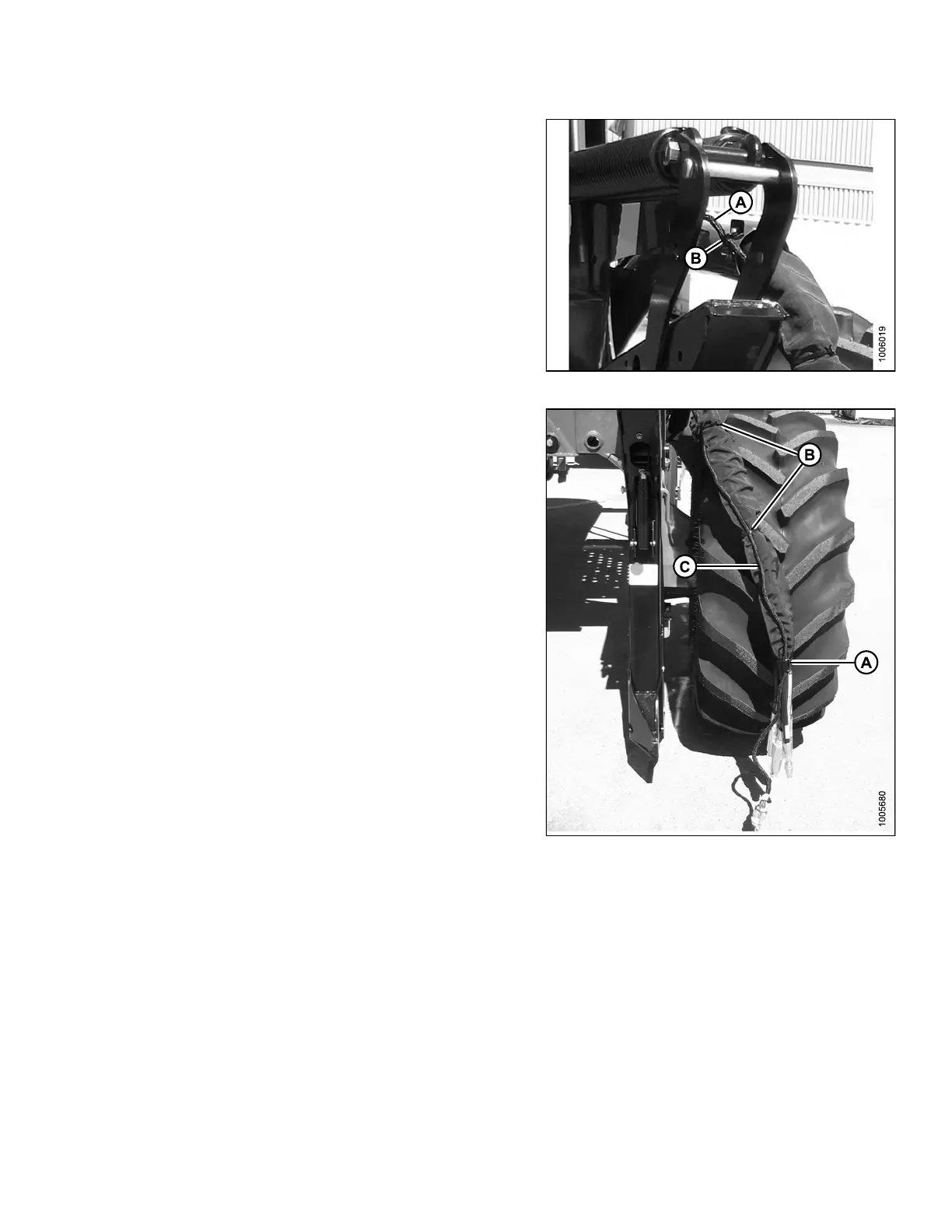

32. Attach harness (A) to hose support with hose clip (B).
Figure 3.75: Hose Support
33. Secure harness (C) to hose bundle with strap (A) and
new plastic cable ties (B). Ensure harness is clear of
pinch and friction points.
Figur
e 3.76: Electric Harness and Hose Bundle
147962 59 Revision A
