ASSEMBLING THE W INDROWER

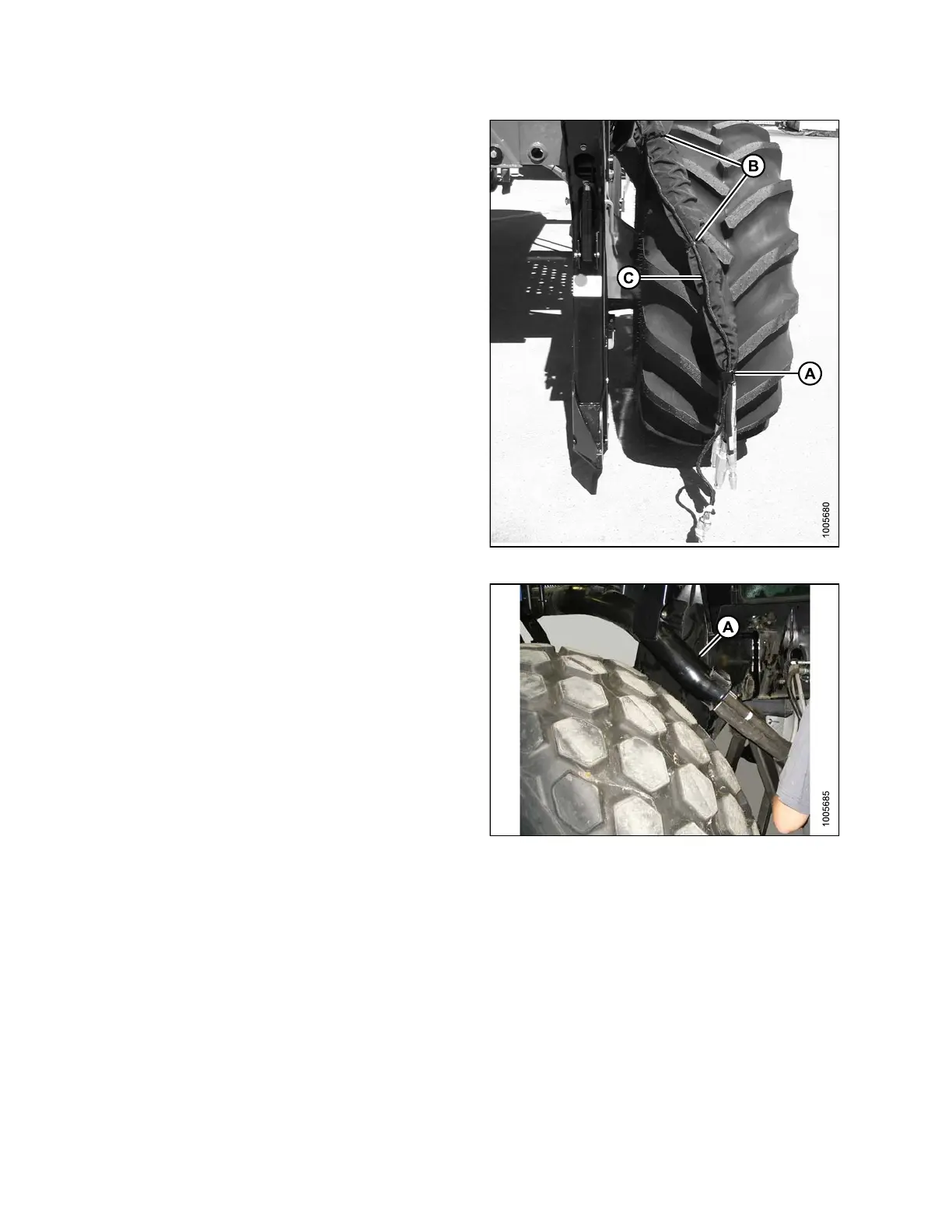

29. Undo strap (A), cut plastic cable ties (B), and move
harness (C) away from the hose bundle.
Figure 3.
73: Electric Harness and Hose Bund le
30. Route the hose bundle (A) through the hose support
and lay on the tire.
31. Route the harness along the outside of the hose
support and along the h ose bundle to the hose ends.
Figur
e 3.74: Hose Routing
147962 58 Revision A
