ASSEMBLING THE W INDROWER
8. From above the machine, locate plug (A) on the top of
the traction drive pump housing.
9. Loosen plug (A) to bleed the pump housing. Retighten
the p lug once oil starts to run out.
10. Replace the hydraulic oil res ervo ir filler cap.

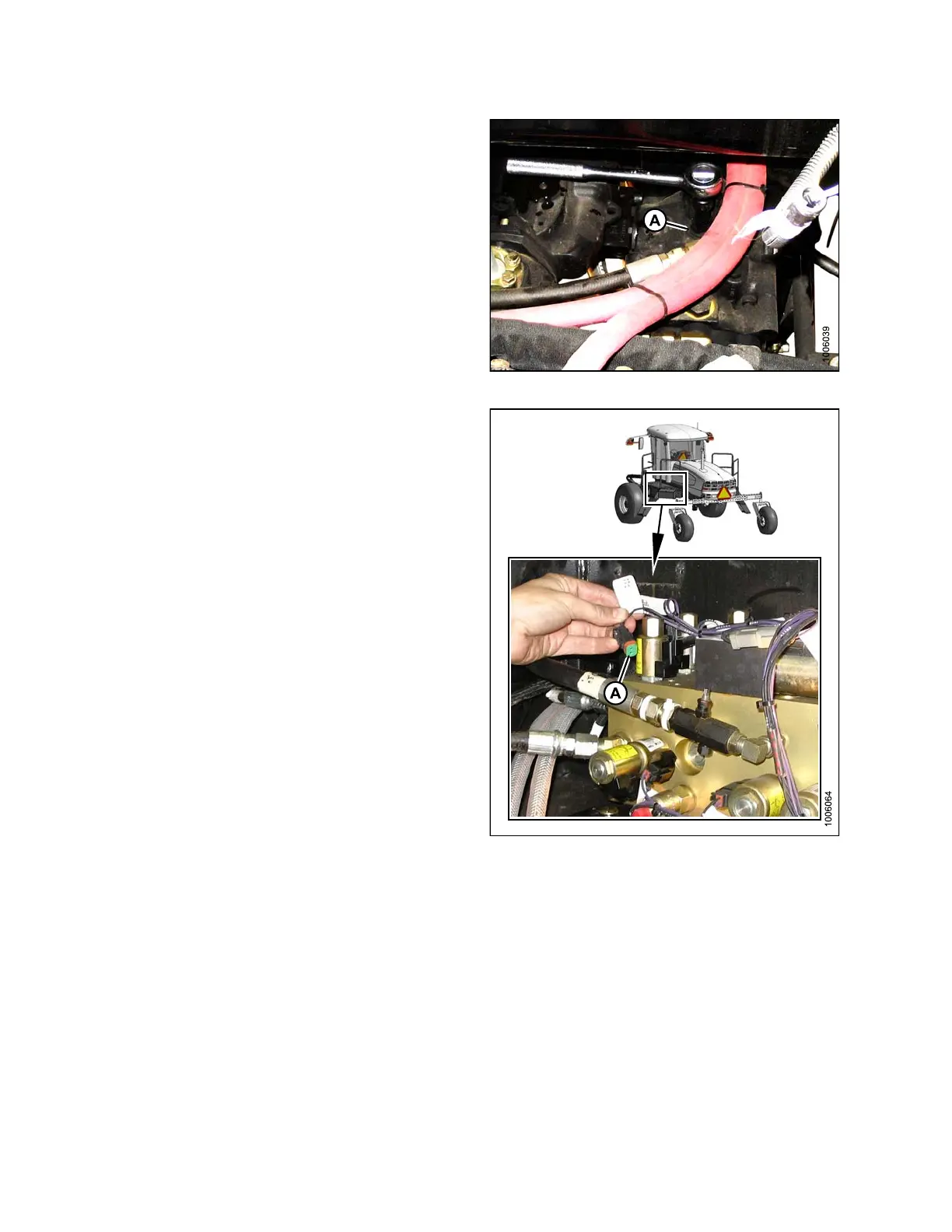

Figure 3.116: Traction Drive Pump Housing
11. Open the left-hand (cab-forward) platform.
12. Disconnect the brake engage solenoid plug (P44) (A)
at the multifunction block on the left-hand side of
the windrower.
Figur
e 3.117: Multifunction Control Block
147962 78 Revision A
