Operating elements for driving
3.2 Brief description of the operating elements
3 - 60 3 302 819 en Operating manual
GMK3060
13.12.2018

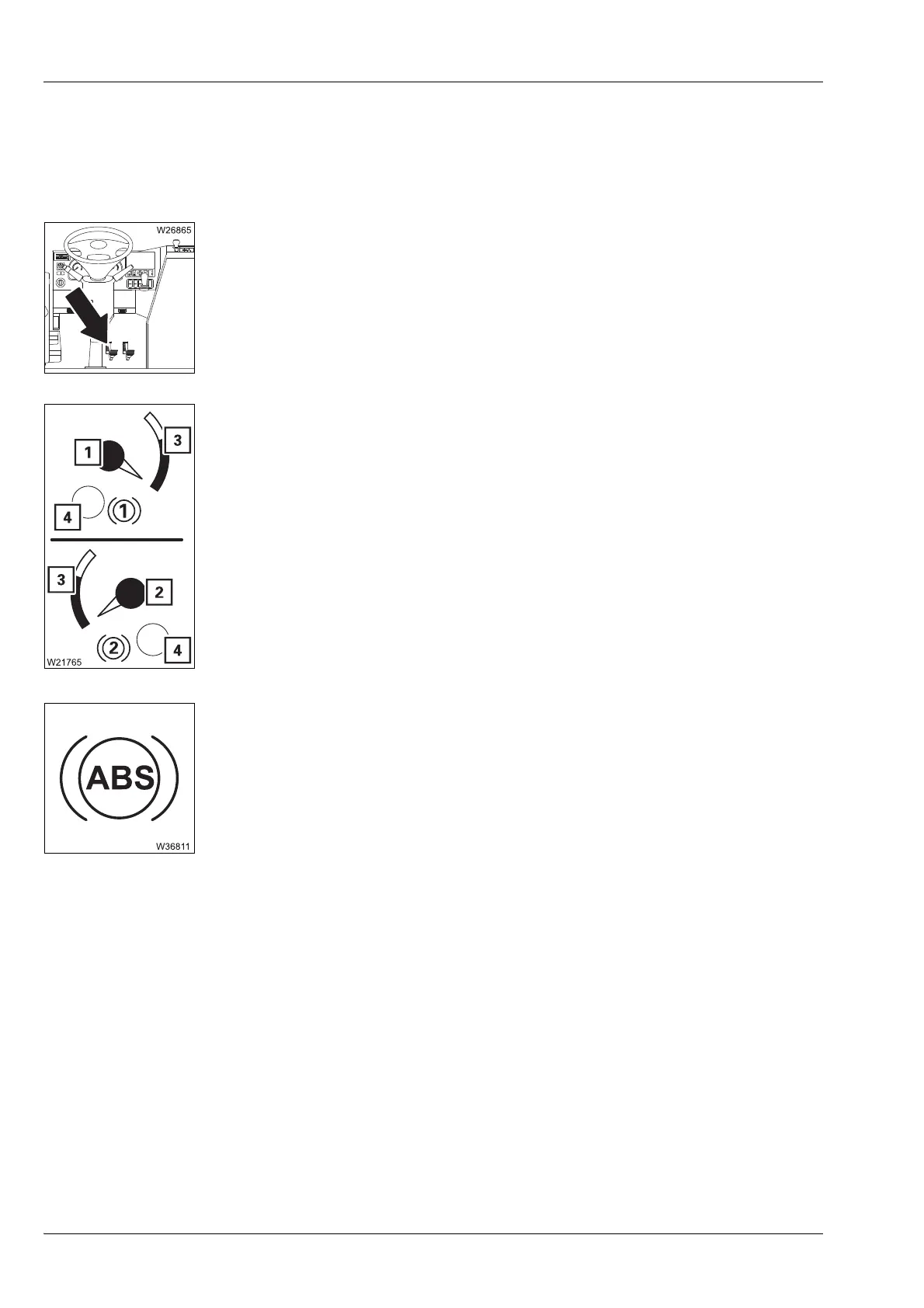

3.2.13 Brakes
Service brake
The braking force can be continuously adjusted with the pedal.
Display of supply pressure in brake circuits
ABS warning
1 Current supply pressure in brake circuit 1
2 Current supply pressure in brake circuit 2
3Red – supply pressure insufficient
White – supply pressure sufficient
4 – Lights up:
– Gone out:
Supply pressure below approx. 5 bar (73 psi)
Supply pressure above 5 bar (73 psi)
à p. 5 - 9
– Lights up: – While driving
ABS controls the braking operation
– After starting the engine
ABS system defective;
à p. 8 - 7
– Gone out: ABS does not control the braking operation
à p. 5 - 37
