12.6 Rigging/unrigging the counterweight
12 - 56 3 302 819 en Operating manual
GMK3060
13.12.2018

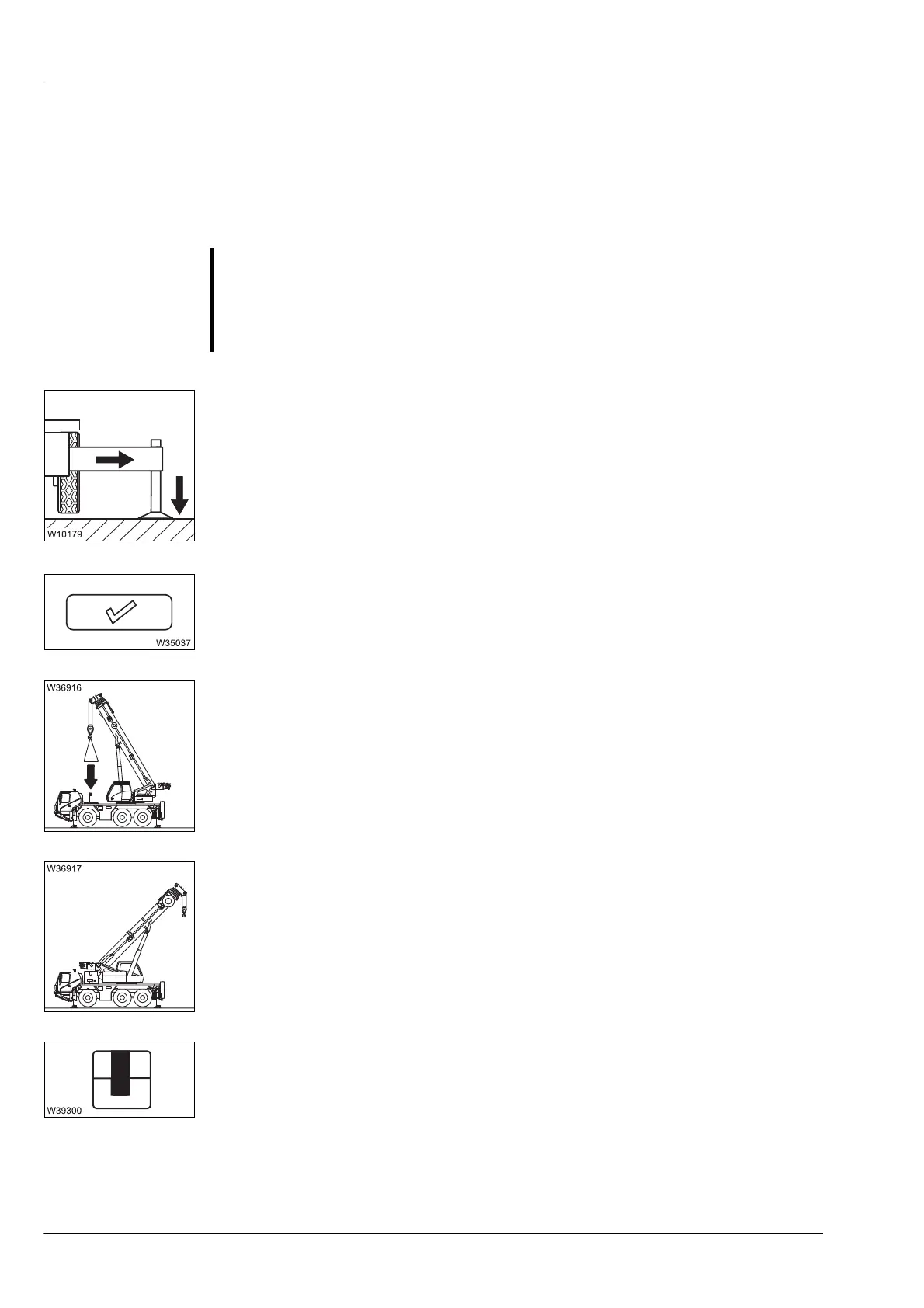

12.6.5 CHECKLIST: Rigging the counterweight
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions there!
1. The truck crane is stabilised with the outrigger span required for crane work
according to the Load capacity table. Enabled outrigger spans
– For the Standard slewing range type;
à p. 12 - 18
– For the MAXbase slewing range type;
à p. 12 - 22
2. Enter and confirm the current rigging mode;
à p. 11 - 36.
3. Assemble the required combination of counterweights:
à Slinging points on the counterweight sections, p. 12 - 55
à Assembling counterweight versions – on the counterweight platform,
p. 12 - 62
4. Slew the superstructure to the 0° to the rear position.
5. Lock the turntable;
à p. 11 - 18.
G
Danger of overturning when slewing with a rigged counterweight!
Always check before slewing whether slewing is permitted in the truck crane's
current rigging mode (counterweight, outrigger span, working radius).
Correct the rigging mode if necessary;
à Slewing with a rigged counterweight,
p. 12 - 76.
