9.3.3 Final drive

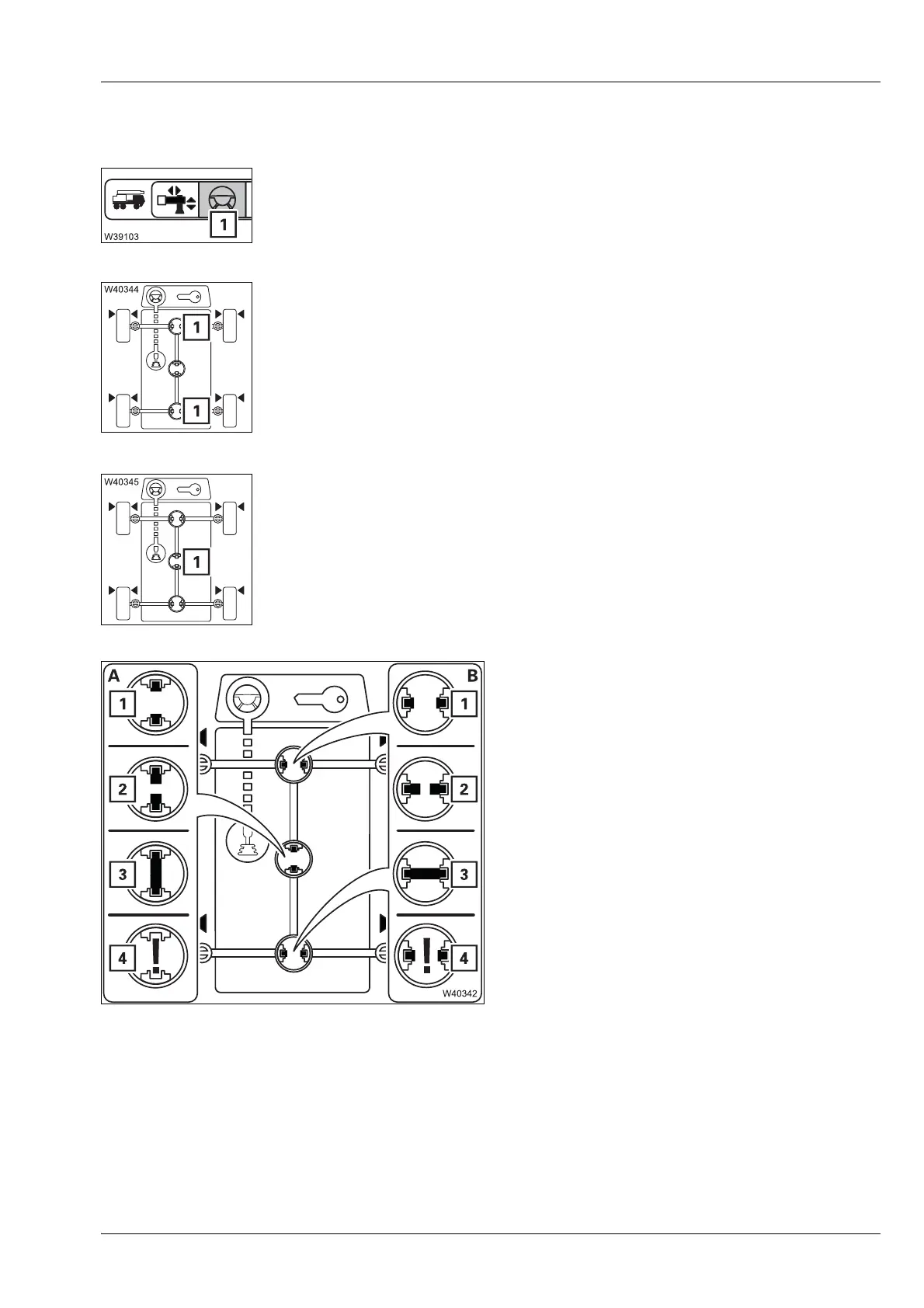

Driving menu
Transverse differential locks on/off
When a symbol (1) is selected all transverse differential locks are switched on
or off.
Longitudinal differential lock on/off
(A) – longitudinal differential lock display
(B) – transverse differential lock display
The current status is shown using different
symbols:
– Opening: Select symbol (1) and confirm – menu is opened
– Switch on: Select symbol (1) and confirm – symbol is red
– Switch off: Select symbol (1) and confirm – symbol is green
– Switch on: Select symbol (1) and confirm – symbol is red
– Switch off: Select symbol (1) and confirm – symbol is green
1 Green – locks off
2 Yellow – intermediate position
3Red – locks on
4 Violet – error
à p. 13 - 26
