Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 114 3 302 819 en Operating manual
GMK3060
13.12.2018

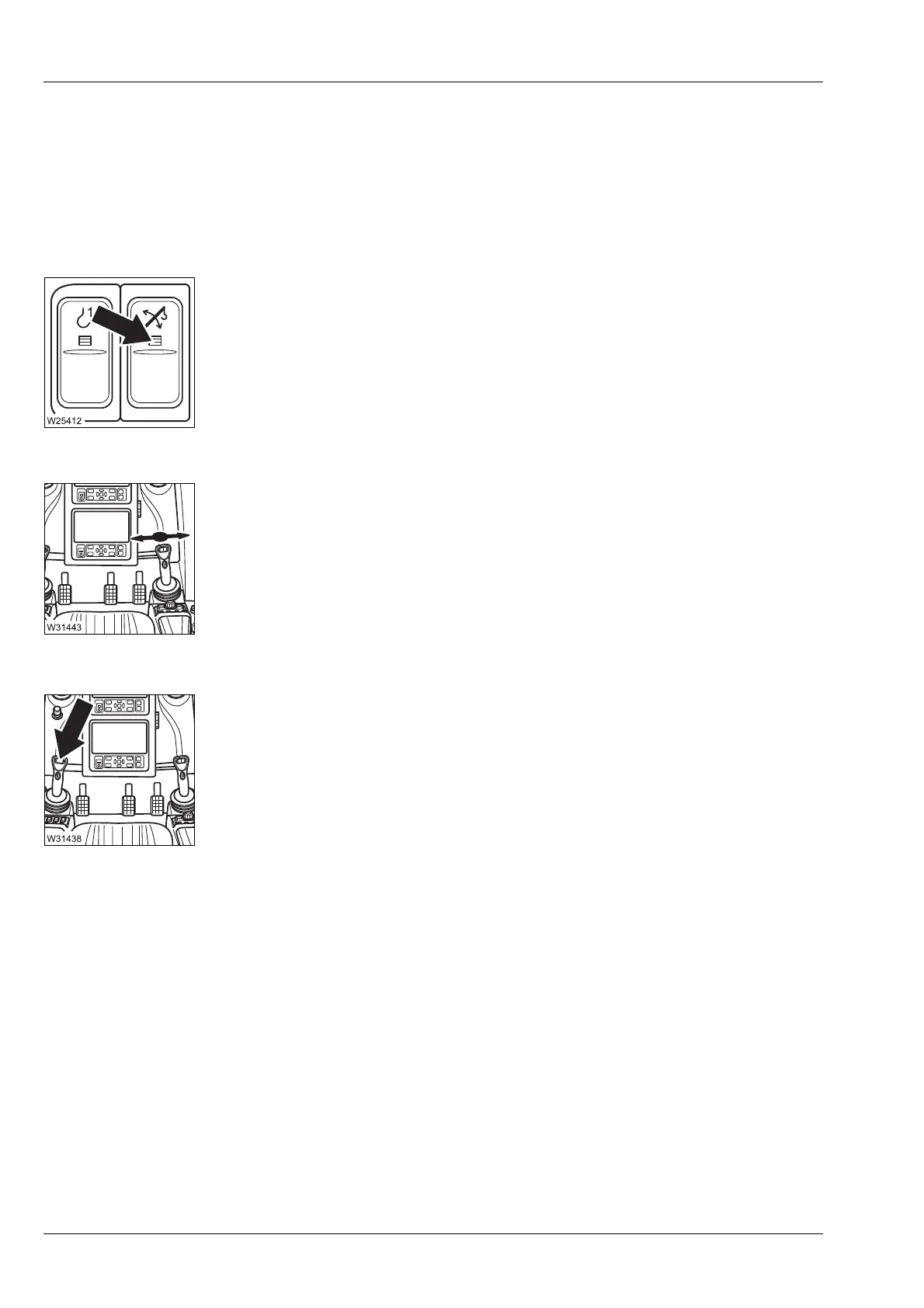

9.2.17 Derricking gear
à Derricking gear, p. 11 - 91.
Control panels
Derricking gear on/off
There is a lamp in the button.
Right control lever
Derricking gear/telescoping mechanism high-speed mode on/off
Parking brake is engaged – press in the button
– Press once: – Lamp bright – derricking gear on,
Power units with the same control lever configuration off
– Lamp dim – derricking gear off
à p. 11 - 91
– To the left: Raise – lift main boom
– To the right: Lower – lower main boom
à p. 11 - 92
– Left: High-speed mode on, off when released
– Once to the right: High-speed mode on – continuous operation
– Once to the right or
once to the left:
High-speed mode off
à p. 11 - 119
