Rigging work
12.5 Operating the outriggers
Operating manual 3 302 819 en 12 - 27
GMK3060
13.12.2018
12.5 Operating the outriggers

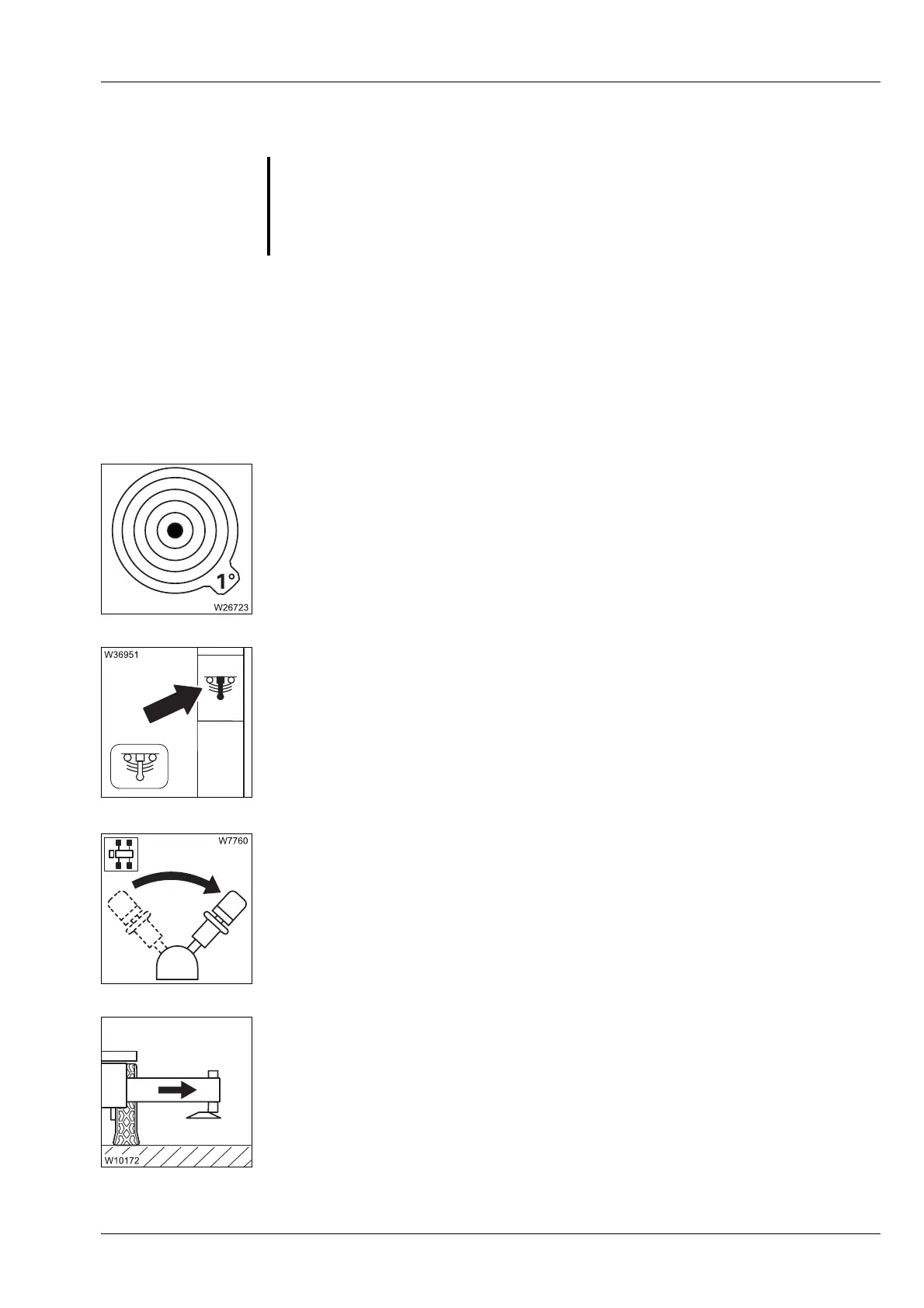

12.5.1 CHECKLIST: extending the outriggers
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions there!
1. Level the truck crane with the level adjustment system and lower it as far as
possible;
à p. 5 - 58.
2. Deactivate (Lock) the suspension – symbol red (suspension off);
à p. 5 - 17.
3. Apply the parking brake;
à p. 5 - 52.
4. Extend all outrigger beams to the required span;
– For the Standard slewing range type;
à p. 12 - 18
– For the MAXbase slewing range type;
à p. 12 - 22
à Setting the spans, p. 12 - 31
à Extending/retracting outrigger beams, p. 12 - 33.
s
G
Danger of crushing by extending outrigger beams!
You may only activate the outriggers if you yourself or a banksman with whom
you are in visual contact have an unobstructed view of their movements.
