12.8 Other rigging work
12.8.1 Folding the mirrors in and out, and adjusting them
All mirrors must be folded in for driving. For crane operation, you must fold out the
mirrors again and adjust them.

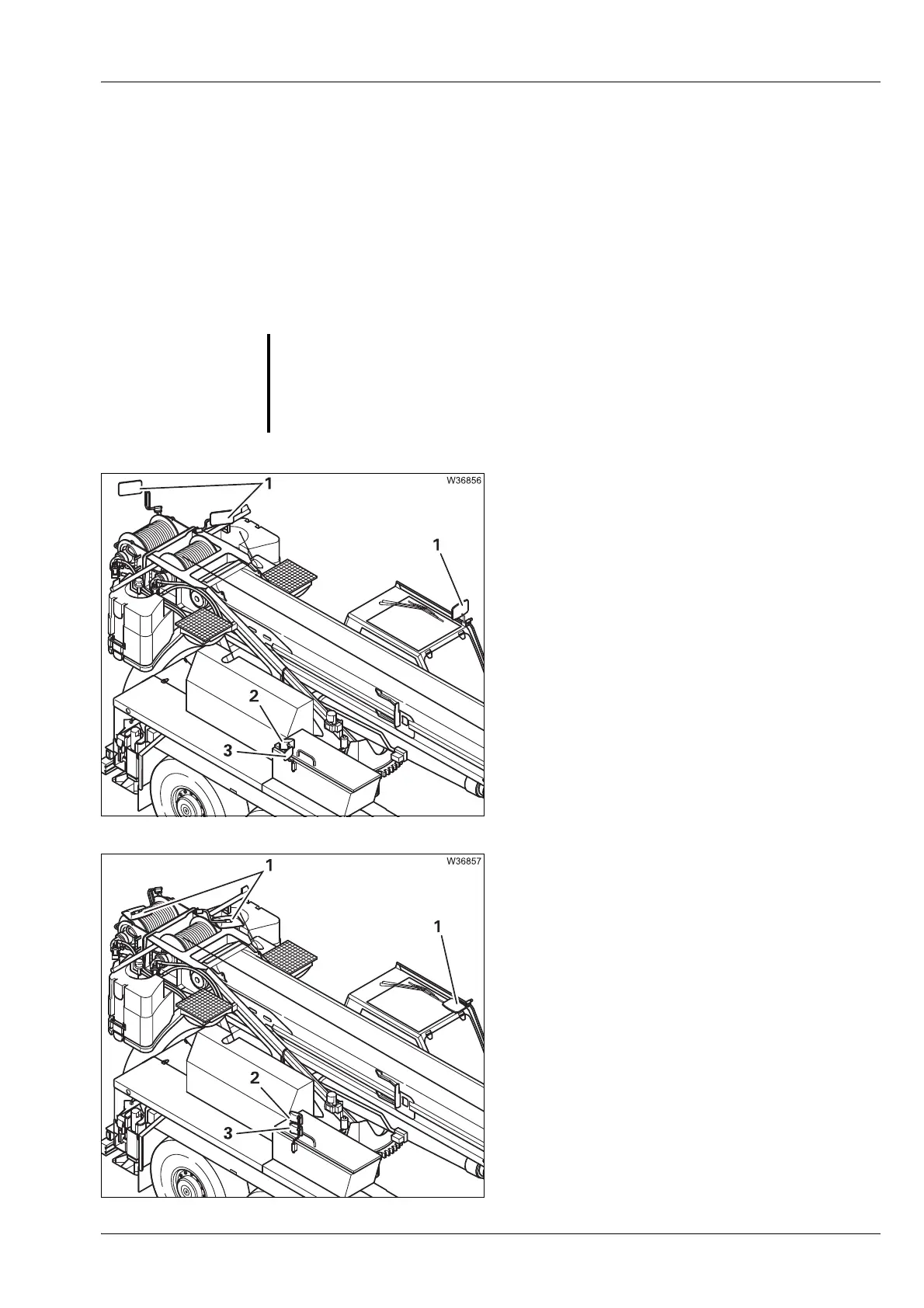

Folding out and adjusting the mirror
• Fold the mirrors (1) upwards.
• Adjust the mirrors in such a way that you have
a clear view of the rope running on the hoist.
• Adjust the mirrors (2) and (3) in such a way that
you can clearly see the right-hand outrigger
beams from the crane cab when the main boom
is raised.
Folding in the mirror
• Fold the mirrors (1) downwards.
• Fold in the mirrors (2) and (3) far enough that
they no longer protrude over the side of carrier.
G
Risk of accidents due to exceeding the permissible dimensions
Fold all mirrors in for driving. With the mirrors folded out, the specified overall
height at on-road level and the specified overall width for driving on roads is
exceeded.
