Operating elements for driving
3.2 Brief description of the operating elements
Operating manual 3 302 819 en 3 - 77
GMK3060
13.12.2018
3.2.22 Access ladders and ladders

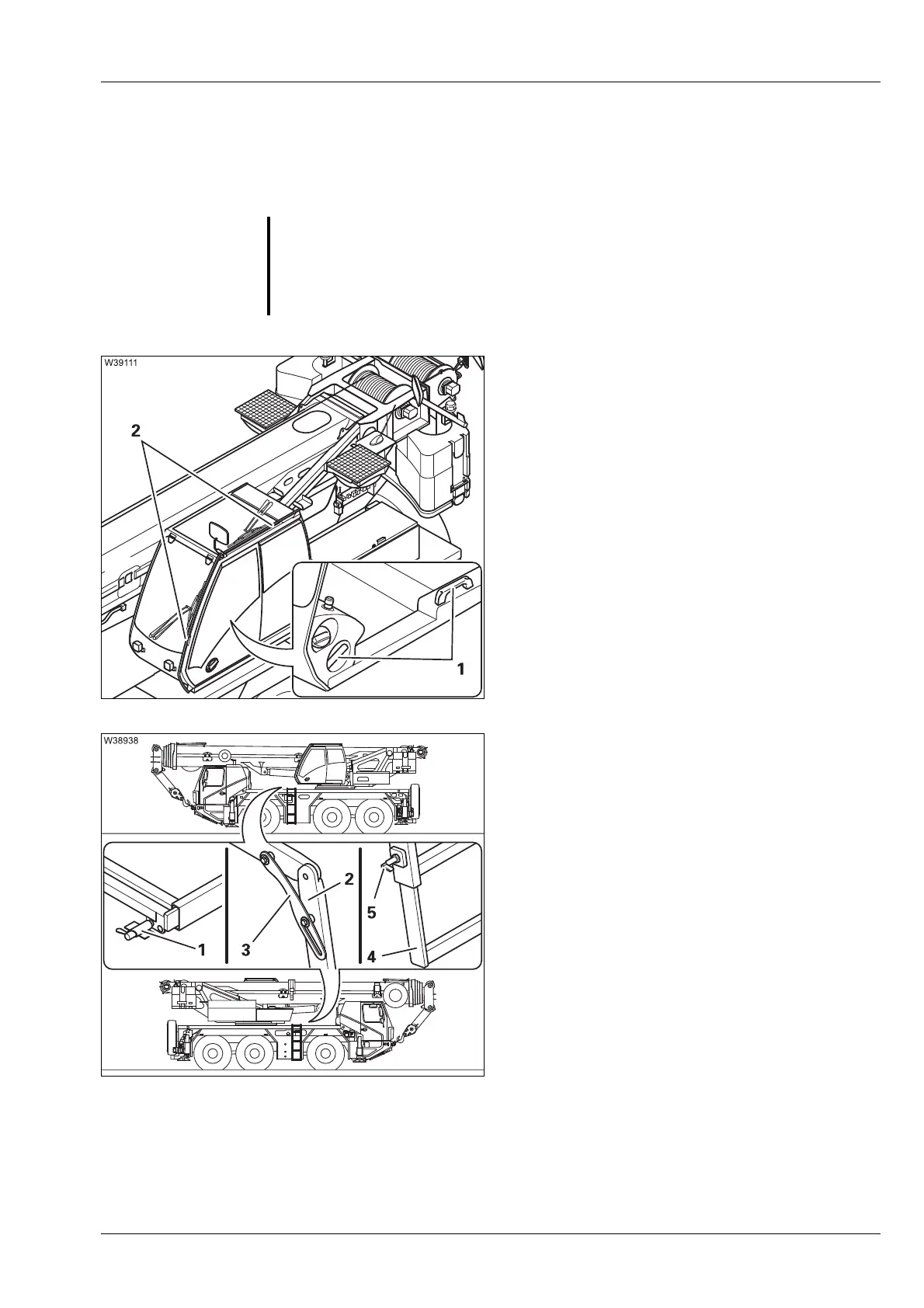

Different handles and ladders are on the truck crane depending on the version.
. Handles
– When the crane cab door is open, you can
reach the handle (1).
– The handle (2) is located on the outside of the
crane cab.
Swing-out ladders
– Folding out
• Release the spring latch (1).
• Swing the ladder (2) outwards and fold
downwards – locking bar (3) engages.
• If need be – release the spring latch (3) and
pull out another access ladder (4).
s
G
Hazard due to unsecured ladders!
Always secure the ladders before driving. The prevents the ladders falling down
or folding out whilst driving and thus endangering other vehicles.
