Rigging work
12.4 Outriggers – Overview – MAXbase slewing range type
Operating manual 3 302 819 en 12 - 21
GMK3060
13.12.2018
12.4.2 Representation in the lifting capacity tables
The outrigger span is always specified in this form
Outrigger length xxxx – outrigger span yyyyy
– The value xxxx is always 6.825 m (22.4 ft).
– The value yyyy depends on the type of outrigger span.

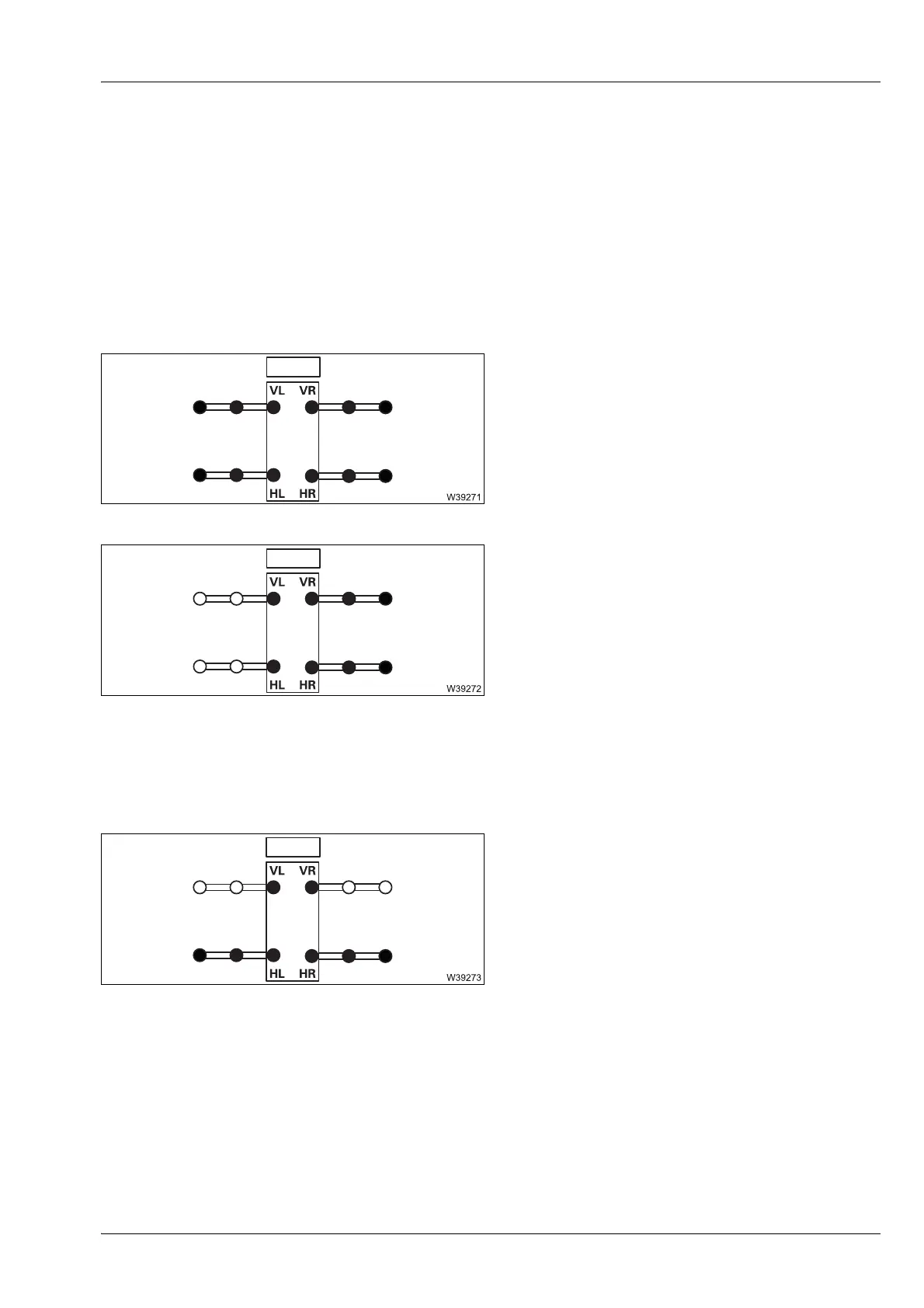

A distinction is made between four types.
Symmetrical
The outrigger span is the same for all outrigger
beams. The overall width is entered once.
For example
Right / Left
The outrigger span is the same at the left side and
the same at the right side – but different between
the right and left sides.
The individual widths for the front and for the rear
are entered. For example
Front / rear
The outrigger span is the same at the front and
the same at the rear – but different between the
front and rear.
The overall width is entered for the front and for
the rear. For example
s
Outrigger span 6.200 m (20.3 ft)
Front outrigger span 3.100 + 1.160 m
(10.2 + 3.8 ft)
Rear outrigger span 3.100 + 1.160 m
(10.2 + 3.8 ft)
Front outrigger span 2.320 m (7.6 ft)
Rear 6.200 m (20.3 ft)
