Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 144 3 302 819 en Operating manual
GMK3060
13.12.2018

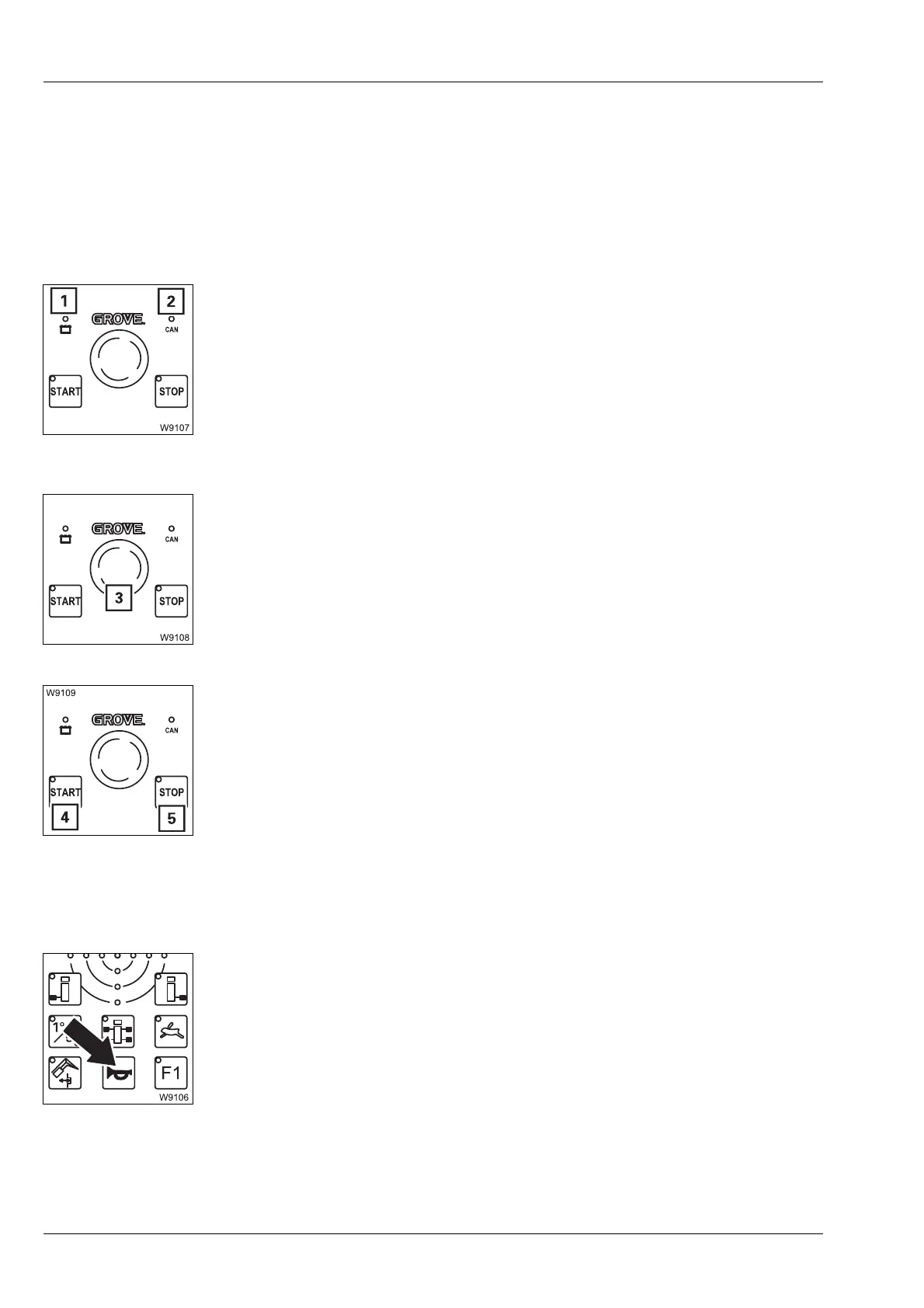

9.2.25 Hand-held control
à Emergency operation with the hand-held control, p. 14 - 43
Engine control
panel
Horn The ignition must be switched on.
1 Voltage monitoring
– Lights up: Ignition on
– Gone out: Switch the ignition off
2 CAN monitoring
– Lights up: Hand-held control connected – no malfunction –
goes out after 20 seconds
– Flashing: Hand-held control connected – malfunction
3 Emergency stop switch
May only be used in an emergency
– Press: Engine off – crane functions stop immediately,
Switch latches
– Turn the latched
switch:
Switch returns to initial position – crane functions
released
4 START engine
– Press once: Engine on
5 STOP engine
– Press once: Engine off
–Press: Hand-held control on the superstructure socket –
superstructure horn on
