Manitowoc GROVE GMK3060

Rigging work
12.4 Outriggers – Overview – MAXbase slewing range type
Operating manual 3 302 819 en 12 - 19
GMK3060
13.12.2018
12.4 Outriggers – Overview – MAXbase slewing range type
The information in this section applies to the MAXbase slewing range type. If you
wish to operate the truck crane using the Standard slewing range type;
à p. 12 - 17.
Symmetrical and various variable outrigger spans are enabled. There are several
different types of outrigger spans, each with several permissible combinations.
Separate Lifting capacity tables for the variable outrigger spans are provided in
digital form. Observe all the specifications and definitions in these tables before
commencing operation.
12.4.1 Definitions
Specific terms and graphical illustrations are used in the description.

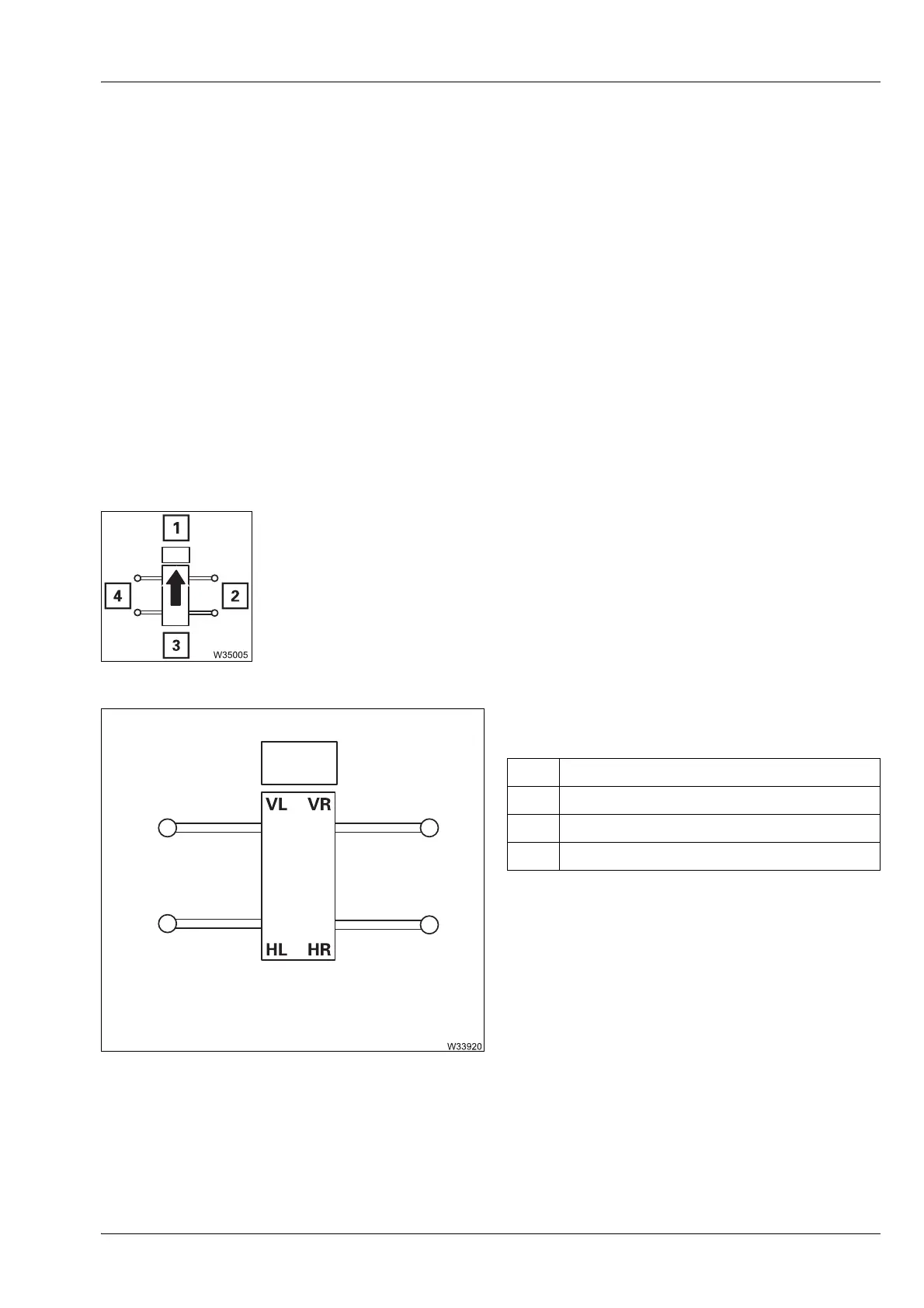

Positional references
The directional information is always based on the carrier regardless of the
position of the superstructure.
Designation of the outrigger beams
s
1: Front 2: Right
3: Rear 4: Left
FL Front left
FR Front right
RL Rear left
RR Rear right
