Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
Operating manual 3 302 819 en 9 - 151
GMK3060
13.12.2018
9.3.2 Transmission
Operating the transmission when driving with rigged truck crane;
à Operating the transmission, p. 13 - 24.
The following applies to all operating elements:
– Driving mode must be switched on
–The Service brake pedal must be applied
– The truck crane must be stationary.

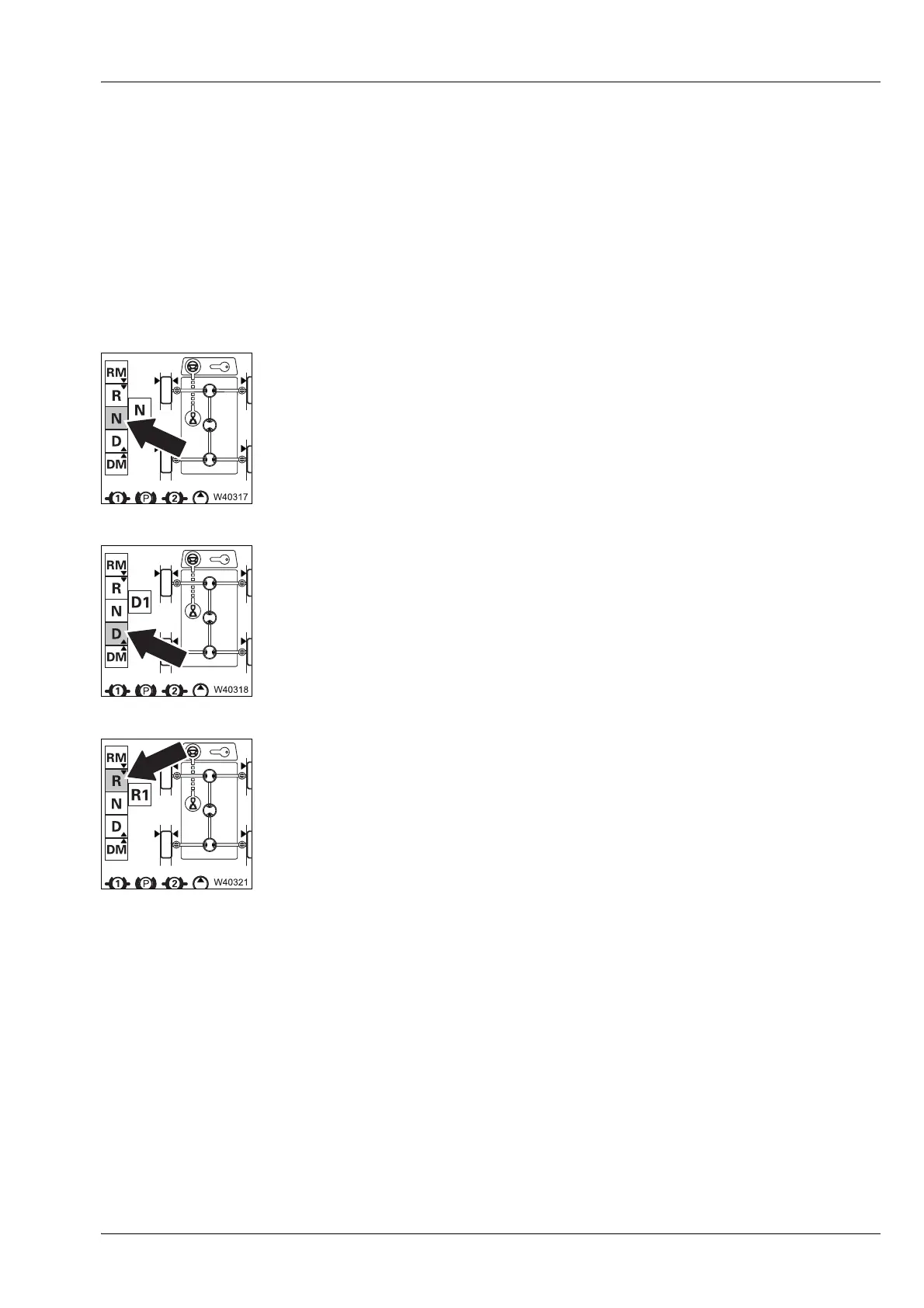

Neutral position N
Transmission mode D
Transmission mode R
s
– Switch on: Select and confirm symbol – letter is white –
no gear engaged
– Switch off: Shift to a different gear – letter is blue
– Switch on: Select and confirm symbol – letter is white
– Select forwards starting gear
– Crane's hydraulic system Driving mode off
– Crane movements disabled
– Switch off: Shift to a different gear – letter is blue
– Switch on: Select and confirm symbol – letter is white
– Select reverse starting gear
– Crane's hydraulic system Driving mode off
– Crane movements disabled
– Switch off: Shift to a different gear – letter is blue
