Operating elements for driving
3.1 Overview of the operating elements
Operating manual 3 302 819 en 3 - 21
GMK3060
13.12.2018

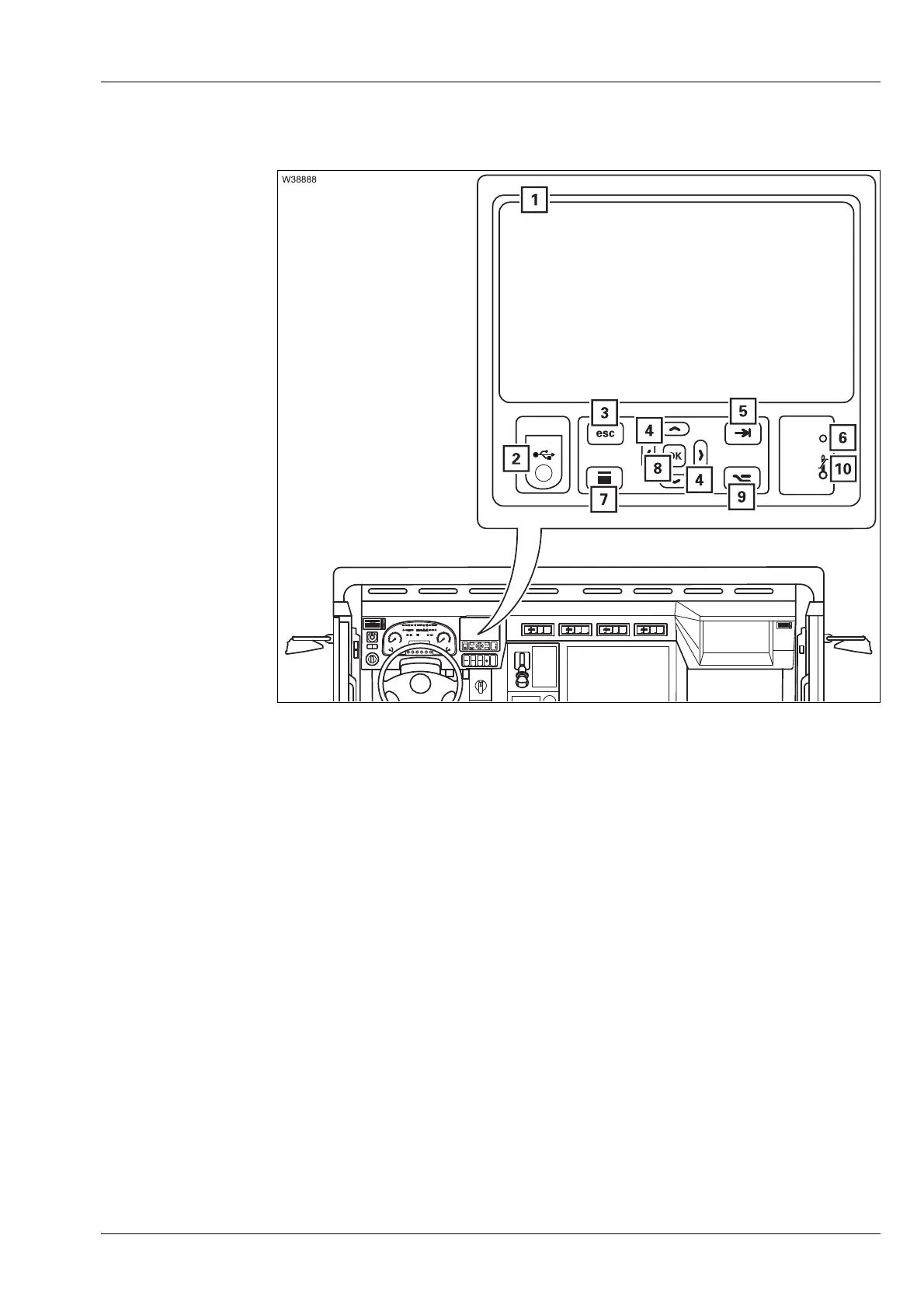

3.1.8 CCS control unit
1 CCS display
– Menu-independent displays
– Overview start menu
à p. 3 - 50
à p. 3 - 22
à p. 3 - 23
2 Service/diagnostics connection
1)
à p. 3 - 75
3 Exiting the menu/input mode
à p. 3 - 50
4 Selector buttons
à p. 3 - 50
5 Selecting / deselecting favourites
à p. 3 - 52
6 Sensor – no function
à p. 3 - 51
7 Overview menu groups – Operation
Overview menu groups – Overview
à p. 3 - 51
à p. 3 - 24
8 Input confirmation
à p. 3 - 50
9 No function
10 Display temperature warning display
à p. 3 - 51
1)
For Service personnel only, not suitable for external devices, e.g. mobile
phone
