Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 110 3 302 819 en Operating manual
GMK3060
13.12.2018
9.2.15 Auxiliary hoist
Control panels

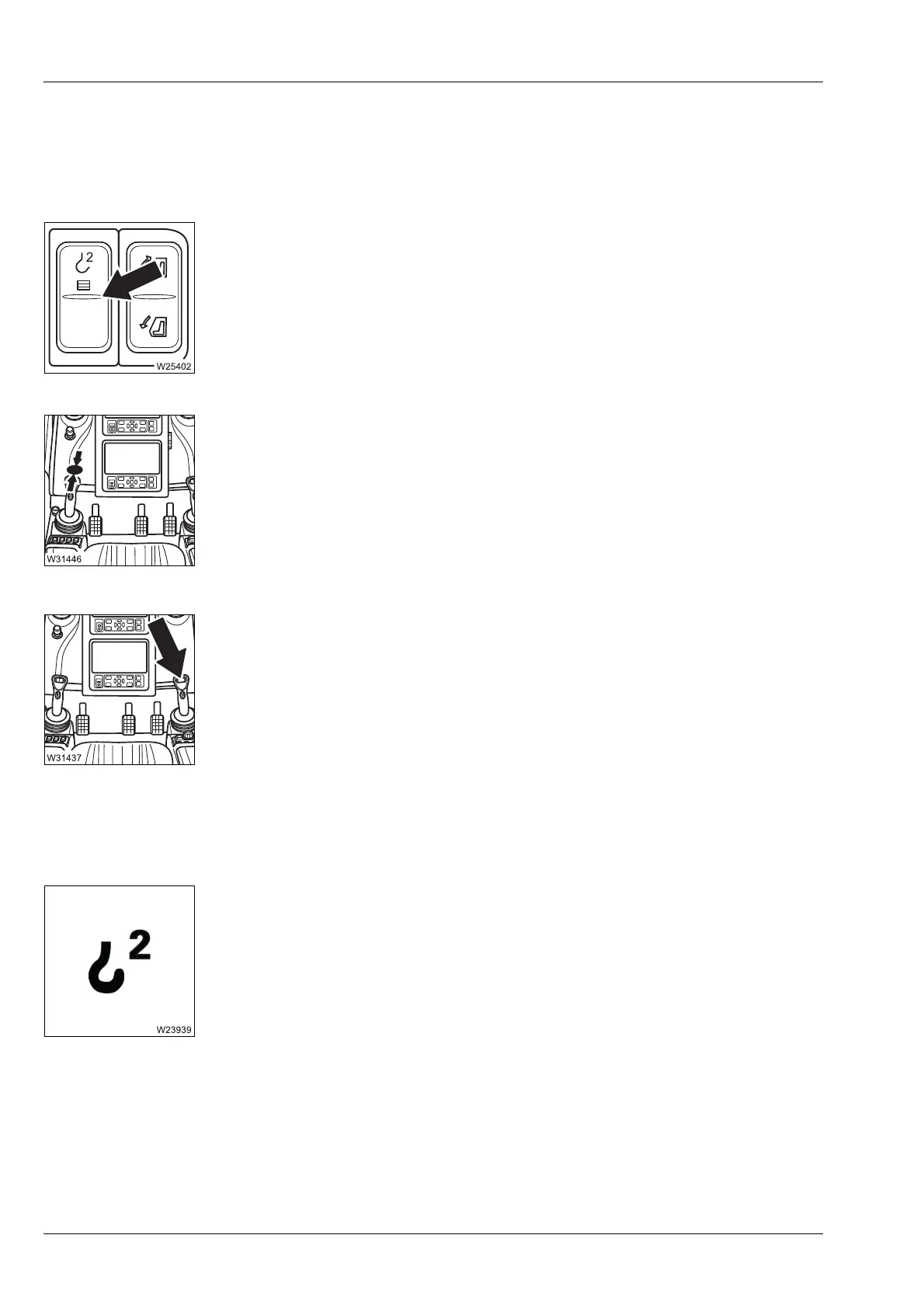

Auxiliary hoist on/off
There is a lamp in the button.
Left control lever
Hoist high-speed mode on/off
Parking brake is engaged – press in the button
CCS display
Power units display
– Press once: – Lamp bright – auxiliary hoist on
– Lamp dim – auxiliary hoist off
à p. 11 - 85
– Back: Raise
–Forward: Lower
à p. 11 - 86
– Left: High-speed mode on, off when released
– Once to the right: High-speed mode on – continuous operation
– Once to the right or
once to the left:
High-speed mode off
à p. 11 - 120
–Green: Auxiliary hoist on
– Red: Auxiliary hoist off
