Rigging work
12.5 Operating the outriggers
12 - 30 3 302 819 en Operating manual
GMK3060
13.12.2018
6. Switch off the engine;
à In the driver's cab, p. 4 - 19,
à In the crane cab, p. 10 - 11
à On the outrigger control units, p. 4 - 19.
12.5.3 Preparing the truck crane
You can switch the Outriggers control units and Outrigger lighting on and off from
the crane cab.

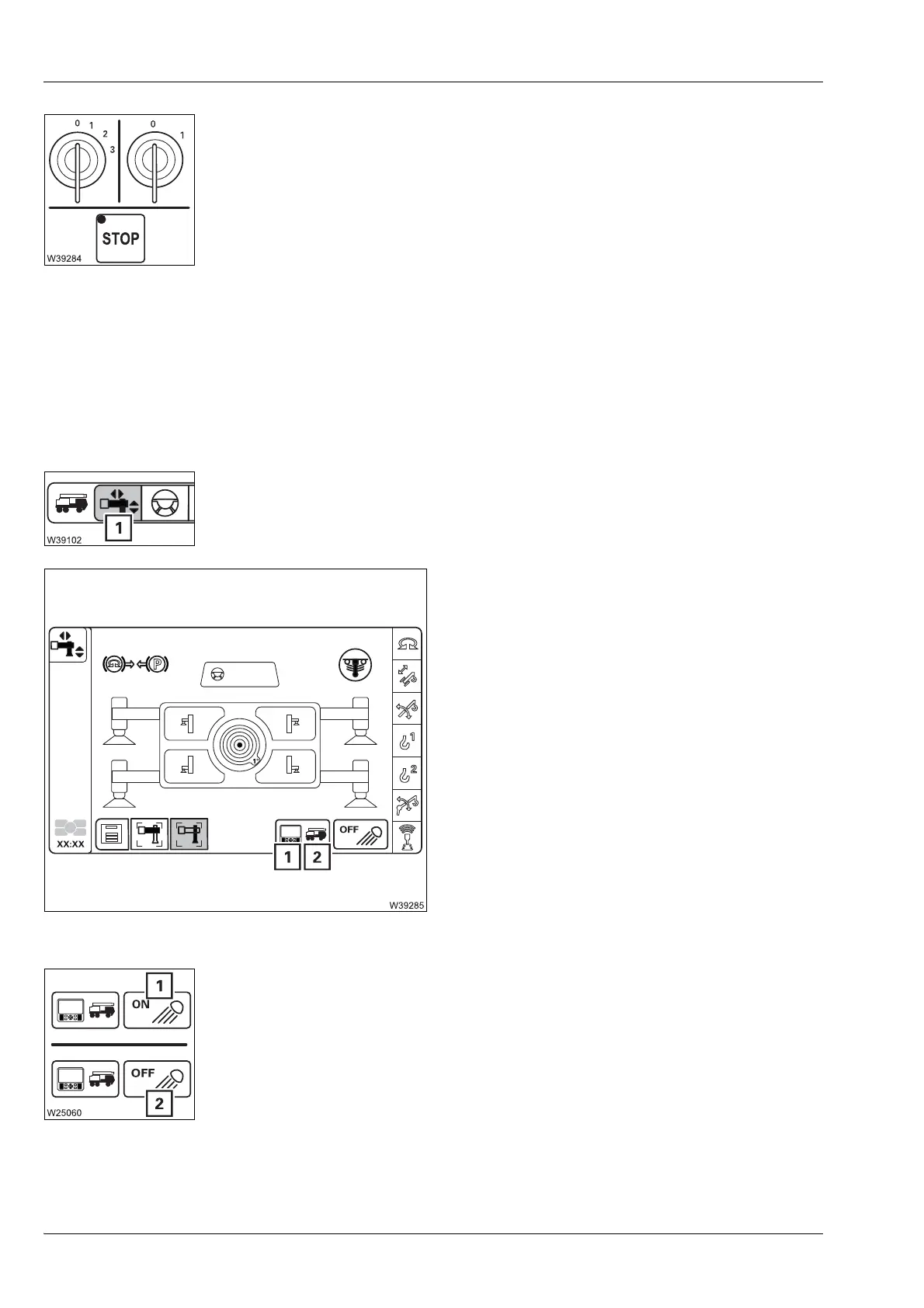

• Open the Outrigger menu (1).
Outrigger control units
The current status is displayed, either the
symbol (1) or (2) grey.
– Switching on
• Select and confirm the symbol (1) –
symbol (1) red symbol (2) grey.
Warning messages on the CCS display
– Switching off
• Select and confirm the symbol (2) –
symbol (2) orange symbol (1) grey.
Enable operation on the CCS display
Outrigger lighting
– Switching on
Select symbol (1) and confirm – Input mode on
– Switching off
Select symbol (2) and confirm – Input mode off.
