Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 819 en 11 - 61
GMK3060
13.12.2018

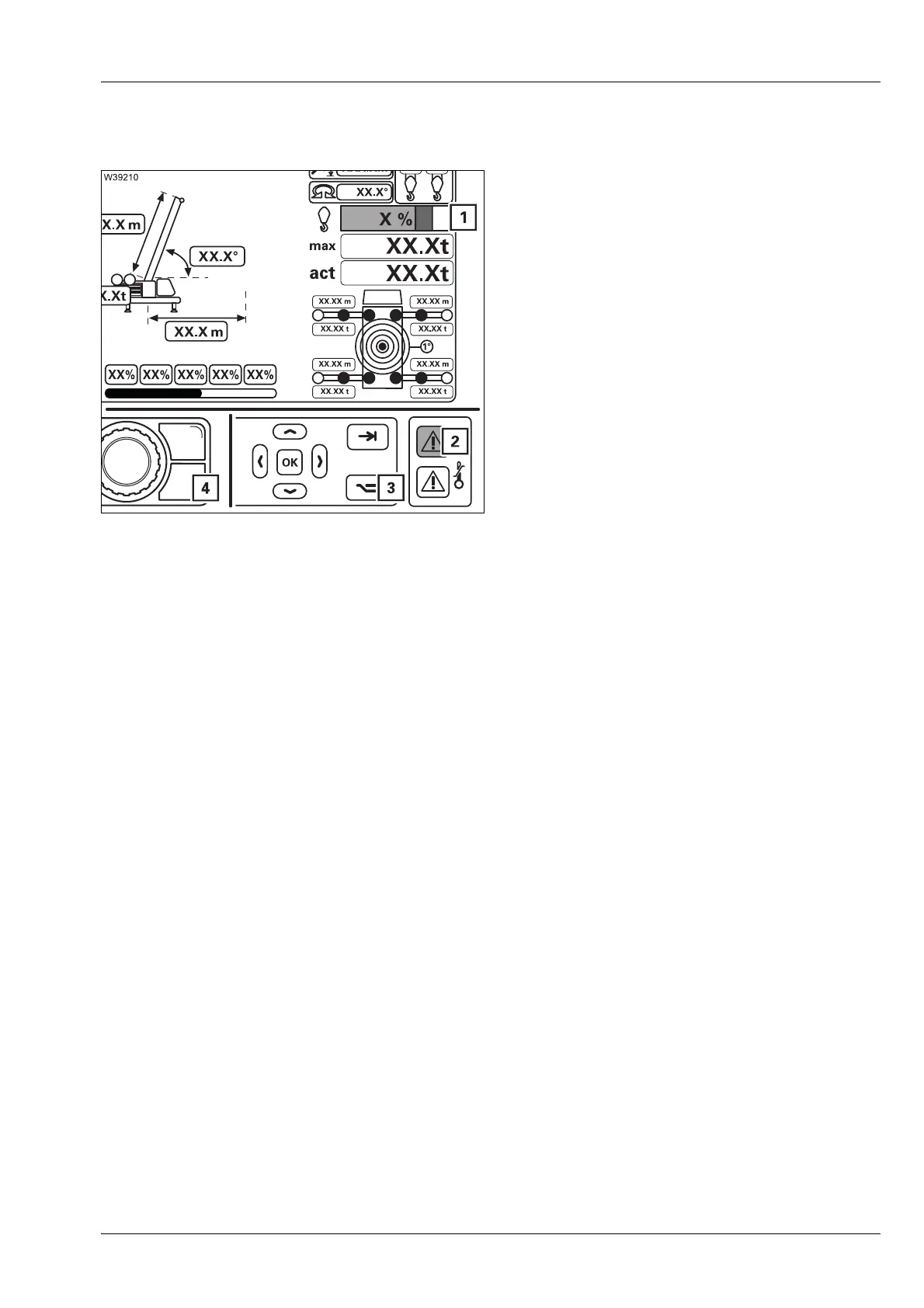

11.4.7 RCL early warning
If about 90% of the maximum permissible load is
exceeded, an RCL early warning will be issued.
– An intermittent buzzer tone will sound.
After five seconds, you can switch off the
buzzer tone using button (3) or (4).
– The lamp (2) lights up.
– The display (1) is in the yellow range.
H
If the current crane continues to move in the same direction, there will be an RCL
shutdown.
11.4.8 RCL shutdown
There are different types of RCL shutdowns
– Shutdown due to overload
– Shutdown due to an error;
à p. 14 - 8.
– Shutdown due to working range limiter;
à p. 11 - 149.
Shutdown due to
overload
If about 100% of the maximum permissible load is exceeded, shutdown will occur
due to overload.
s
