Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 108 3 302 819 en Operating manual
GMK3060
13.12.2018

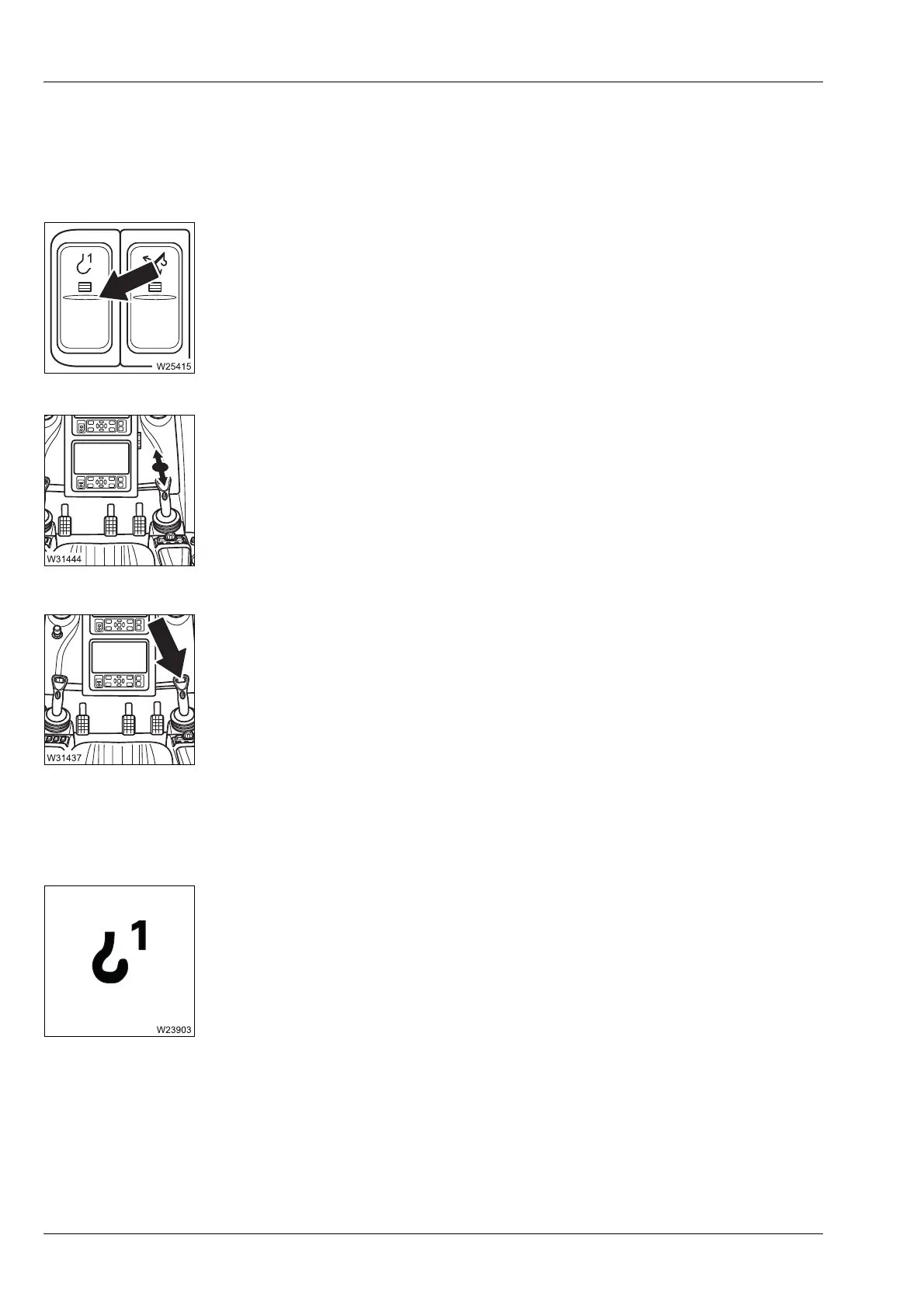

9.2.14 Main hoist
Control panels
Main hoist on/off
There is a lamp in the button.
Right control lever
Hoist high-speed mode on/off
Parking brake is engaged – press in the button
CCS display
Power units display
– Press once: – Lamp bright – main hoist on
– Lamp dim – main hoist off
à p. 11 - 82
– Back: Raise
–Forward: Lower
à p. 11 - 83
– Left: High-speed mode on, off when released
– Once to the right: High-speed mode on – continuous operation
– Once to the right or
once to the left:
High-speed mode off
à p. 11 - 120
–Green: Main hoist on
– Red: Main hoist off
