Operating elements for driving
3.2 Brief description of the operating elements
Operating manual 3 302 819 en 3 - 75
GMK3060
13.12.2018
3.2.19 Diagnostics
The diagnostics connections may only be operated by service staff from the
engine manufacturer/transmission manufacturer, or by
Manitowoc Crane Care.
Under the covering (4)
3.2.20 Front flap
The front flap has two locks. For securing, one of the two locks can only be
released from the driver's cab.
Opening
– To release, pull the lever (1),
– Press the lever (6) to the right and fold the front
flap (5) up,
– Fold up the support (3) and attach to the
holder (4).
Closing
– Lift the front flap (5).
– Pull the support (3) from the holder (4) and
secure it in the holder (2)
– Fold down the front flap,
– Press the front flap against the driver's cab until
you can hear it latch into place.

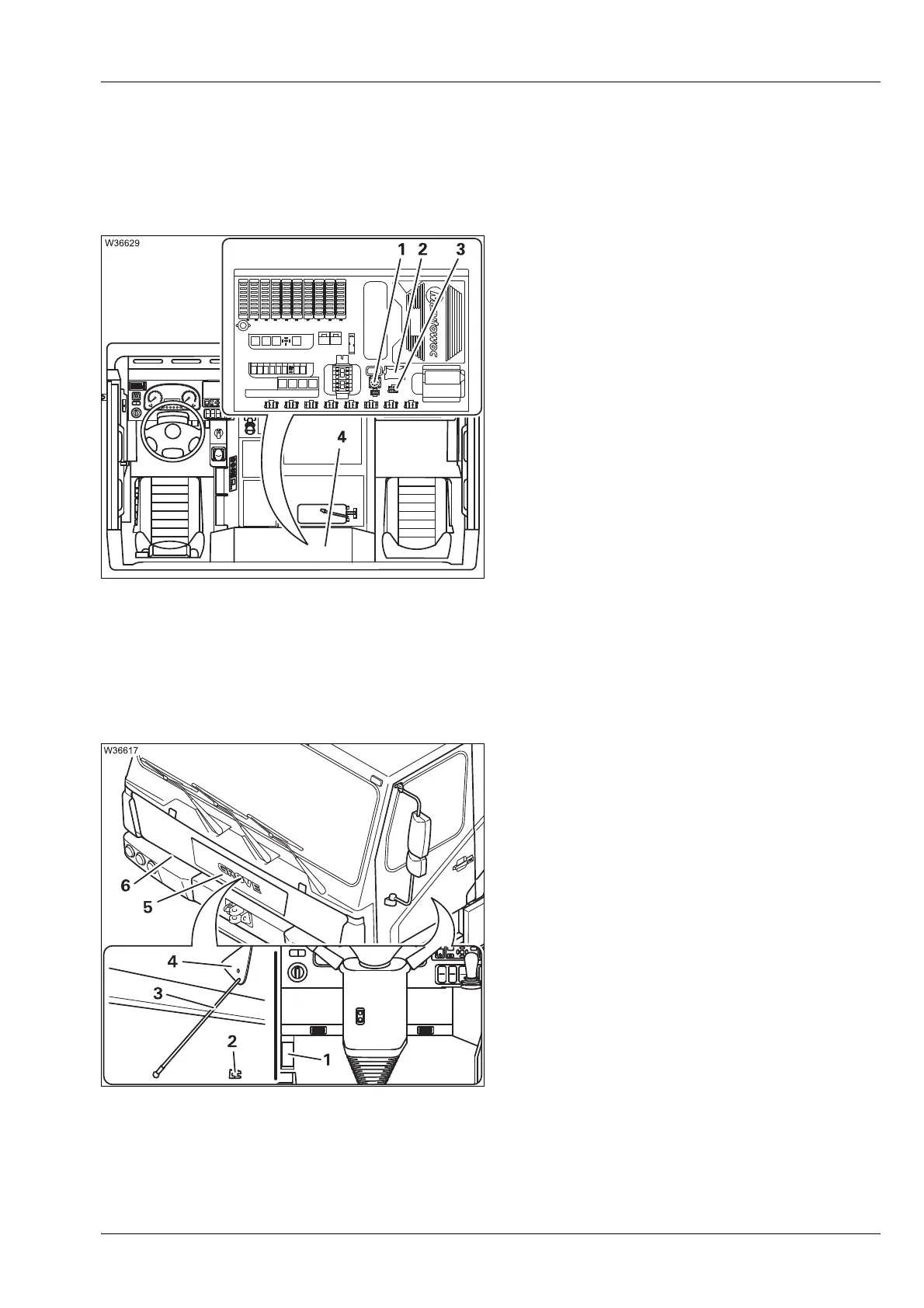

1 Carrier electronics diagnostics
2 Transmission diagnostics
3 Engine diagnostics
