Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 88 3 302 819 en Operating manual
GMK3060
13.12.2018

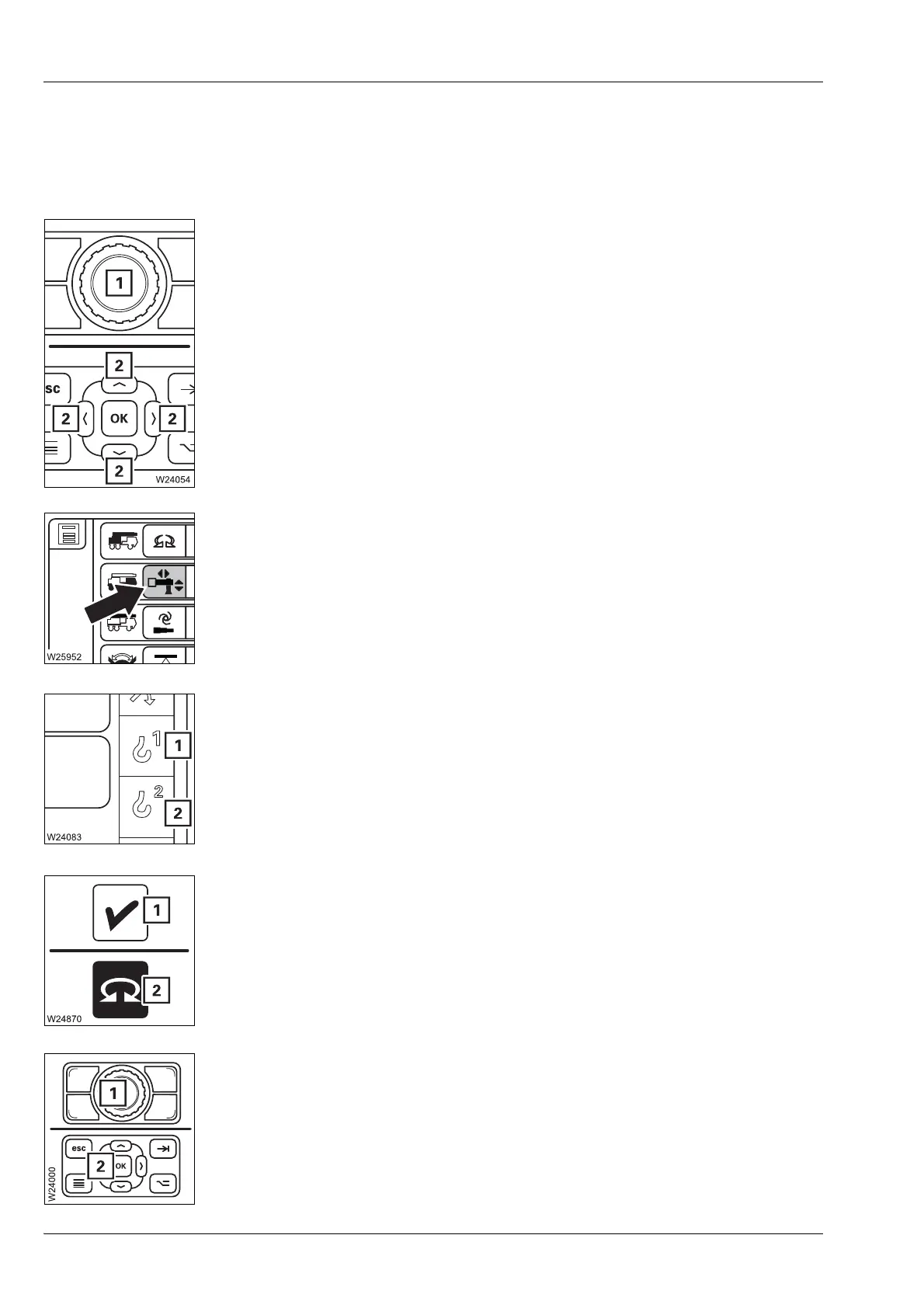

9.2.2 General rules for buttons and symbols on the display
The symbols shown as an example are not present on all crane types. The fol-
lowing rules apply in all menus:
– A menu can only be opened if the relevant symbol has been selected with the
jog dial (1) or direction buttons (2).
– A selected menu is marked in colour and can be opened.
– Symbols can be shown in different colours. The colour of the symbol indicates
the current switching state of the relevant power unit.
– In these operating instructions, we always refer to colours in terms of e.g.
“The symbol is red”.
Regardless of whether the background (1) of a symbol is red or whether only
parts (2) of a symbol are red. This applies to all symbols and all colours.
If the instruction given in this section is to “Press the button once...”, for instance,
this always refers to the button (1) or (2). This is the case if a menu is opened or
a function is to be carried out.
1Grey: e.g. main hoist – off
2 Green: e.g. auxiliary hoist – on
