Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 98 3 302 819 en Operating manual
GMK3060
13.12.2018

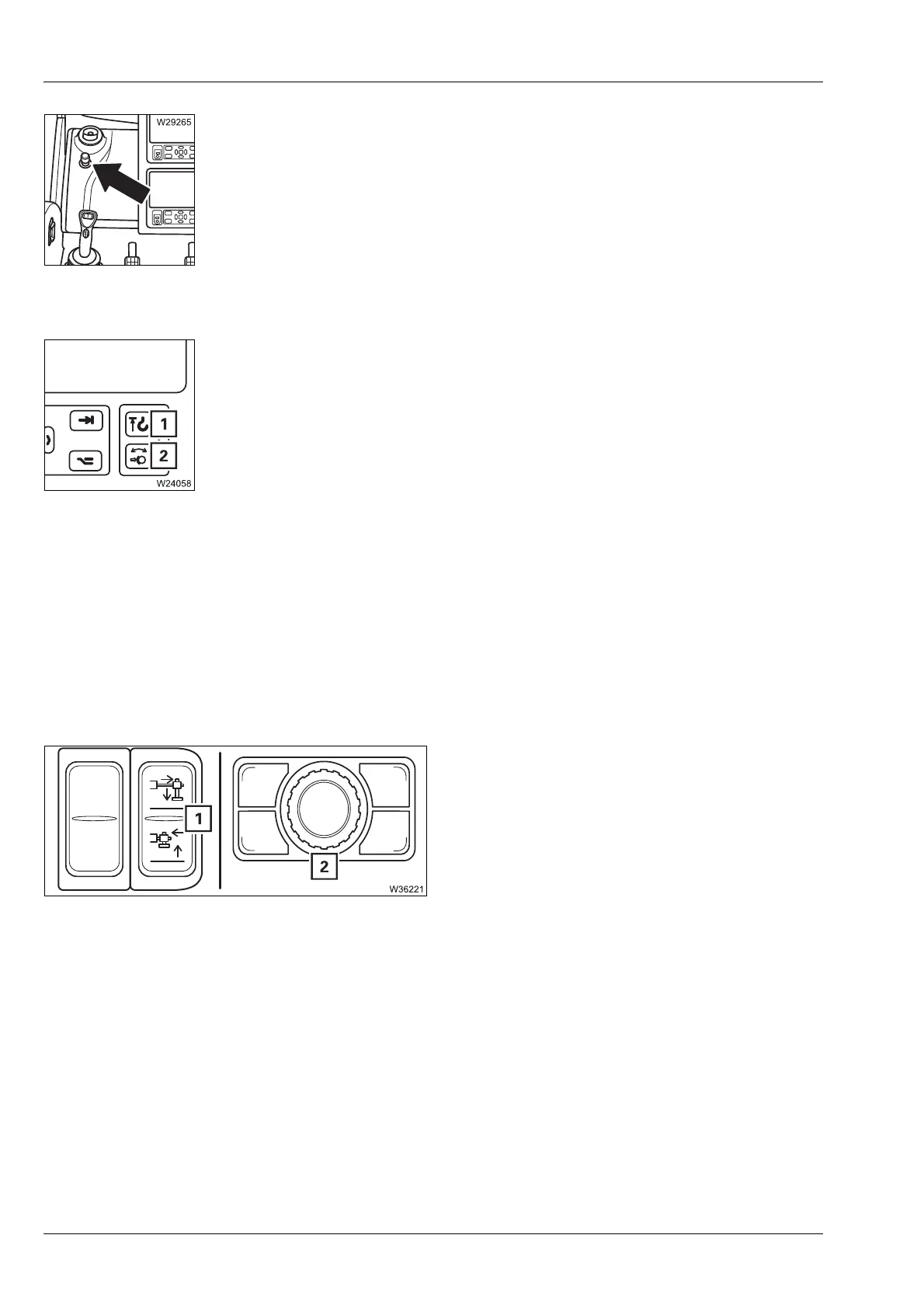

Emergency stop switch
May only be used in an emergency.
Other
9.2.8 Outrigger – crane cab
à Extending/retracting outrigger beams, p. 12 - 33
à Extending/retracting supporting cylinders, p. 12 - 39
Control panels
Short description on the CCS display
– Press: Engine off – crane functions stop immediately.
Switch latches
– Turn the latched switch: Switch returns to initial position – crane functions
released
à p. 10 - 12
1 Lifting limit switch warning;
à p. 9 - 109
2 Checking the slewing gear brake;
à p. 9 - 112
1 Left – Moving the outrigger;
à p. 9 - 100
2 Right – Outrigger pre-selection;
à p. 9 - 100
