Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 97
GMK3060
13.12.2018

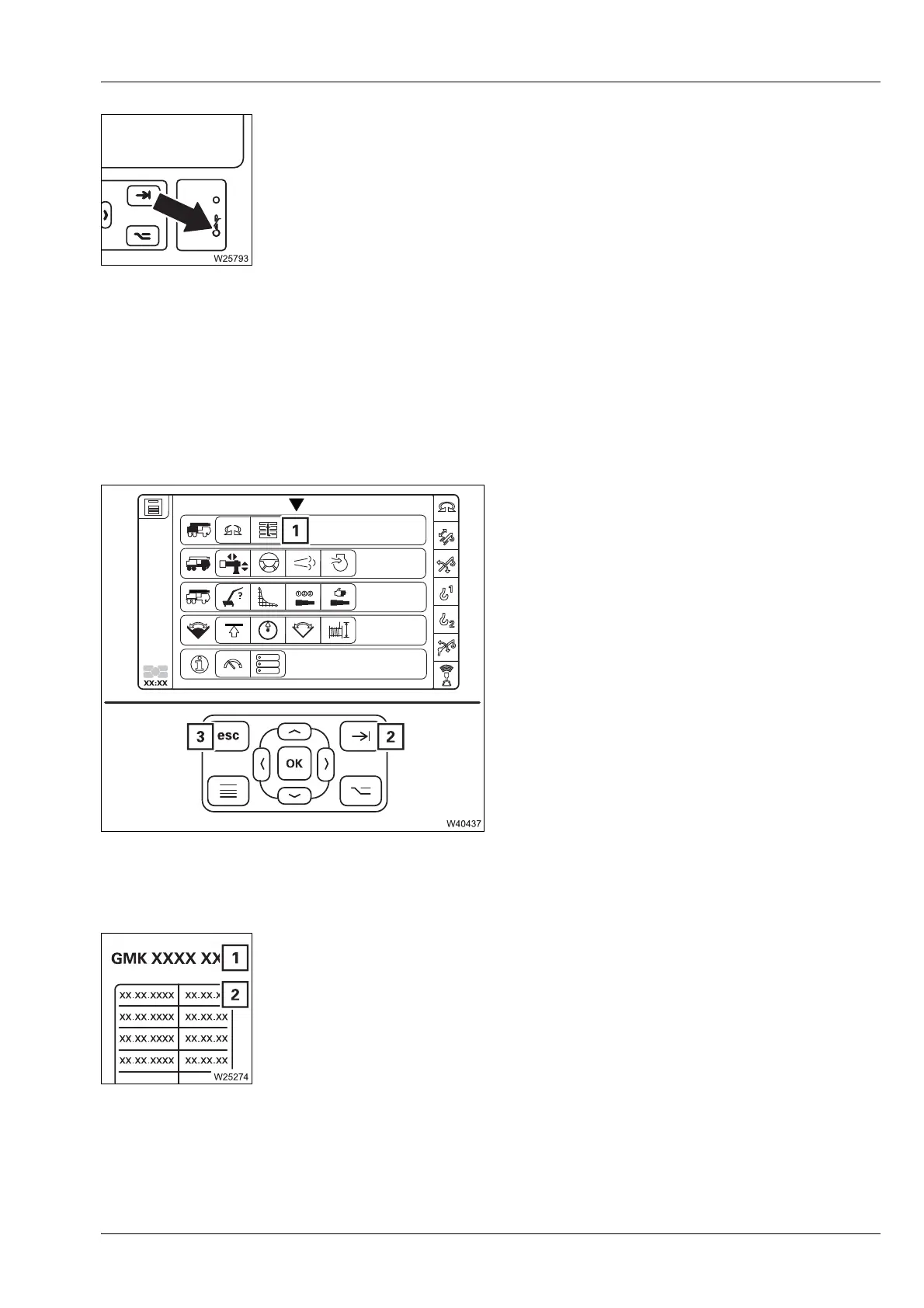

Display temperature warning display
The temperature of the control unit is measured by an internal sensor.
Selecting / deselecting favourites
Several symbols can be selected as favourites. The cursor jumps directly from
favourite to favourite when scrolling through the menu groups.
Select
A symbol is selected, such as symbol (1).
Deselect
– Individually
The favourites symbol is selected.
–All
Any desired symbol is selected.
Serial number and programme version display
s
– Blue, flashing: Temperature too low – display will not be switched on
Temperature too high:
– Red, lights up: Brightness is reduced
– Yellow, flashing: Display is switched off
– Red, flashing: Control unit is switched off
à Temperature on the display, p. 11 - 35
2 Press
The symbol is marked as a favourite.
2 Press
The favourites selection is cancelled.
2 + 3 Press
All favourite selections are removed.
1 Truck crane serial number
2 Current program version of the crane control – always specify in the event
of a malfunction;
à p. 14 - 3
