Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 87
GMK3060
13.12.2018
9.2 Brief description of the operating elements
H
This section does not contain all the requirements that must be fulfilled for several
operating elements to be active.
If some operating elements do not work, first read the subsequent chapters
referred to at the respective places before contacting
Manitowoc Crane Care.
9.2.1 Definition of direction information
Basic rule Directions always depend on whether the carrier or the superstructure is being
operated.
On the carrier
The driver's cab is always at the front, which means that:
Forwards always means the driver's cab is to the front.
Backwards always means the rear lights on the carrier are to the front.
On the superstructure
The main boom head is always at the front, which means that:
G
Risk of accident by operating error!
This section is not a complete operating manual. It only provides a general over-
view of the functionality of the operating elements.
Before using the operating elements for the first time, read through the following
chapters and the safety instructions listed there.

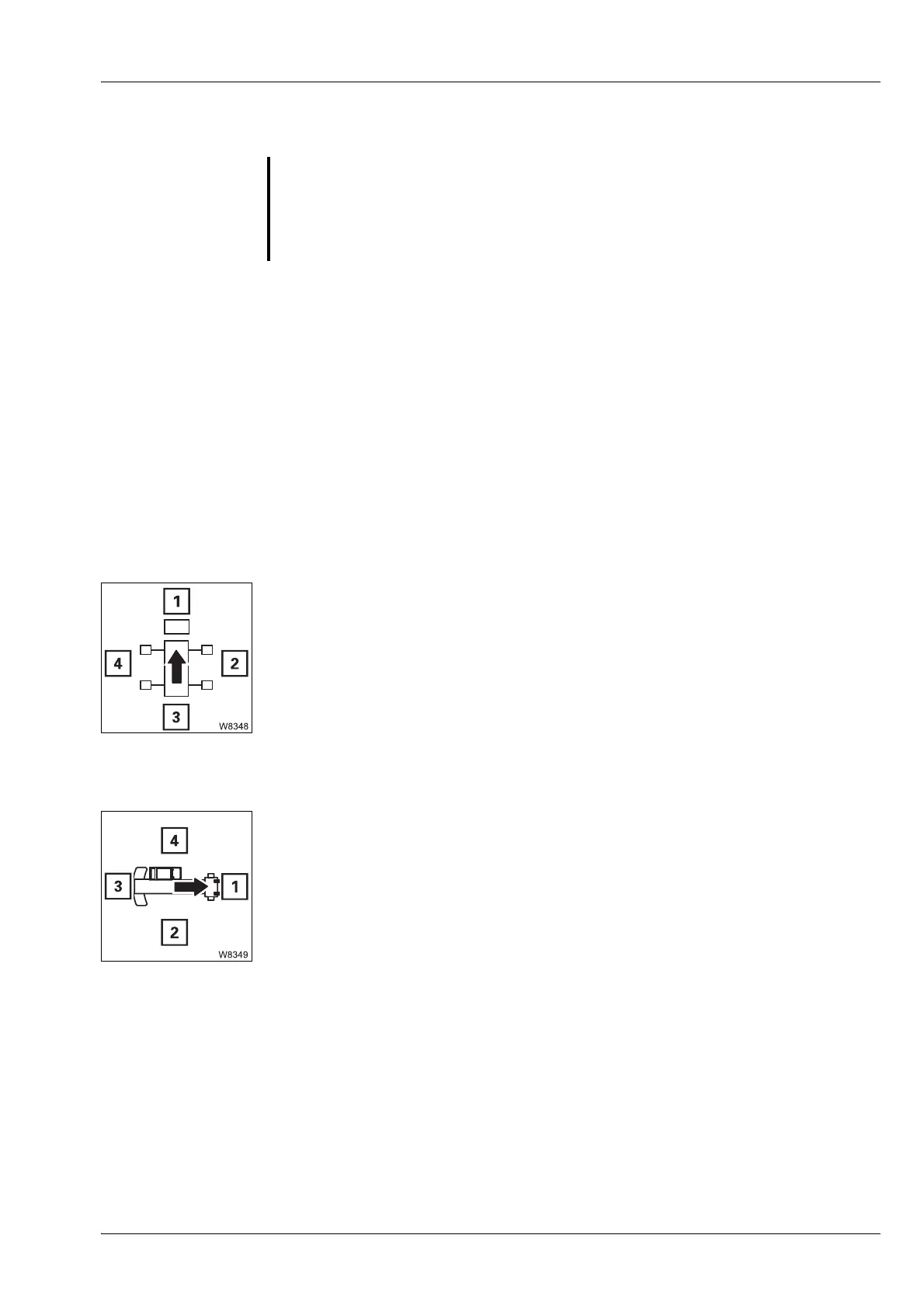

1: front 2: right
3: rear 4: left
1: front 2: right
3: rear 4: left
