Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 105
GMK3060
13.12.2018

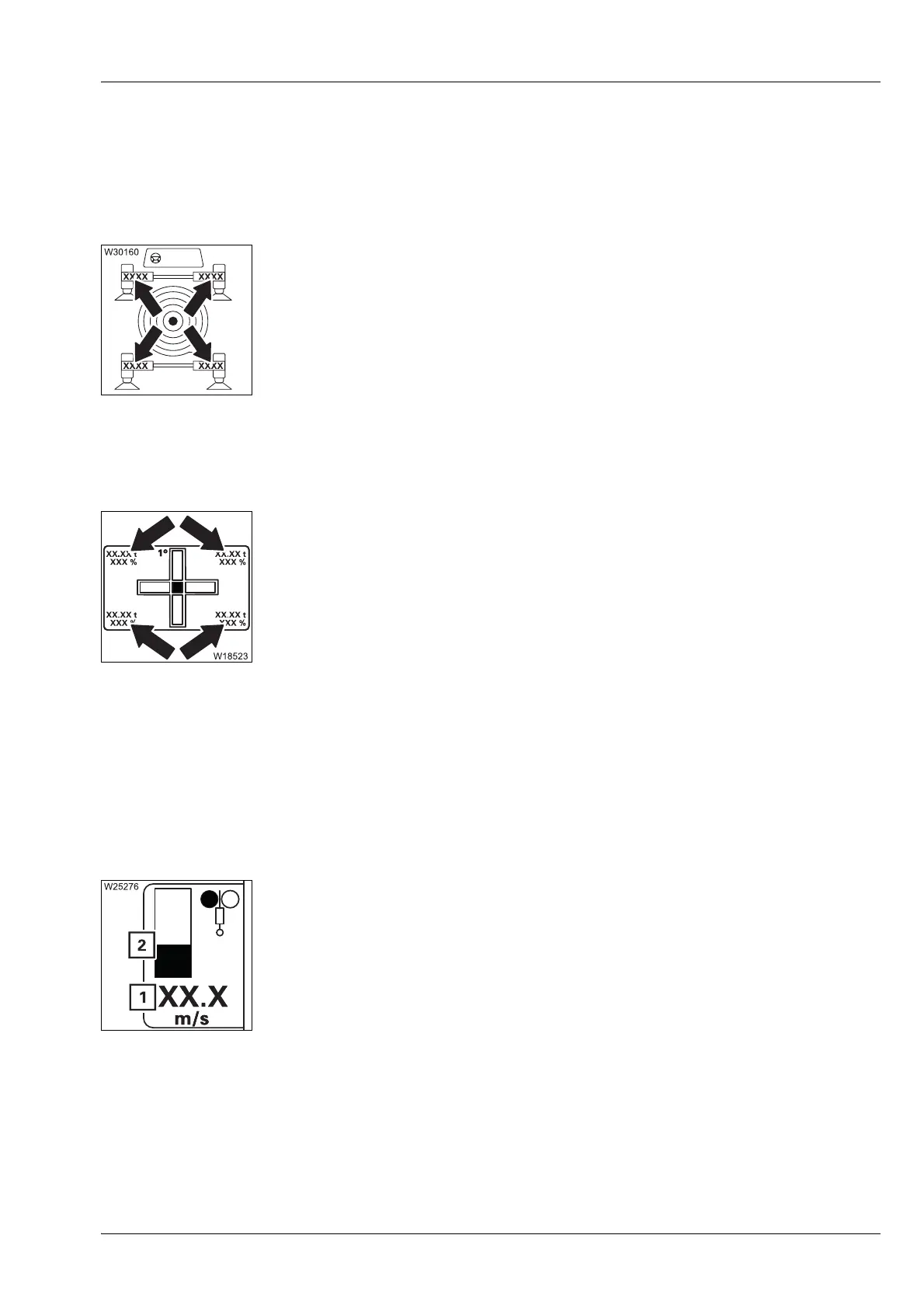

9.2.11 Outrigger pressure displays
Outrigger menu
Outrigger pressure display
Outrigger
control units
Outrigger pressure display
9.2.12 Anemometer displays
This function is the same in all the menus.
The anemometer is electrically connected.
v
max
= maximum permissible/reduced wind speed as shown in the Lifting capacity
table
– Unit of
measurement:
Displayed depending on setting
– t – tons or
– klbs – kilopounds – (1 kilopound = 1,000 lbs)
– Precision: One decimal place
à p. 12 - 48
– Unit of measure-
ment:
Lights up depending on setting
– t – tons or
– klbs – kilopounds – (1 kilopound = 1,000 lbs)
– Precision: When in t, one place of decimals
When in klbs, no places of decimals
à p. 12 - 49
1 Display in metres per second (m/sec) or Beaufort scale (B)
2 Variable measurement range – 100% = v
max
– Green: Display (1) ≤ 90% of v
max
– Red: Display (1) > 90% of v
max
à p. 11 - 78
