1.5 Technical data
1 - 10 3 302 819 en Operating manual
GMK3060
13.12.2018

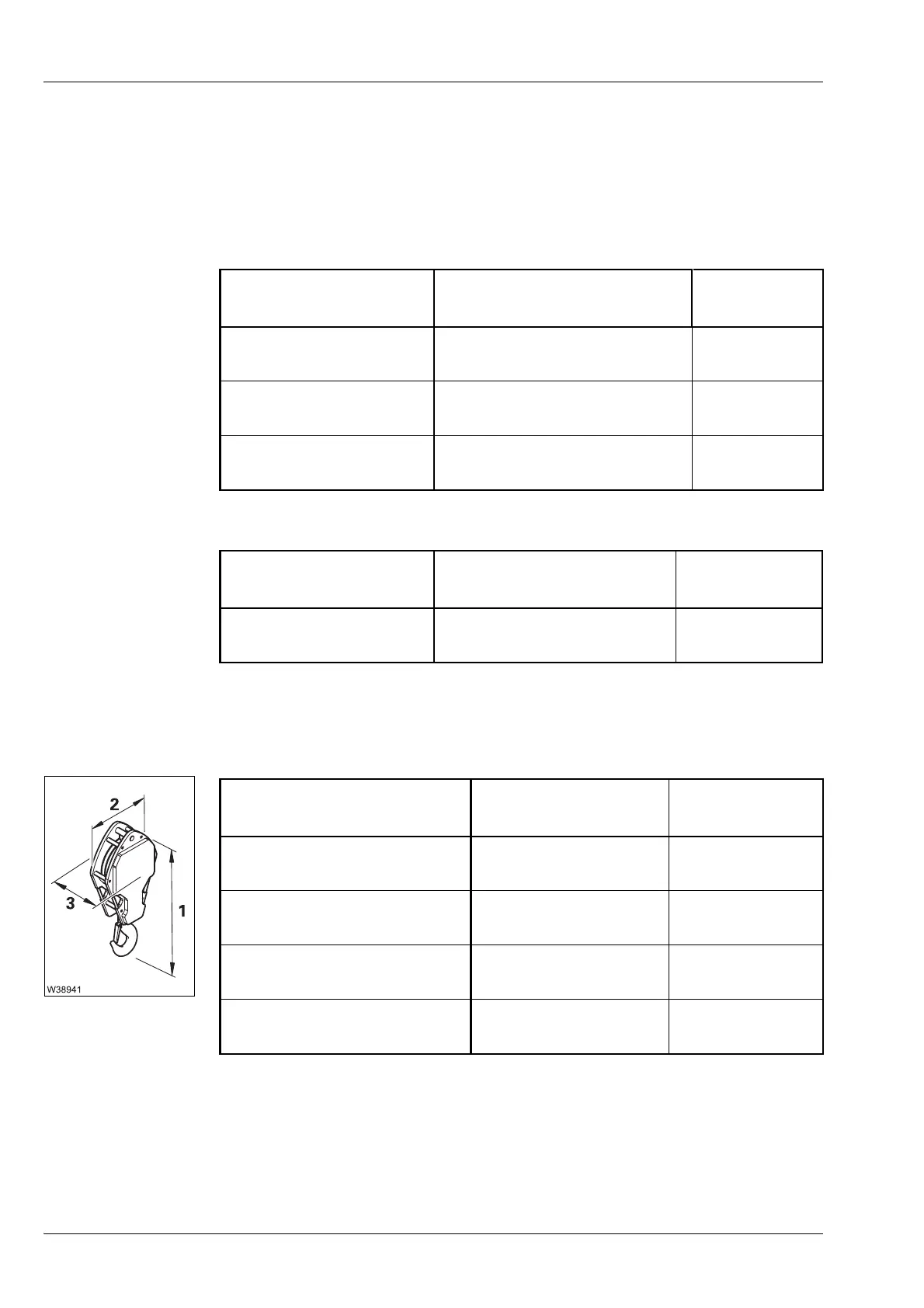

1.5.3 Dimensions and weights of removable parts
This section contains the dimensions and weights of the parts that can be
removed for on-road driving;
à Driving modes, p. 6 - 1.
Spare wheel
Outriggers
Hook blocks
Designation
Length x width x height
in m (ft)
Weight
in kg (lbs)
Spare wheel 385/95 R 25 1.36 x 1.36 x 0.40
(4.45 x 4.45 x 1.30)
245
(540)
Spare wheel 445/95 R 25 1.50 x 1.50 x 0.45
(4.95 x 4.95 x 1.50)
332
(732)
Spare wheel 525/80 R 25 1.50 x 1.50 x 0.53
(4.92 x 4.92 x 1.74)
362
(798)
Designation
Diameter x Height
in m (ft)
Weight
in kg (lbs)
Steel outrigger pads,
front, each
0.51 x 0.51 x 0.20
(1.67 x 1.67 x 0.66)
36 (80)
Designation
(1) x (2) x (3)
in m (ft)
Weight
in kg (lbs)
Single or double hook,
5 sheaves
1.50 x 0.55 x 0.40
(4.90 x 1.80 x 1.30)
550
(1,215)
Single or double hook,
3 sheaves
1.40 x 0.55 x 0.30
(4.60 x 1.80 x 1.00)
360
(795)
Single hook, 1 sheave 1.35 x 0.55 x 0.25
(4.45 x 1.80 x 0.82)
210
(465)
Hook tackle 0.90 x 0.35 x 0.35
(2.95 x 1.15 x 1.15)
100
(220)
