Manitowoc GROVE GMK3060

Overview
1.5 Technical data
Operating manual 3 302 819 en 1 - 11
GMK3060
13.12.2018
Counterweight
sections
The stability of the crane rigged with the counterweight sections delivered has
been tested.

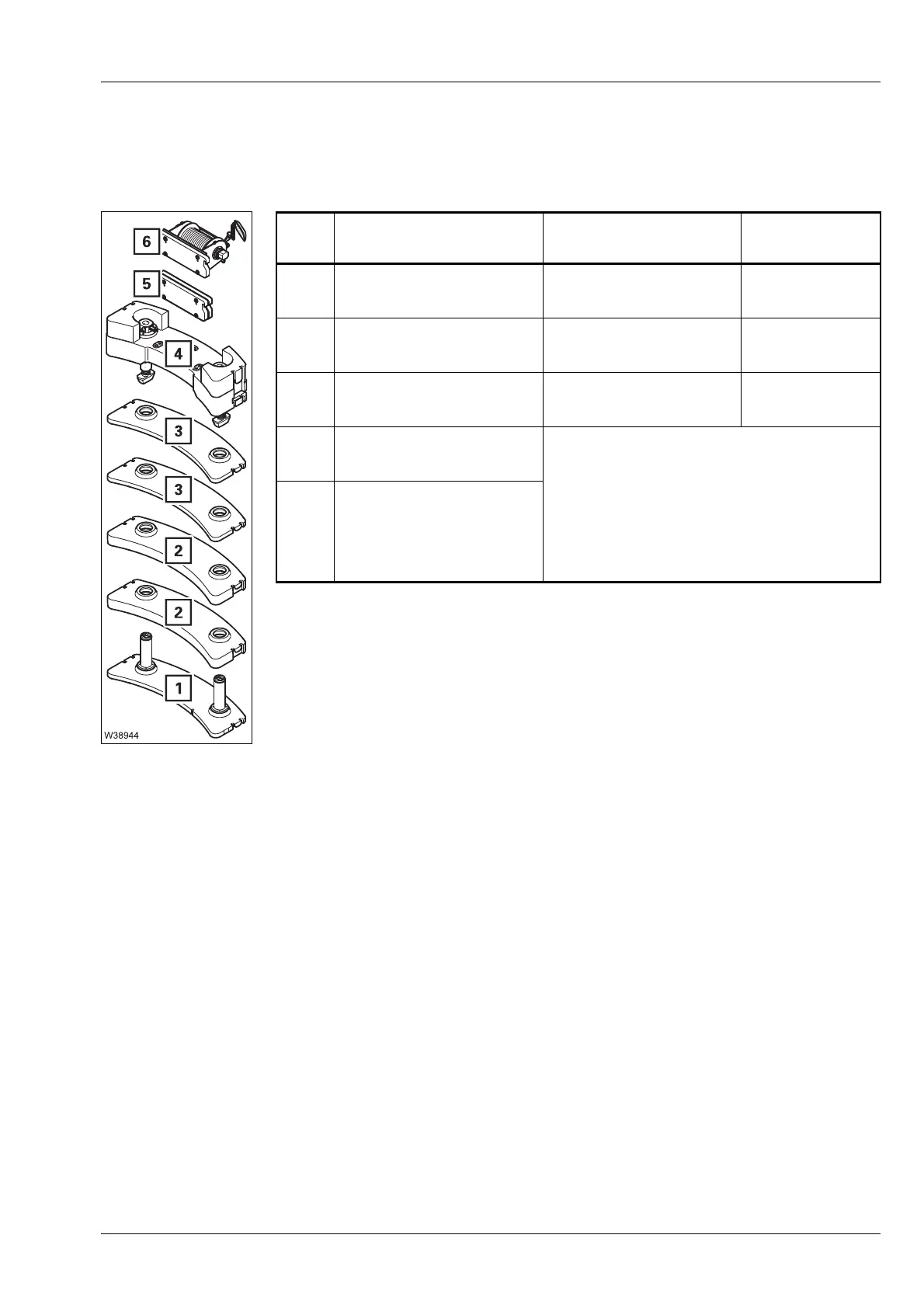

Counterweight – version A
s
Item Designation
Length x width x
height in m (ft)
Weight
in kg
1)
(lbs)
1 1 t base plate
0.96 x 2.55 x 0.57
(3.15 x 8.40 x 1.87)
1,050
(2,315)
2 2t section
0.96 x 2.55 x 0.25
(3.15 x 8.40 x 0.82
2,100
(4,630)
3 1t section
0.96 x 2.55 x 0.20
(3.15 x 8.40 x 0.65)
1,050
(2,315)
4 5.6 t section
Fixed on the turntable
5
6
0.5 t section (2x)
or
Auxiliary hoist with 0.5 t
section
1)
There may be deviations of up to ± 3% due to the manufacturing procedure.
