Transport
7.1 Transport with transport vehicle
7 - 2 3 302 819 en Operating manual
GMK3060
13.12.2018

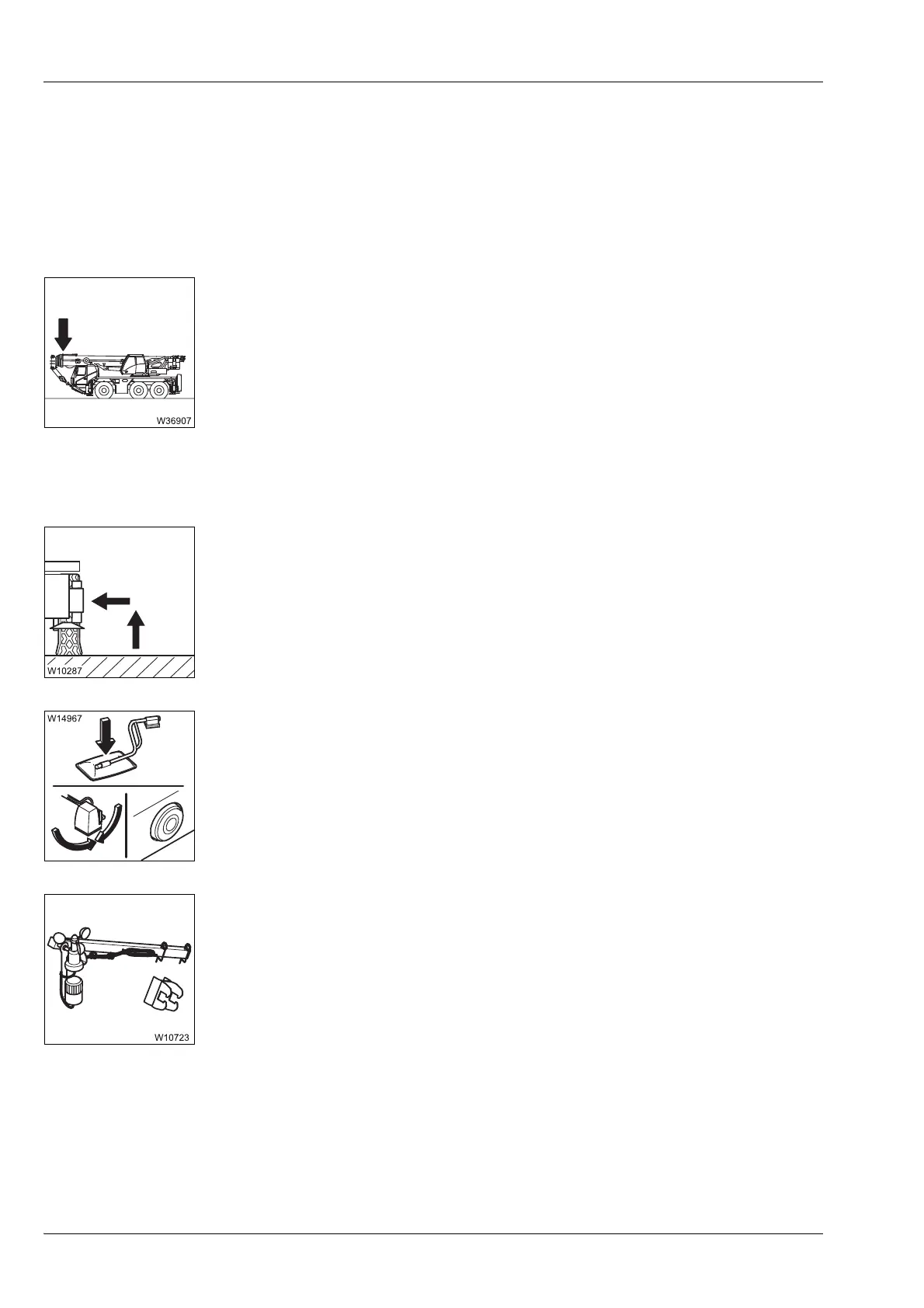

7.1.1 CHECKLIST: checks before transport
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions there!
1. For on-road driving without a dolly
– All telescopic sections are interlocked; the telescoping cylinder is locked
with telescopic section
I.
– The boom must be resting in the boom rest.
– The slewing gear must be switched off;
à p. 11 - 126.
– The superstructure must be locked
à p. 11 - 18.
– The counterweight must be unrigged according to the driving mode;
à p. 6 - 1, à p. 12 - 51.
2. On the outriggers
– All outrigger beams must be fully retracted and secured to prevent
extension;
à p. 12 - 31.
– The outrigger pads are in the driving position
à p. 12 - 37.
3. All mirrors for crane operation are folded in/removed;
à p. 12 - 105.
All spotlights are switched off and swivelled (if possible) so that no other
drivers will be blinded by reflection;
à p. 11 - 134.
The lighting on the outrigger must be switched off;
à p. 12 - 30.
4. The anemometer and air traffic control light must be removed;
à Anemometer and air traffic control light, p. 12 - 101.
