Crane operation
11.3 MAXbase slewing range type
Operating manual 3 302 819 en 11 - 27
GMK3060
13.12.2018
11.3 MAXbase slewing range type
This slewing range type is available in addition to the Standard slewing range type;
à Permissible slewing ranges and operating positions, p. 11 - 25. You must decide
between the two slewing range types when entering the rigging mode.
Lifting capacity tables with different, variable outrigger spans are available for the
MAXbase slewing range type. These additional lifting capacity tables are supplied
in digital form with the truck crane and can be shown as a diagram on the display
in the crane cab.

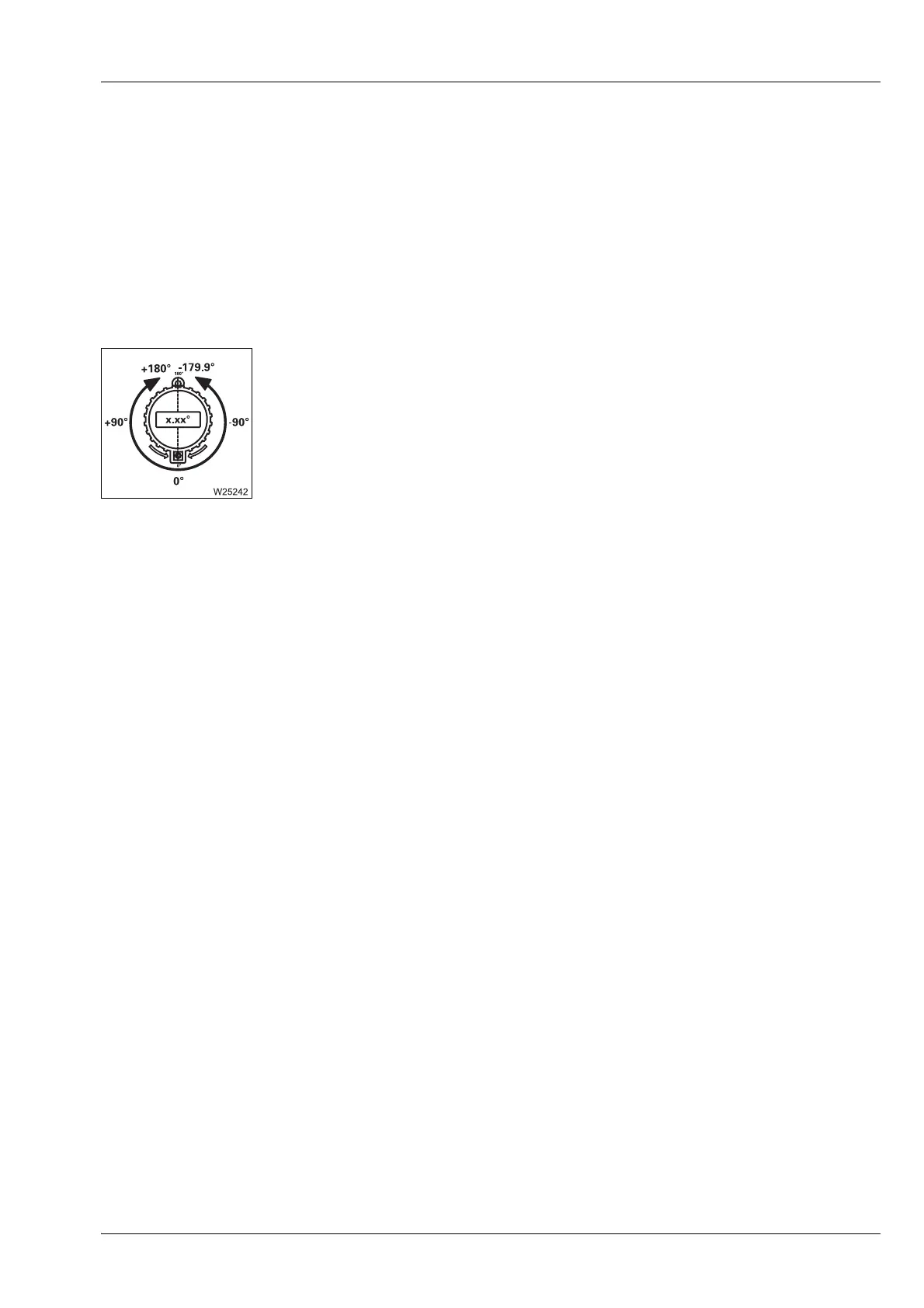

The designation of the slewing angle always relates to the starting point 0° to the
rear. A full turn from this operating position is divided into two semi-circles.
– When slewing clockwise the slewing angle is displayed as a positive value
(0° to +180.0°).
– When slewing anticlockwise the slewing angle is displayed as a negative
value (0° to -179.9°).
